PVA100P6QK W/15 Banner Electronic Components
Part#:PVA100P6QK W/15
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

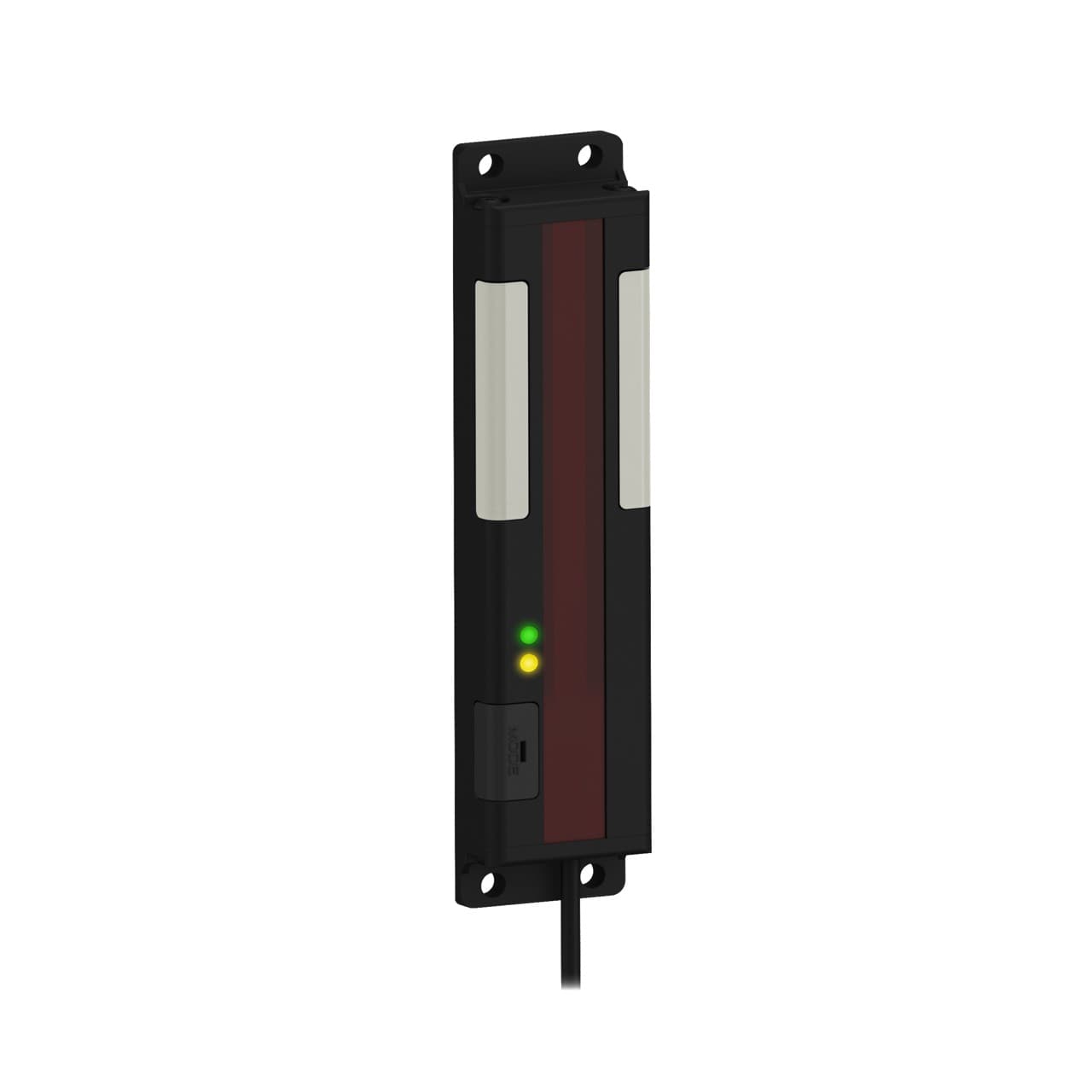

PVA Series: 100 mm Array, E/R and bracket kit; Range: 2 m; Input: 12 to 30 V dc, Output: 1 PNP (on receiver), Euro 15 inch Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the PVA100P6QK W/15 Banner price in the box on the right side or send a quick quote.
Product Details
- Housing Style Flat Mount - Array
- Connection Pigtail QD
- Number of Input Pins/Conductors 4
- Physical Dimensions (LxWxH or DxH mm) 137.8 x 30.0 x 15.0
- Activation Function Optical
- Quick Disconnect Type M12 (Euro)
- Power DC
- Product Size (mm) Other
- Maximum Sensing Distance (mm) 2000
- Sensing Array Length (mm) 100
- IO Link No
- Primary Housing Material Aluminum
- Animation Option 1 Dip-Switch Controlled
- Max Output Response Time (ms) 20
- Primary Housing Color Black
- Sensing Resolution (mm) 35.0
- Sensing Mode (General) Opposed
- Color Technology Standard LED
- Input Type Bimodal (PNP/NPN)
- Max Op. Temperature (°C) 50
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Environmental Rating IP62
- Cable Length (m) 0.38
- Mounting Thread No Thread
- Max Current Color (mA) 62
- Primary Window Material Acrylic Clear
- Modbus RTU No
- Power Source DC
- Number of Colors / Segments 1
- Operation Normally Open/Normally Closed
- Number of Beams 5
- Job Light Green
- Actuation Yes
- Output Type PNP
- Button Operation Momentary
- Feature: Chemical Resistant No
- Sensing Mode (Detailed) Emitter/Receiver Pair
- Supply Voltage 12-30 V dc
- Beam Spacing (mm) 25.0
- Pro-Editor Compatible (Discrete) No
- Feature: Audible No
- Wireless No
- Color Option 1 Green
- Array Length (mm) 100.0
- NEMA Type and UL Type Rating NEMA 2
- Feature: Hazardous Area No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents PVA100P6QK W/15 Specs
