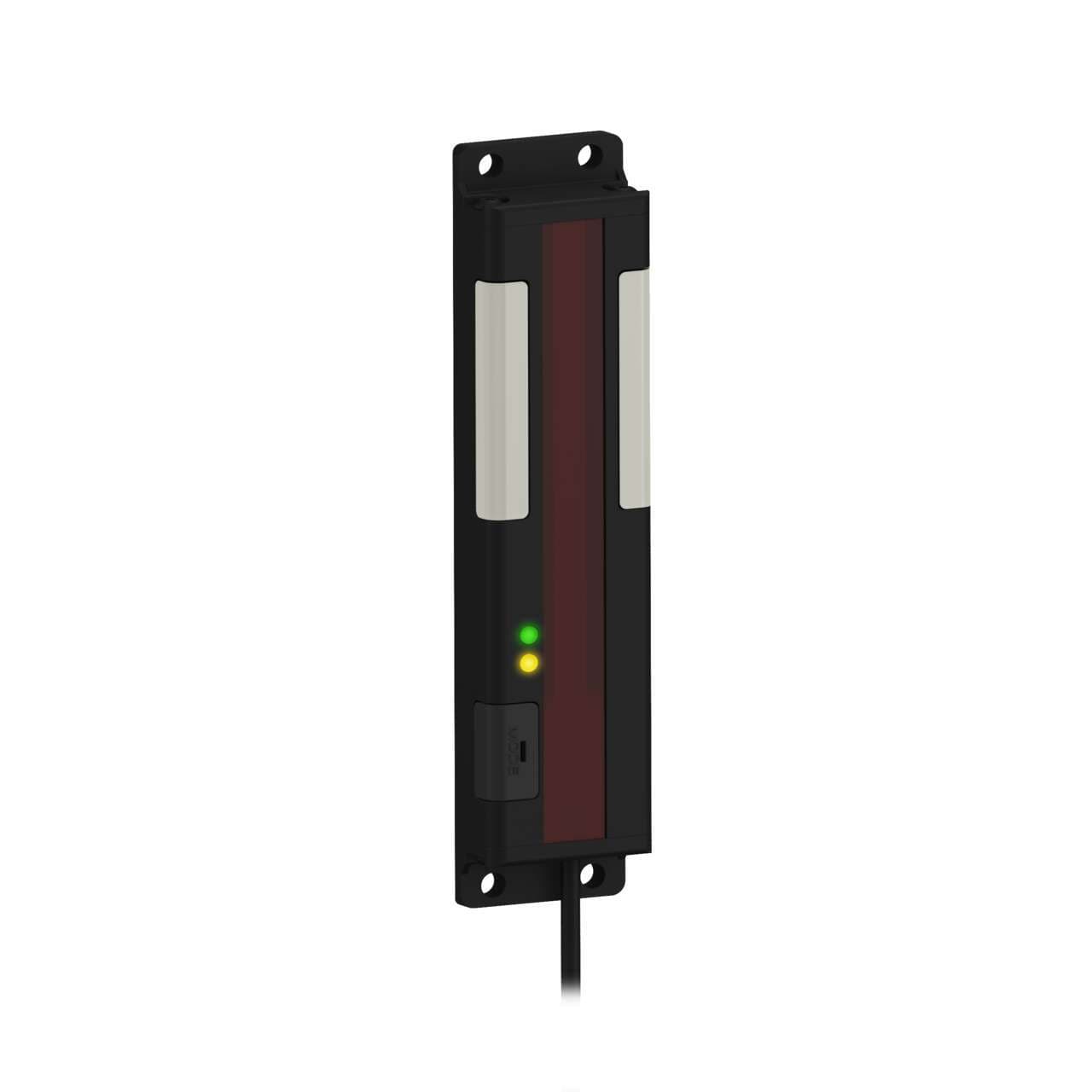

PVA100N6R Banner Optical Sensors
Part#:PVA100N6R
Manufacturer:Banner
Alt. Part#:51909
Product Lifecycle:Active
Get a quick Quote!
PVA Series: 100 mm Array - Receiver; Range: 2 m; Input: 12-30 V dc; Output: 1 NPN Programmable for LO/DO; 2 m (6.5 ft) Integral Cable
About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the PVA100N6R Banner price in the box on the right side or send a quick quote.
Product Details
- Weight217.72416 g
- Country Of OriginMX
- Sensing Mode (Detailed) Receiver
- Mounting Thread No Thread
- Number of Input Pins/Conductors 4
- Housing Style Flat Mount - Array
- Product Size (mm) Other
- Max Output Response Time (ms) 20
- Max Op. Temperature (°C) 50
- Job Light Green
- Power Source DC
- Color Technology Standard LED
- Array Length (mm) 100.0
- Primary Housing Color Black
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Sensing Mode (General) Opposed
- Operation Normally Open/Normally Closed
- Physical Dimensions (LxWxH or DxH mm) 137.8 x 30.0 x 15.0
- Actuation Yes
- Connection Cable
- Maximum Sensing Distance (mm) 2000
- Power DC
- Number of Colors / Segments 1
- Supply Voltage 12-30 V dc
- Number of Beams 5
- Feature: Chemical Resistant No
- Primary Housing Material Aluminum
- Color Option 1 Green
- Output Type NPN
- Environmental Rating IP62
- Cable Length (m) 0.5
- Max Current Color (mA) 62
- Sensing Array Length (mm) 100
- Primary Window Material Acrylic Clear
- Activation Function Optical
- Animation Option 1 Dip-Switch Controlled
- Input Type Bimodal (PNP/NPN)
- Pro-Editor Compatible (Discrete) No
- IO Link No
- Beam Spacing (mm) 25.0
- Feature: Audible No
- NEMA Type and UL Type Rating NEMA 2
- Modbus RTU No
- Feature: Quick Disconnect No
- Button Operation Momentary
- Feature: Hazardous Area No
- Wireless No
- Sensing Resolution (mm) 35.0
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
PVA100N6R Description
Banner Engineering PVA100N6R is a photo-electric array sensor designed for precise object detection and measurement tasks. This sensor operates within an ambient air temperature of up to +50°C and features a net height of 15 mm. It comes pre-wired with a 2m pigtail that terminates with a 4-pin M12 connector, ensuring easy integration into various systems. The sensor's dimensions include a 100mm array length, a net width of 30 mm, and a net depth of 138 mm, housed in a durable aluminum casing with an acrylic window for sensor protection. It offers a degree of protection rated at IP62 NEMA 2, suitable for certain indoor applications. The PVA100N6R operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc, and has a rectangular shape. It is capable of sensing objects up to 2m away, with a 25mm beam spacing/pitch and emits green light for detection purposes. The operating modes available are NO (Normally Open) and NC (Normally Closed), and it features 1 x digital output (NPN transistor) for signal processing. The current consumption of this sensor is 62mA / 0.062 A, making it a practical choice for various automation tasks.
