DELSEF-81D Banner Cordsets

Banner DELSEF-81D Cordset: Double Ended LS-Custom to M12; 12-pin Straight Female; 8-pin Straight Female; 0.3 m 8x22 Yellow PVC Jacket; PVC Black; Nickel-Plated Brass Coupling Nuts
Banner

Part#:DELSEF-81D

Manufacturer:Banner

Alt. Part#:93053

Product Lifecycle:Active

Get a quick Quote!

Cordset: Double Ended LS-Custom to M12; 12-pin Straight Female; 8-pin Straight Female; 0.3 m 8x22 Yellow PVC Jacket; PVC Black; Nickel-Plated Brass Coupling Nuts

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DELSEF-81D Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight40.82328 g
  • Country Of OriginTW
  • Shield/No Shield
    No Shield
  • Primary Gender
    Female
  • Coupling Material/Color
    Custom
  • Secondary Connector Type
    EURO
  • Trunk Length (m)
    No Trunk
  • Primary Connector Type
    LS-Custom
  • Connector Body Material/Color
    PVC Black
  • IP Rating
    IP67
  • Feature: Hazardous Area
    No
  • Cordset Length (m)
    0.3
  • Primary Coupling Method
    EZS-LS
  • Secondary Coupling Method
    M12 Single Key
  • Number of Contacts
    12
  • Primary Orientation
    Straight
  • Secondary Orientation
    Straight
  • Cable Jacket Color
    Yellow
  • Maximum Temp. (°C)
    55
  • Primary Number of Conductors
    8
  • Outside Cable Diameter (mm)
    6
  • Minimum Temp. (°C)
    -20
  • Secondary Gender
    Female
  • Cable Jacket Material
    PVC
  • Current Rating (A)
    2.0
  • Primary AWG
    22
  • Number of Connectors
    2
  • Voltage Rating (V)
    60 V ac/75 V dc
  • Secondary AWG
    22
  • Secondary Number of Conductors
    8
  • Oil/Grease Resistant
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

DELSEF-81D Description

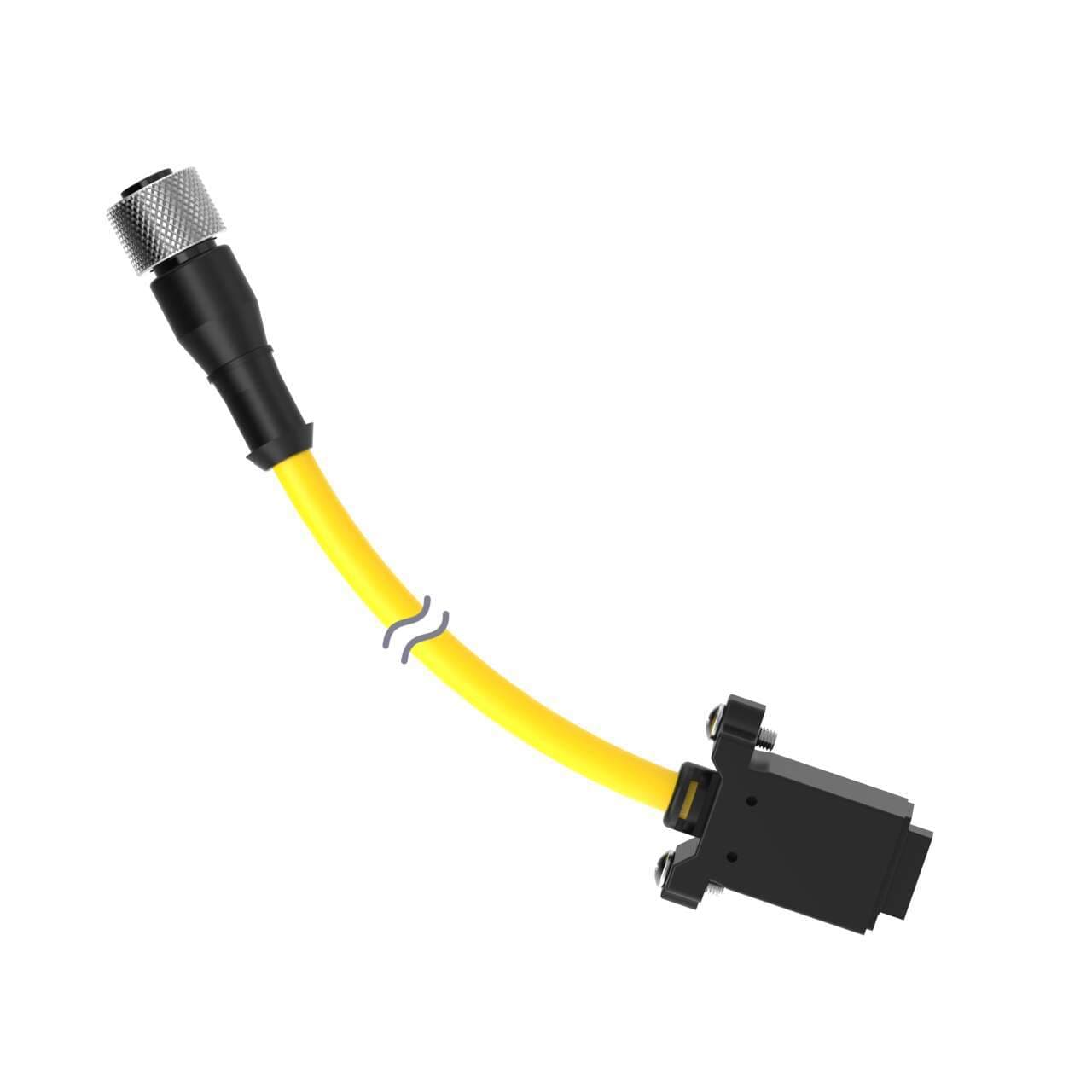

Banner Engineering DELSEF-81D is a pre-assembled cable/cordset designed with a double-ended configuration, featuring an 8-pin LS female connector and an 8-pin Euro-style M12 female connector. This part is constructed from nickel-plated brass coupling nuts and PVC cable, ensuring durability. It operates within an ambient air temperature range of -20 to +55°C and offers a degree of protection rated at IP67, making it suitable for various industrial environments. The cable has a diameter of 6mm and a length of 1ft (300mm), with yellow sheathing for visibility. It is rated for 60Vac and 75Vdc, accommodating a broad range of power supply requirements.
