DELS-110.5E Banner Cordsets
Part#:DELS-110.5E
Manufacturer:Banner
Alt. Part#:97397
Product Lifecycle:Active
Get a quick Quote!
Cordset: Double Ended LS-Custom; 12-pin Straight Female; 12-pin Straight Female; 0.15 m 11x24 Yellow PVC Jacket; PVC Black
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DELS-110.5E Banner price in the box on the right side or send a quick quote.
Product Details
- Weight27.21552 g
- Country Of OriginTW
- Outside Cable Diameter (mm) 6
- IP Rating IP67
- Secondary Number of Conductors 11
- Connector Body Material/Color PVC Black
- Primary Connector Type LS-Custom
- Secondary Connector Type LS-Custom
- Trunk Length (m) No Trunk
- Primary Coupling Method EZS-LS
- Secondary AWG 24
- Number of Contacts 12
- Shield/No Shield No Shield
- Secondary Orientation Straight
- Number of Connectors 2
- Minimum Temp. (°C) -20
- Secondary Coupling Method EZS-LS
- Cable Jacket Color Yellow
- Current Rating (A) 2.0
- Primary Number of Conductors 11
- Cordset Length (m) 0.07
- Primary Orientation Straight
- Oil/Grease Resistant No
- Cable Jacket Material PVC
- Voltage Rating (V) 60 V ac/75 V dc
- Secondary Gender Female
- Maximum Temp. (°C) 55
- Primary AWG 24
- Coupling Material/Color Custom
- Primary Gender Female
- Feature: Hazardous Area No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DELS-110.5E Description

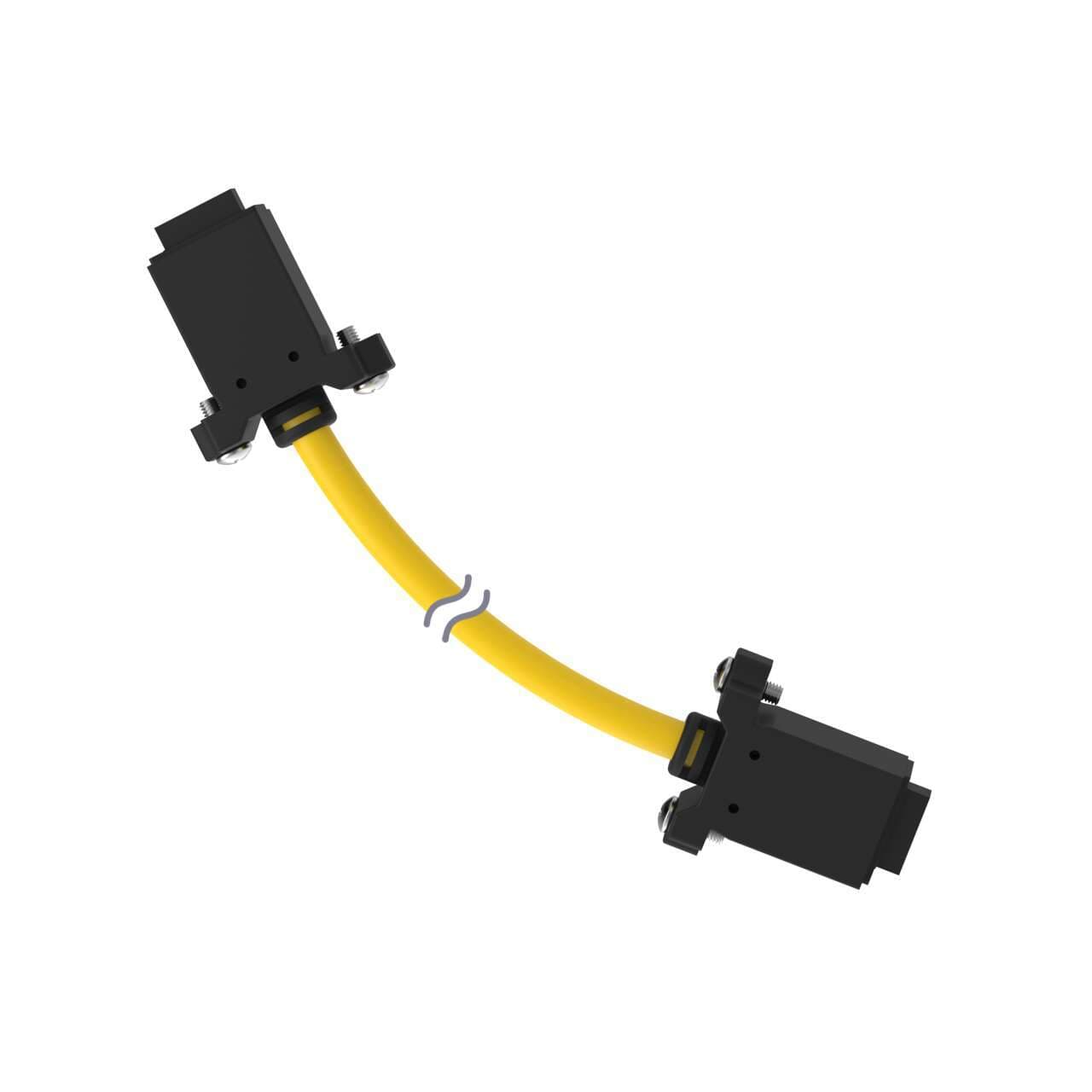

Banner Engineering DELS-110.5E is a pre-assembled, double-ended cable or cordset designed with PVC material and yellow sheathing. It features 2 x 11-pin LS female connectors for connections. The cable has a diameter of 6mm and a length of 70mm. It is built to operate within an ambient air temperature range of -20 to +55 °C and offers a degree of protection rated at IP67. This part is rated for a voltage of 60Vac and 75Vdc.
