DELS-1115E Banner Cordsets
Part#:DELS-1115E
Manufacturer:Banner
Alt. Part#:86947
Product Lifecycle:Active
Get a quick Quote!

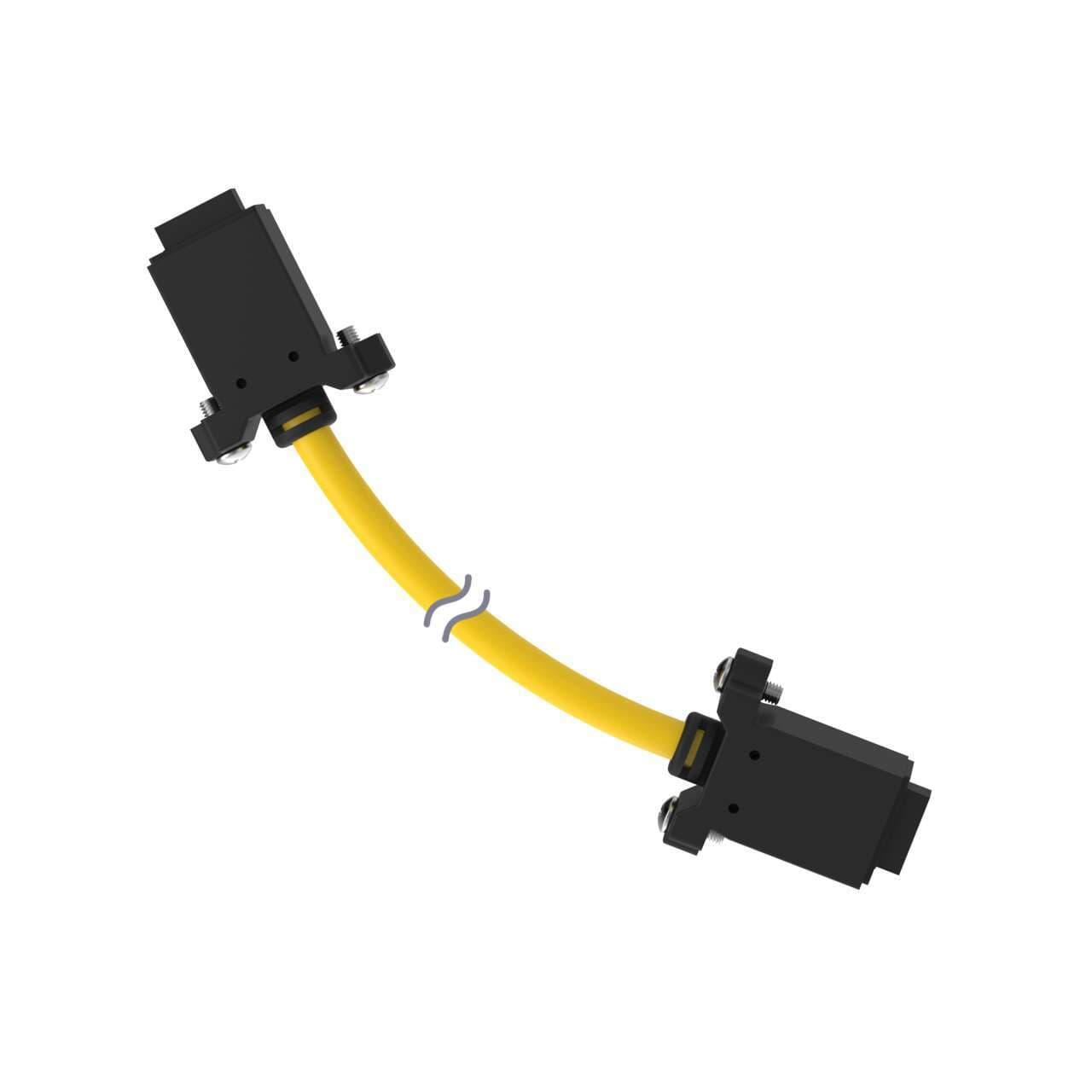

Cordset: Double Ended LS-Custom; 12-pin Straight Female; 12-pin Straight Female; 4.6 m 11x24 Yellow PVC Jacket; PVC Black
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DELS-1115E Banner price in the box on the right side or send a quick quote.
Product Details
- Weight290.29888 g
- Country Of OriginTW
- Shield/No Shield No Shield
- Current Rating (A) 2.0
- Secondary Connector Type LS-Custom
- Cordset Length (m) 4.6
- Minimum Temp. (°C) -20
- Secondary Coupling Method EZS-LS
- Connector Body Material/Color PVC Black
- Primary Connector Type LS-Custom
- IP Rating IP67
- Number of Contacts 12
- Primary Coupling Method EZS-LS
- Secondary AWG 24
- Secondary Orientation Straight
- Cable Jacket Color Yellow
- Primary Orientation Straight
- Cable Jacket Material PVC
- Maximum Temp. (°C) 55
- Primary AWG 24
- Feature: Hazardous Area No
- Outside Cable Diameter (mm) 6
- Voltage Rating (V) 60 V ac/75 V dc
- Secondary Gender Female
- Number of Connectors 2
- Coupling Material/Color Custom
- Primary Number of Conductors 11
- Trunk Length (m) No Trunk
- Primary Gender Female
- Oil/Grease Resistant No
- Secondary Number of Conductors 11
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DELS-1115E Description
Banner Engineering DELS-1115E is a pre-assembled, double-ended cable or cordset designed for various automation applications. It features 2 x 12-pin LS female connectors and is constructed from PVC cable with a yellow sheathing. The cable has a diameter of 6mm and a length of 15.1ft (4.6m). It is rated for a voltage of 60Vac and 75Vdc. The DELS-1115E operates effectively in ambient air temperatures up to +55°C and offers a degree of protection rated at IP67, ensuring its suitability for environments requiring dust and moisture resistance.
