DELSEF-43D Banner Cordsets
Part#:DELSEF-43D
Manufacturer:Banner
Alt. Part#:85964
Product Lifecycle:Active
Get a quick Quote!

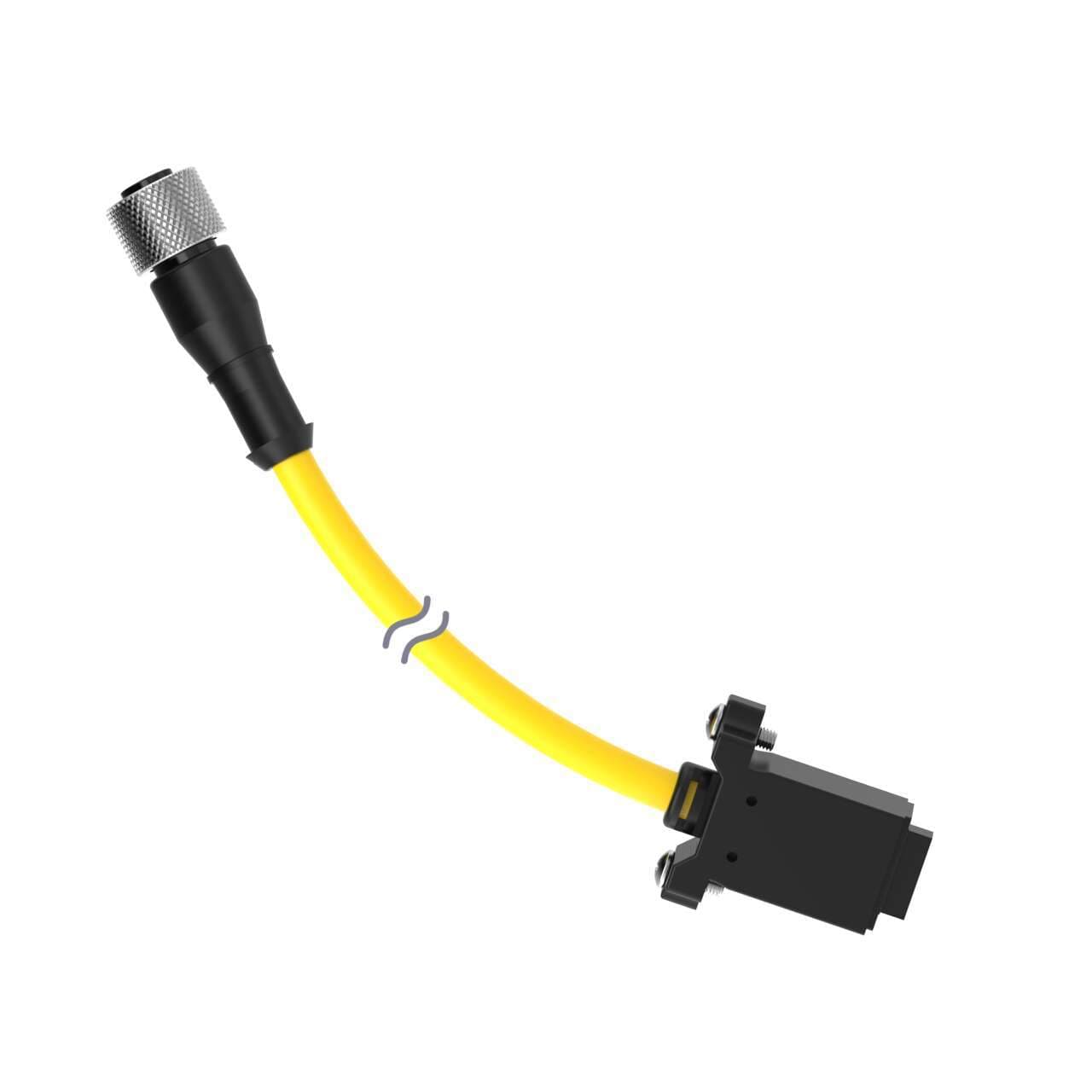

Cordset:Double Ended LS-Custom to M12; 12-pin Straight Female; 4-pin Straight Female; 1 m 5x22 Yellow PVC Jacket; PVC Black; Nickel-Plated Brass Coupling Nuts
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DELSEF-43D Banner price in the box on the right side or send a quick quote.
Product Details
- Weight75.1148352 g
- Country Of OriginTW
- Number of Contacts 12
- Current Rating (A) 2.0
- Secondary Gender Female
- Connector Body Material/Color PVC Black
- Maximum Temp. (°C) 55
- Primary AWG 22
- Cable Jacket Material PVC
- Voltage Rating (V) 60 V ac/75 V dc
- Secondary Number of Conductors 5
- Minimum Temp. (°C) -20
- Secondary Coupling Method M12 Single Key
- Feature: Hazardous Area No
- Cable Jacket Color Yellow
- Coupling Material/Color Custom
- Primary Connector Type LS-Custom
- Trunk Length (m) No Trunk
- Primary Gender Female
- Secondary AWG 22
- Outside Cable Diameter (mm) 6
- Primary Number of Conductors 5
- Number of Connectors 2
- IP Rating IP67
- Secondary Orientation Straight
- Cordset Length (m) 1
- Primary Coupling Method EZS-LS
- Oil/Grease Resistant No
- Shield/No Shield No Shield
- Primary Orientation Straight
- Secondary Connector Type EURO
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DELSEF-43D Description
Banner Engineering DELSEF-43D is a pre-assembled, double-ended cable designed for automation applications, featuring a nickel-plated brass coupling nut and PVC cable sheathing in yellow. This part is equipped with a 5-pin LS female connector and a 5-pin Euro-style M12 female connector, ensuring compatibility with a variety of devices. The cable has a diameter of 6mm and a length of 3.3ft (1m). It operates effectively within an ambient air temperature range of -20 to +55°C and offers a degree of protection rated at IP67, making it suitable for environments requiring dust and water resistance. The DELSEF-43D is rated for a voltage of 60Vac and 75Vdc, accommodating a broad range of power supply requirements.
