DELS-111E Banner Cordsets
Part#:DELS-111E
Manufacturer:Banner
Alt. Part#:86944
Product Lifecycle:Active
Get a quick Quote!

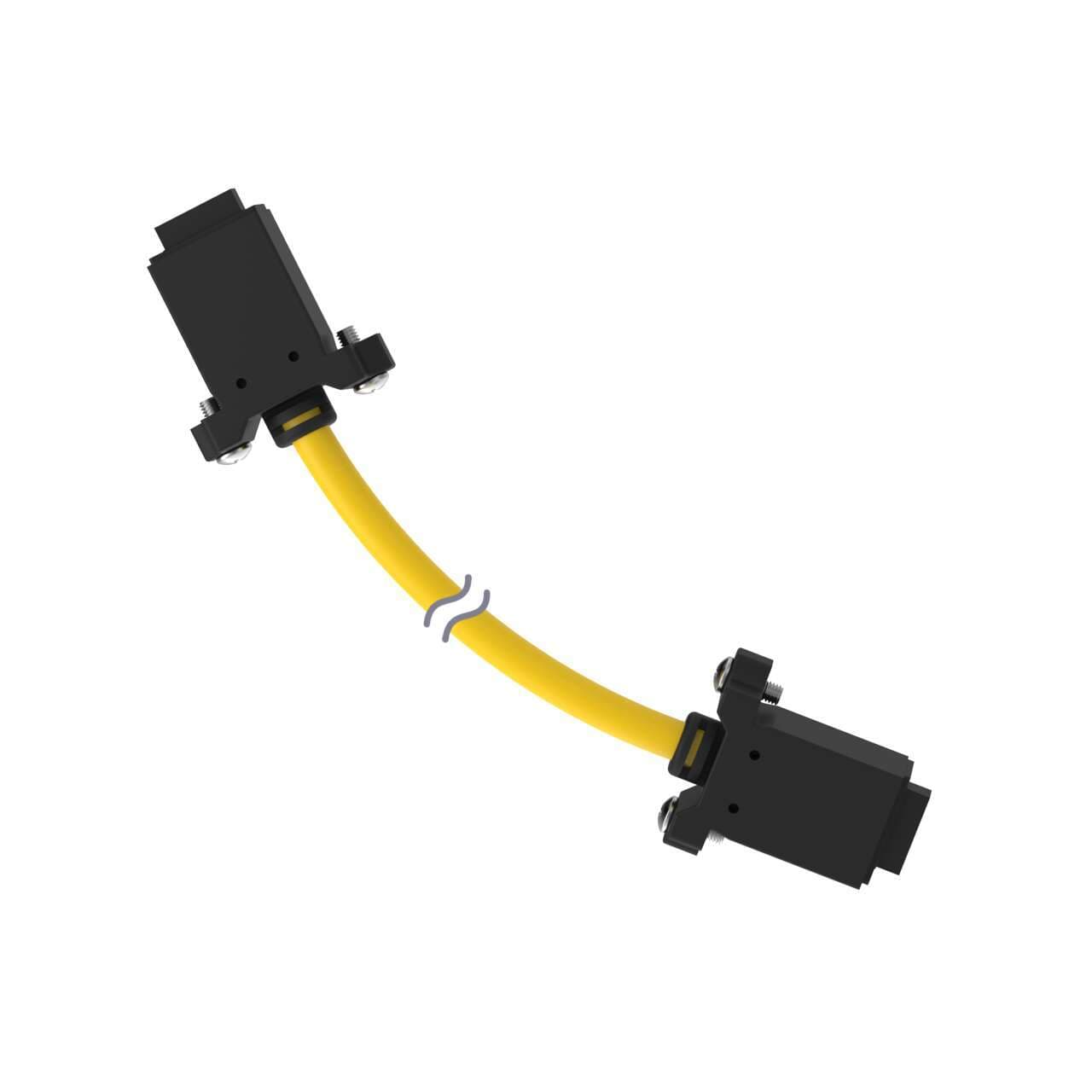

Cordset: Double Ended LS-Custom; 12-pin Straight Female; 12-pin Straight Female; 0.3 m 11x24 Yellow PVC Jacket; PVC Black
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DELS-111E Banner price in the box on the right side or send a quick quote.
Product Details
- Weight40.82328 g
- Country Of OriginTW
- IP Rating IP67
- Primary AWG 24
- Secondary Orientation Straight
- Cable Jacket Color Yellow
- Number of Connectors 2
- Primary Number of Conductors 11
- Connector Body Material/Color PVC Black
- Shield/No Shield No Shield
- Primary Gender Female
- Coupling Material/Color Custom
- Primary Orientation Straight
- Trunk Length (m) No Trunk
- Primary Connector Type LS-Custom
- Oil/Grease Resistant No
- Current Rating (A) 2.0
- Secondary Gender Female
- Secondary Connector Type LS-Custom
- Cordset Length (m) 0.3
- Minimum Temp. (°C) -20
- Feature: Hazardous Area No
- Maximum Temp. (°C) 55
- Secondary Coupling Method EZS-LS
- Cable Jacket Material PVC
- Primary Coupling Method EZS-LS
- Secondary AWG 24
- Outside Cable Diameter (mm) 6
- Number of Contacts 12
- Voltage Rating (V) 60 V ac/75 V dc
- Secondary Number of Conductors 11
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DELS-111E Description
Banner Engineering DELS-111E is a pre-assembled, double-ended cable or cordset designed with PVC material and yellow sheathing. It features 2 x 11-pin LS female connectors for connection, with a cable diameter of 6mm and a length of 1ft / 300mm. This part operates within an ambient air temperature range of -20 to +55°C and offers a degree of protection rated at IP67. It is rated for a voltage of 60Vac and 75Vdc.
