B-TL70DXN9-Q8 Banner Signal Towers
Part#:B-TL70DXN9-Q8
Manufacturer:Banner
Alt. Part#:94230
Product Lifecycle:Active
Get a quick Quote!
TL70 Wireless Base Module 900 MHz; Supports 1-6 Modules; Voltage: 12-30 V dc; Environmental Rating: IP65; 8-pin M12 Integral QD; Black Housing
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the B-TL70DXN9-Q8 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight136.0776 g
- Country Of OriginUS
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Quick Disconnect Type M12 (Euro)
- Physical Dimensions (LxWxH or DxH mm) 70.0 x 47.5
- Wireless Network Node
- Power Source DC
- Supply Voltage 12-30 V dc
- Environmental Rating IP65
- Wireless Radio Frequency 900 MHz
- Housing Style Segment - Base
- Number of Colors / Segments 1
- Primary Housing Color Black
- Wireless Yes
- Modbus RTU No
- Indication Yes
- Input Type PNP
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Number of Input Pins/Conductors 8
- Storage Temp (°C) -40 to 70
- IO Link No
- Power DC
- Non-Illuminated Yes
- Color Technology Standard LED
- Max Input Response Time (ms) 180
- Feature: Chemical Resistant No
- Cable Length (m) 0.15
- Product Size (mm) 70
- Min Op. Temperature (°C) -40
- Feature: Audible No
- Mounting Thread M30 x 1.5
- Connection Integral QD
- Feature: Hazardous Area No
- Pro-Editor Compatible (Discrete) No
- Primary Housing Material Polycarbonate
- Max Current Color (mA) 420
- Feature: Quick Disconnect Yes
- Max Op. Temperature (°C) 50
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
B-TL70DXN9-Q8 Description

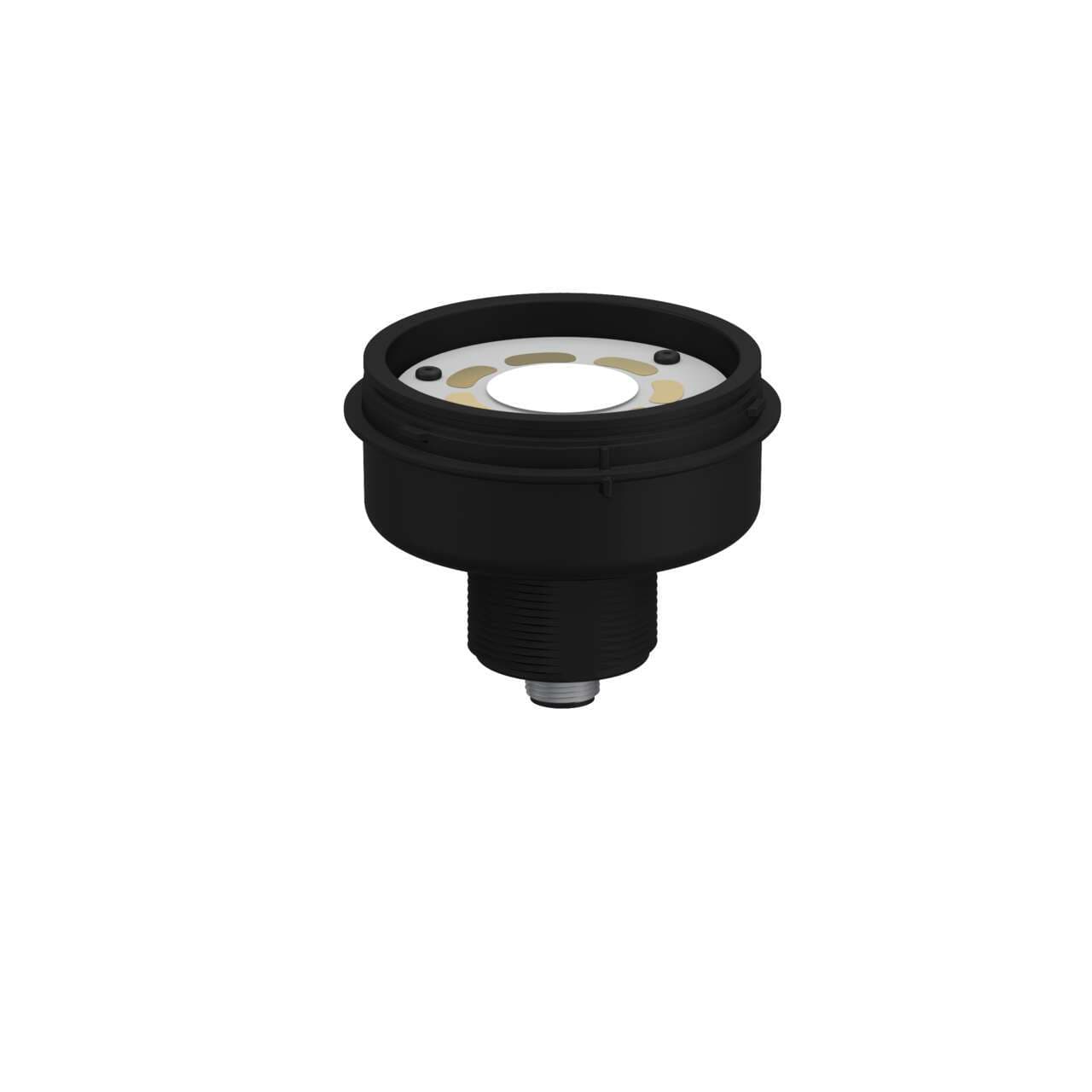

Banner Engineering B-TL70DXN9-Q8 is a base unit belonging to the Modular SureCross series, designed for SureCross Wireless (900MHz) node base segment/module applications with a black polycarbonate housing. This unit supports a wireless architecture that can accommodate 1-7 modules and operates within a supply voltage range of 12Vdc-30Vdc, with 24Vdc nominal. It features a cylindrical shape with a diameter of 70mm / 2-3/4" and is pre-equipped with an 8-pin M12 Euro-style quick disconnect (QD) connector for connectivity. The B-TL70DXN9-Q8 offers an IP65 degree of protection, making it suitable for various environments, and it can be mounted on a surface or base pole with an M30 thread. It operates efficiently in ambient air temperatures ranging from -40°C to +50°C and has a current consumption of 420mA.
