B-TL70-Q5 Banner Signal Towers
Part#:B-TL70-Q5
Manufacturer:Banner
Alt. Part#:92226
Product Lifecycle:Active
In-stock parts: 29
Jun 18, 2025
TL70 Base Module; Supports 1-4 Modules; Voltage: 12-30 V dc; Environmental Rating: IP65; 5-pin M12 Integral QD; Black Housing
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the B-TL70-Q5 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight127.00576 g
- Country Of OriginMX
- Number of Input Pins/Conductors 5
- Feature: Hazardous Area No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Input Type Bimodal (PNP/NPN)
- Min Op. Temperature (°C) -40
- Pro-Editor Compatible (Discrete) No
- Max Current Color (mA) 420
- Primary Housing Color Black
- Mounting Thread M30 x 1.5
- Color Technology Standard LED
- Modbus RTU No
- Number of Colors / Segments 1
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Storage Temp (°C) -40 to 70
- Power DC
- Product Size (mm) 70
- Supply Voltage 12-30 V dc
- Feature: Audible No
- Housing Style Segment - Base
- Cable Length (m) 2
- Connection Integral QD
- Environmental Rating IP65
- Wireless No
- Indication Yes
- Quick Disconnect Type M12 (Euro)
- IO Link No
- Power Source DC
- Max Input Response Time (ms) 180
- Feature: Chemical Resistant No
- Primary Housing Material Polycarbonate
- Non-Illuminated Yes
- Physical Dimensions (LxWxH or DxH mm) 70.0 x 47.5
- Max Op. Temperature (°C) 50
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
B-TL70-Q5 Description

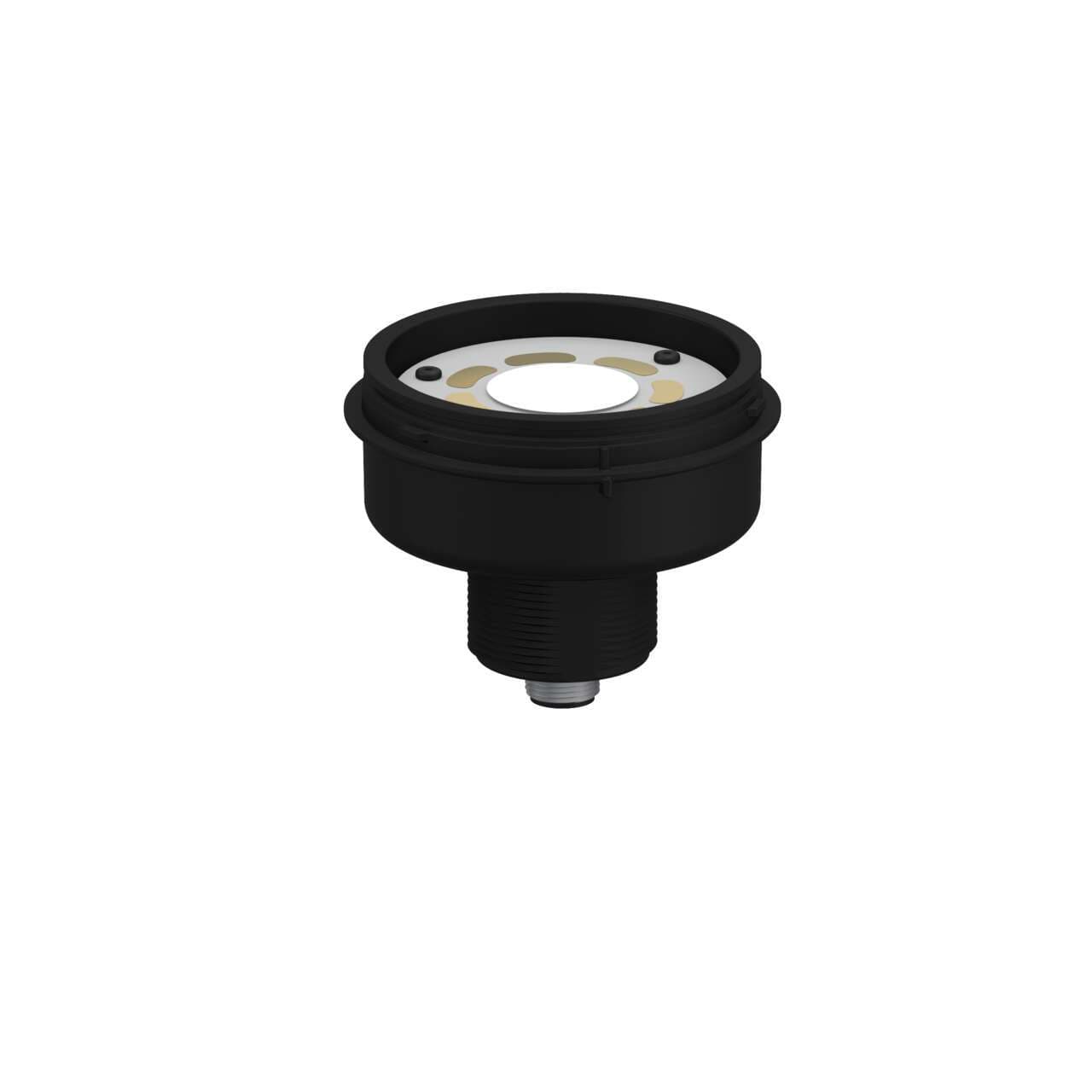

Banner Engineering B-TL70-Q5 is a base unit belonging to the Modular series, designed as a base segment or module with a black polycarbonate housing. It supports 1-4 modules and operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc as the nominal voltage. This unit features a cylindrical shape with a diameter of 70mm / 2-3/4" and is pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity. It offers an IP65 degree of protection, making it suitable for various environments. The B-TL70-Q5 can be mounted via surface or base pole with an M30 thread and operates within an ambient air temperature range of -40°C to +50°C. It includes 4 x digital inputs (12-30Vdc; PNP/NPN) for color control and has a current consumption of 420mA.
