B-TL70-T Banner Signal Towers
Part#:B-TL70-T
Manufacturer:Banner
Alt. Part#:92225
Product Lifecycle:Active
In-stock parts: 20
Jun 18, 2025
TL70 Base Module; Supports 1-6 Modules; Voltage: 12-30 V dc; Environmental Rating: IP65; Terminal Block; Black Housing
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the B-TL70-T Banner price in the box on the right side or send a quick quote.
Product Details
- Weight136.0776 g
- Country Of OriginMX
- Mounting Thread M30 x 1.5
- Input Type Bimodal (PNP/NPN)
- Primary Housing Color Black
- Non-Illuminated Yes
- Max Current Color (mA) 420
- Max Input Response Time (ms) 180
- Storage Temp (°C) -40 to 70
- Power DC
- Connection Terminal
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- IO Link No
- Housing Style Segment - Base
- Physical Dimensions (LxWxH or DxH mm) 70.0 x 47.5
- Pro-Editor Compatible (Discrete) No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Supply Voltage 12-30 V dc
- Feature: Chemical Resistant No
- Indication Yes
- Color Technology Standard LED
- Max Op. Temperature (°C) 50
- Feature: Hazardous Area No
- Power Source DC
- Product Size (mm) 70
- Min Op. Temperature (°C) -40
- Wireless No
- Primary Housing Material Polycarbonate
- Number of Input Pins/Conductors 8
- Feature: Audible No
- Cable Length (m) 2
- Number of Colors / Segments 1
- Environmental Rating IP65
- Modbus RTU No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
B-TL70-T Description

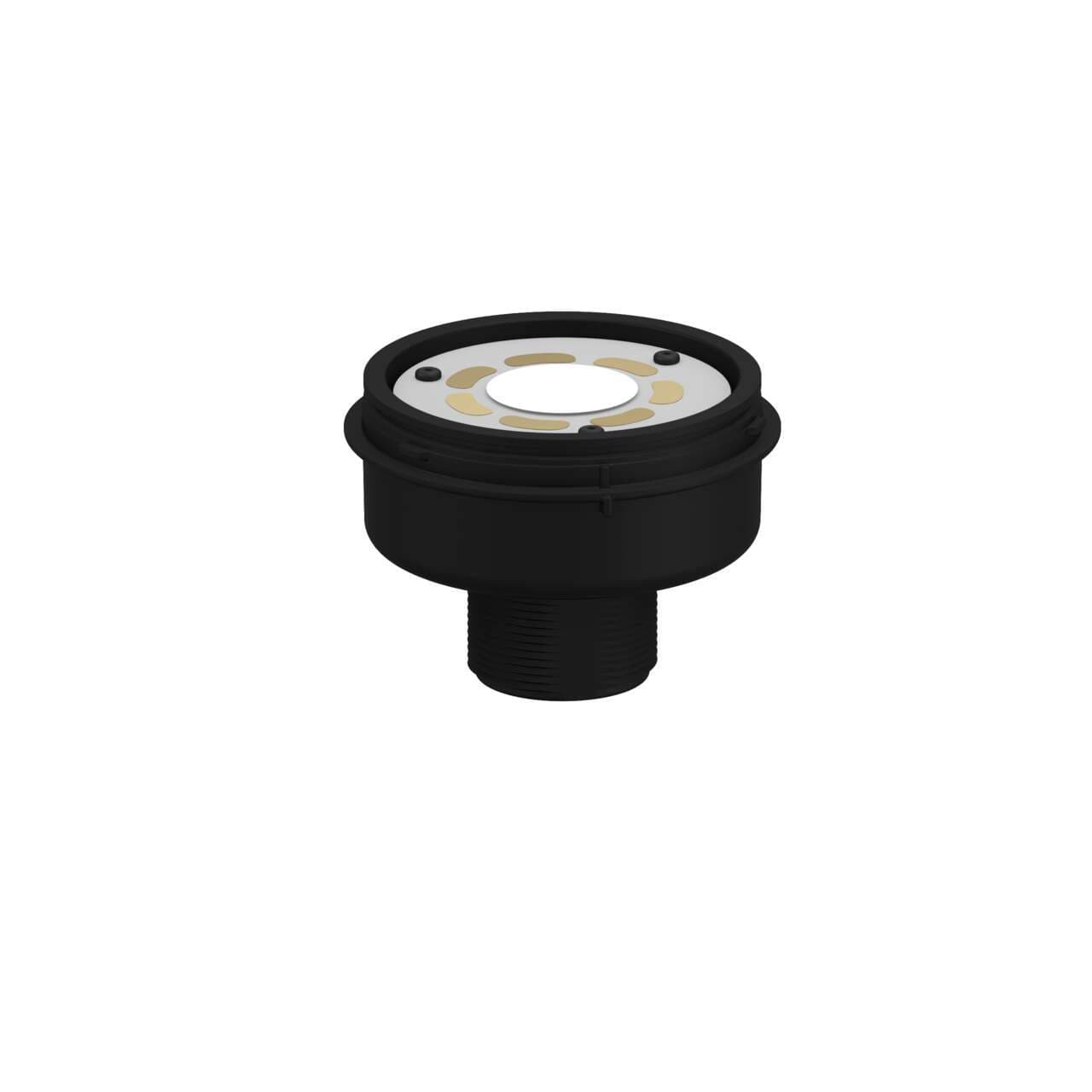

Banner Engineering B-TL70-T is a base unit belonging to the Modular series, designed as a base segment/module with a black polycarbonate housing. It supports the integration of 1-6 modules and operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. This product features a cylindrical shape with a diameter of 70mm (2-3/4" diam.) and employs a screw-clamp terminal connection for secure installation. It is designed for surface or base pole mounting using an M30 thread and offers a degree of protection rated at IP65, making it suitable for various environmental conditions. The B-TL70-T operates efficiently within an ambient air temperature range of -40°C to +50°C. It is equipped with 6 digital inputs (12-30Vdc; PNP/NPN) for color control and has a current consumption of 420mA.
