B-TL70-TC Banner Signal Towers

Banner B-TL70-TC TL70 Base Module; Supports 1-6 Modules; Voltage: 12-30 V dc; Environmental Rating: IP65; Terminal Block; Gray Housing
Banner

Part#:B-TL70-TC

Manufacturer:Banner

Alt. Part#:92232

Product Lifecycle:Active

Get a quick Quote!

TL70 Base Module; Supports 1-6 Modules; Voltage: 12-30 V dc; Environmental Rating: IP65; Terminal Block; Gray Housing

About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the B-TL70-TC Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight136.0776 g
  • Country Of OriginMX
  • Number of Colors / Segments
    1
  • Indication
    Yes
  • Connection
    Terminal
  • Storage Temp (°C)
    -40 to 70
  • Wireless
    No
  • Housing Style
    Segment - Base
  • Product Size (mm)
    70
  • Max Input Response Time (ms)
    180
  • Feature: Audible
    No
  • Power
    DC
  • Supply Voltage
    12-30 V dc
  • Min Op. Temperature (°C)
    -40
  • IO Link
    No
  • Cable Length (m)
    0.15
  • Max Current Color (mA)
    420
  • Max Op. Relative Humidity Non-Condensing (%)
    95% @ 50°C
  • Feature: Chemical Resistant
    No
  • Power Source
    DC
  • Number of Input Pins/Conductors
    8
  • Environmental Rating
    IP65
  • Feature: Quick Disconnect
    No
  • Mounting Thread
    M30 x 1.5
  • Non-Illuminated
    Yes
  • Color Technology
    Standard LED
  • Max Op. Temperature (°C)
    50
  • Pro-Editor Compatible (Discrete)
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Primary Housing Material
    Polycarbonate
  • Physical Dimensions (LxWxH or DxH mm)
    70.0 x 47.5
  • Feature: Hazardous Area
    No
  • Input Type
    Bimodal (PNP/NPN)
  • Primary Housing Color
    Gray
  • Modbus RTU
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

B-TL70-TC Description

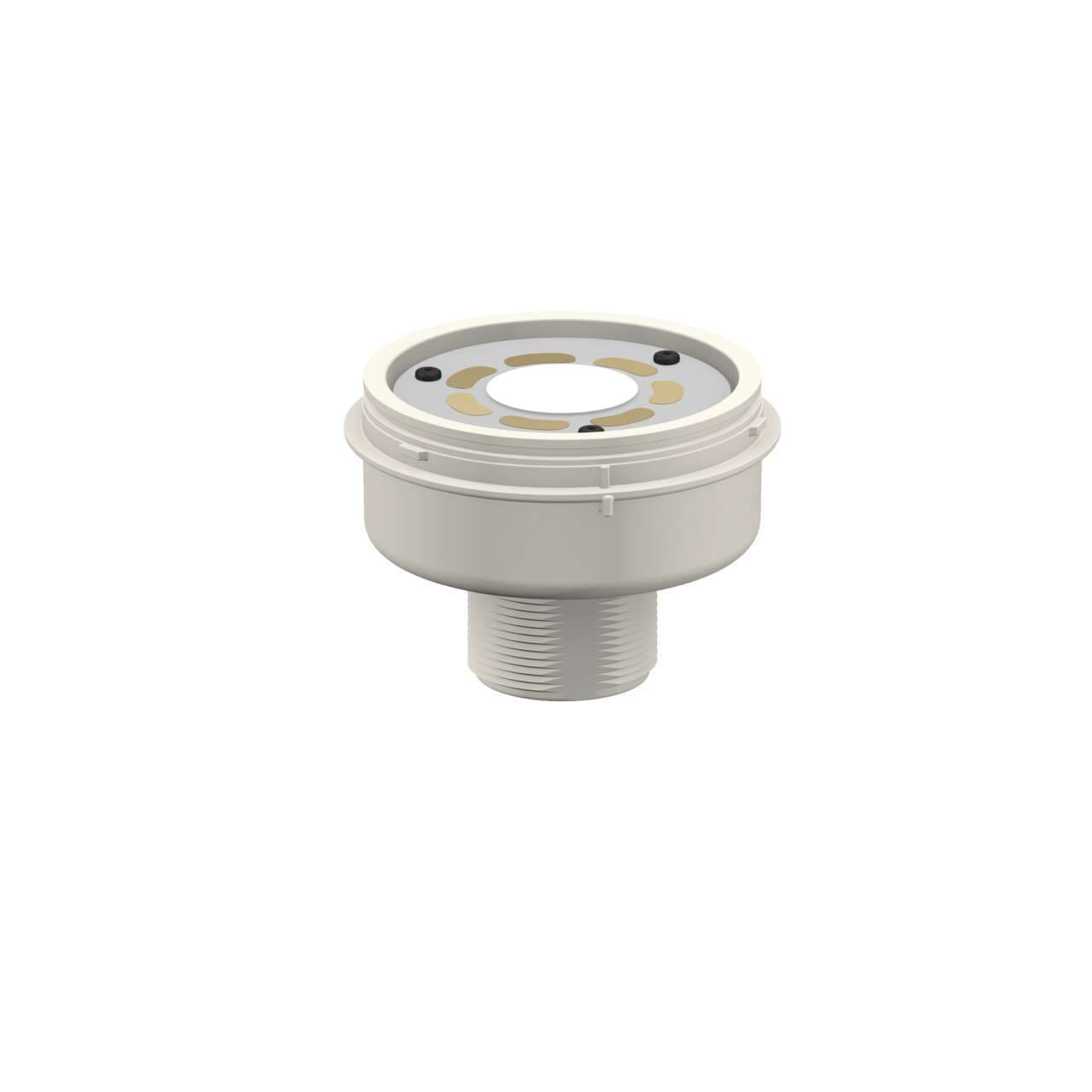

Banner Engineering B-TL70-TC is a base unit belonging to the Modular series, designed as a base segment or module with a gray polycarbonate housing. It supports 1-6 modules and operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The unit features a cylindrical shape with a diameter of 70mm / 2-3/4" and utilizes a screw-clamp terminal connection for installation. It is designed for surface or base pole mounting using an M30 thread and offers a degree of protection rated at IP65, making it suitable for various environments. The B-TL70-TC can operate within an ambient air temperature range of -40°C to +50°C and includes 6 digital inputs (12-30Vdc; PNP/NPN) for color control, with a current consumption of 420mA.

Related documents B-TL70-TC Specs

B-TL70-TC 182215.pdf

1-year warranty
