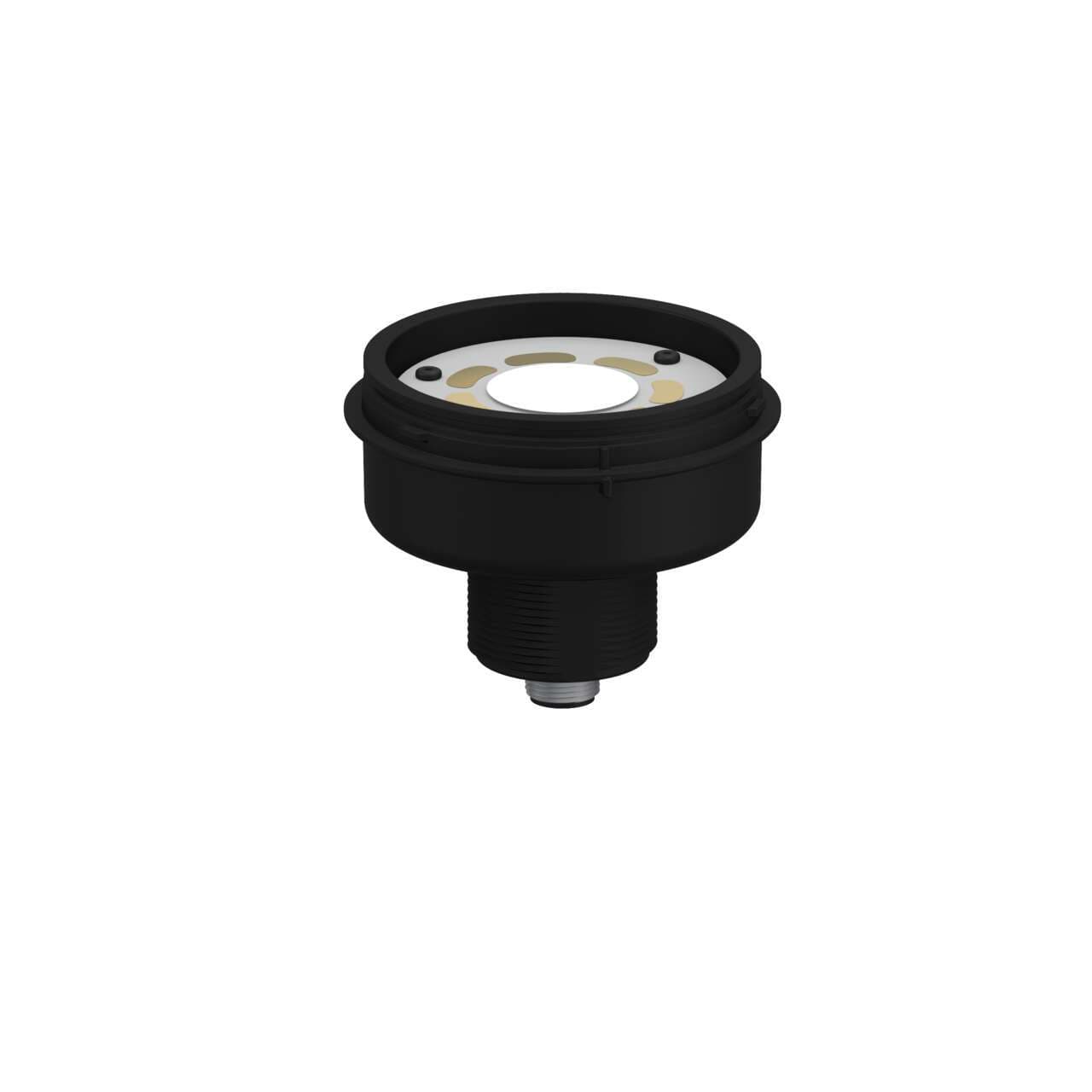

B-TL70-Q8 Banner Signal Towers

Banner B-TL70-Q8 TL70 Base Module; Supports 1-6 Modules; Voltage: 12-30 V dc; Environmental Rating: IP65; 8-pin M12 Integral QD; Black Housing
Banner

Part#:B-TL70-Q8

Manufacturer:Banner

Alt. Part#:92227

Product Lifecycle:Active

Get a quick Quote!

TL70 Base Module; Supports 1-6 Modules; Voltage: 12-30 V dc; Environmental Rating: IP65; 8-pin M12 Integral QD; Black Housing

About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the B-TL70-Q8 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight31.75144 g
  • Country Of OriginMX
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Supply Voltage
    12-30 V dc
  • Feature: Chemical Resistant
    No
  • Primary Housing Material
    Polycarbonate
  • Max Current Color (mA)
    420
  • Feature: Audible
    No
  • Product Size (mm)
    70
  • Physical Dimensions (LxWxH or DxH mm)
    70.0 x 47.5
  • Feature: Hazardous Area
    No
  • Housing Style
    Segment - Base
  • Quick Disconnect Type
    M12 (Euro)
  • Max Op. Relative Humidity Non-Condensing (%)
    95% @ 50°C
  • Color Technology
    Standard LED
  • Environmental Rating
    IP65
  • Number of Colors / Segments
    1
  • Non-Illuminated
    Yes
  • Primary Housing Color
    Black
  • Pro-Editor Compatible (Discrete)
    No
  • Indication
    Yes
  • Input Type
    Bimodal (PNP/NPN)
  • Modbus RTU
    No
  • Power
    DC
  • Connection
    Integral QD
  • Max Op. Temperature (°C)
    50
  • Wireless
    No
  • Power Source
    DC
  • Number of Input Pins/Conductors
    8
  • Min Op. Temperature (°C)
    -40
  • IO Link
    No
  • Mounting Thread
    M30 x 1.5
  • Max Input Response Time (ms)
    180
  • Storage Temp (°C)
    -40 to 70

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

B-TL70-Q8 Description

Banner Engineering B-TL70-Q8 is a base unit belonging to the Modular series, designed as a base segment/module with a black polycarbonate housing. It supports 1-6 modules and features a cylindrical shape with a diameter of 70mm / 2-3/4" diam. This unit operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.) and is pre-equipped with an 8-pin M12 Euro-style QD connector for connectivity. It offers a degree of protection rated at IP65 and can be mounted via surface or base pole with an M30 thread. The B-TL70-Q8 is designed to operate within an ambient air temperature range of -40°C to +50°C and includes 6 x digital inputs (12-30Vdc; PNP/NPN) for color control, with a current consumption of 420mA.

Related documents B-TL70-Q8 Specs

B-TL70-Q8 182215.pdf
