AC/DC Power Supplies

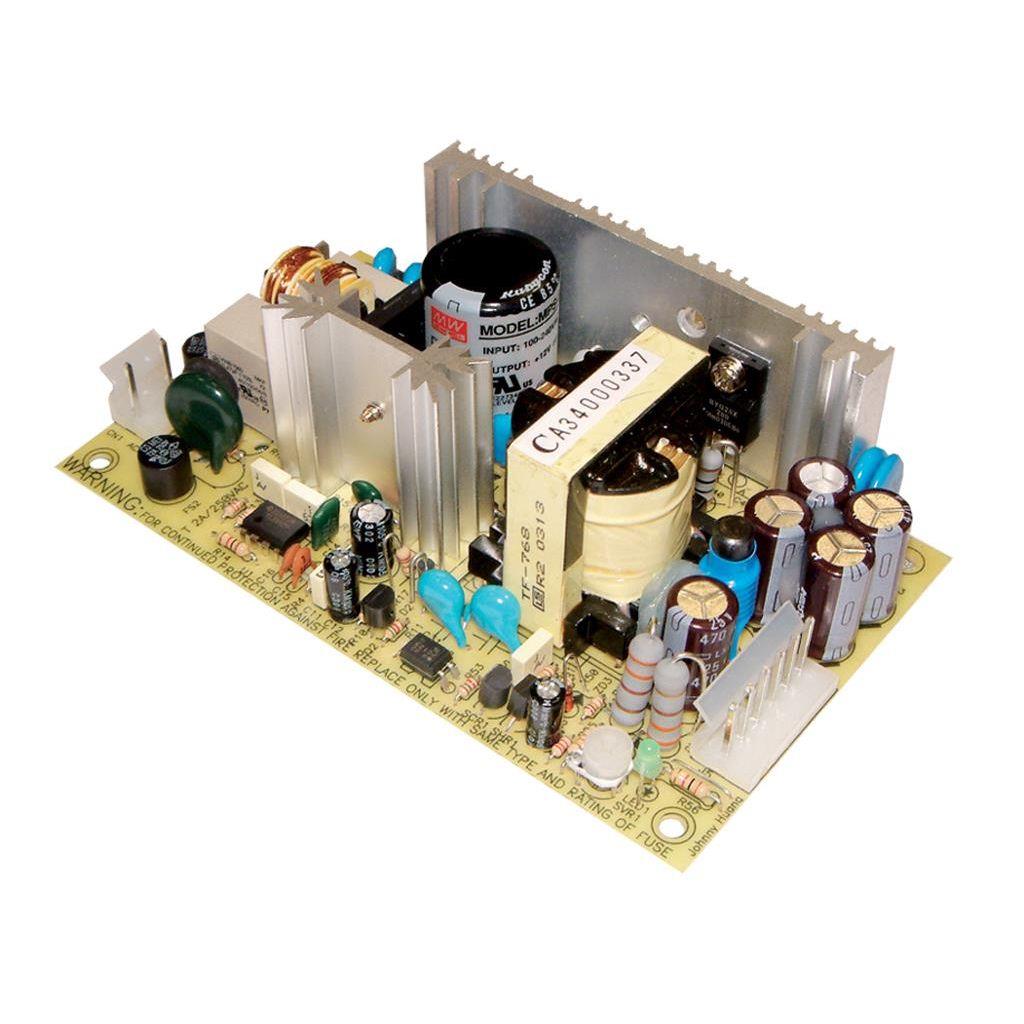

MPS-65-13.5

AC-DC Single output Medical Open frame power supply; Output 13.5Vdc at 4.7A; 2xMOPP; MPS-65-13.5 is succeeded by RPS-65-12.

MEAN WELL

CP20.241-S2

PULS CP20.241-S2 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It has a net width of 48 mm and operates within an ambient air temperature range of -25 to +70°C. The unit exhibits a current consumption of 11A peak max. inrush at 230Vac input and 7A peak max. inrush at 120Vac input. Its efficiency rates are 0.956 at 230Vac input, 0.942 at 120Vac input, and 0.936 at 100Vac input. The dimensions of the CP20.241-S2 are W48mm x H124mm x D127mm. It includes a 450ms start-up delay for 100-230Vac input, with rise times of 145ms and 160ms under specified conditions. The unit is equipped with protection functions including output overvoltage protection and overload/short-circuit protection, and supports series or parallel operation for increased output voltages or power. It is resistant to back-feeding loads up to 35V. Power dissipation/losses are 22.1 W at full output load with 230Vac input and 29.6 W with 120Vac input. The output stage capacitance is 8500 µF. Electrical durability spans from 31,000 to 488,000 hours under various conditions. Ripple is maintained at 50mVpp across a 20Hz to 20MHz range. This AC/DC power supply unit, part of the CP-series, is designed with a 20% power reserve and includes a DC-OK relay contact output. It features push-in spring connections for ease of installation. The supply voltage ranges from 88Vdc to 180Vdc for DC and 85Vac to 264Vac for AC, with a rated current of 20A at 24Vdc. It is suitable for single-phase (1AC) or DC networks, offering a rated power of 480W. The output voltage is adjustable between 24Vdc and 28Vdc, with a 500mV turn-ON overshoot and a hold time of 32ms at 120/230Vac input.

Puls

722757

722757 LUTZE - Switch Mode Power Supply DRAN120-24AL, Single-phase

Lutze

HEP-600-42

AC-DC Single output industrial power supply with PFC; Output 42Vdc at 14.3A; Input-output by terminal block; Withstand up to 10G Vibration

MEAN WELL

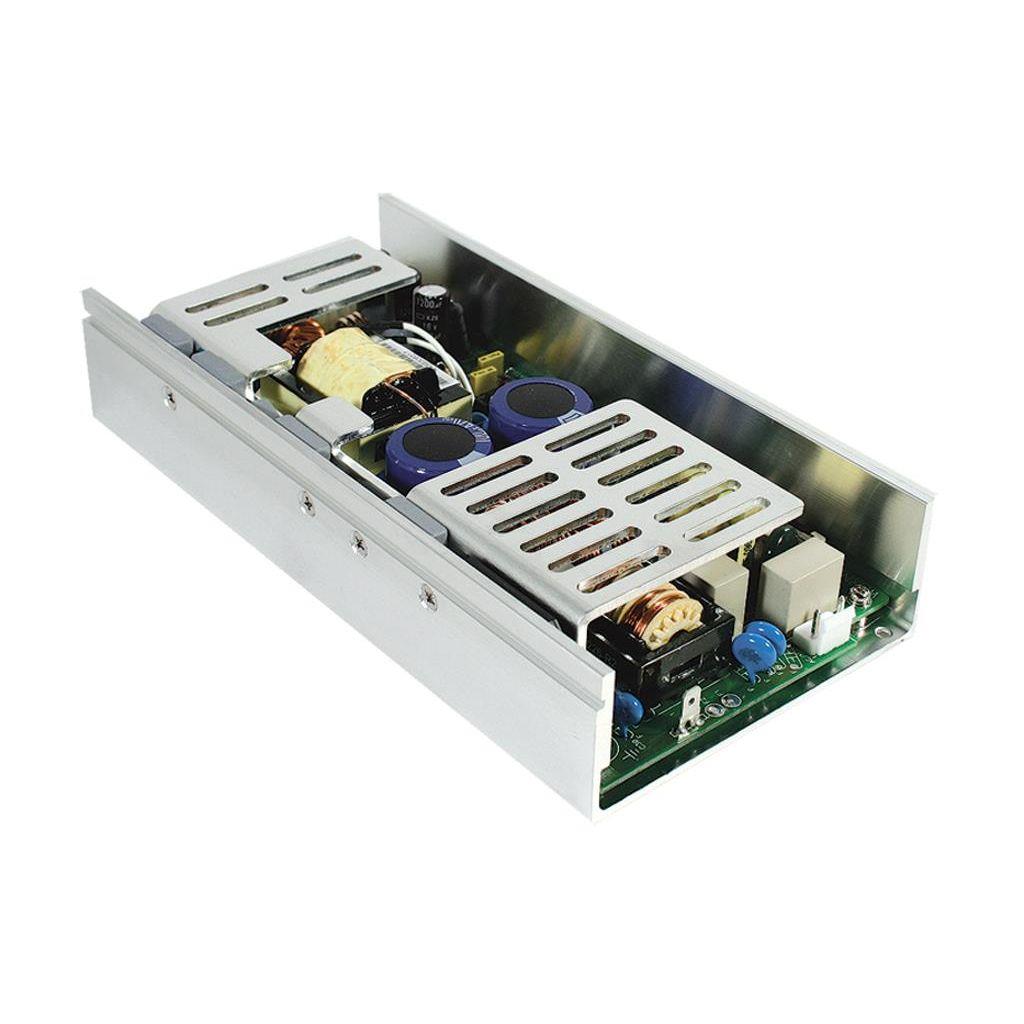

USP-225-3.3

AC-DC Single output power supply; Output 3.3Vdc at 40A; U-bracket low profile format 38mm; USP-225-3.3 is succeeded by UHP-200-3.3.

MEAN WELL

RPT-7503

AC-DC Triple output Medical Open frame power supply; Output 3.3Vdc at 7A +5Vdc at 8A +12Vdc at 1.5A; 2xMOPP

MEAN WELL

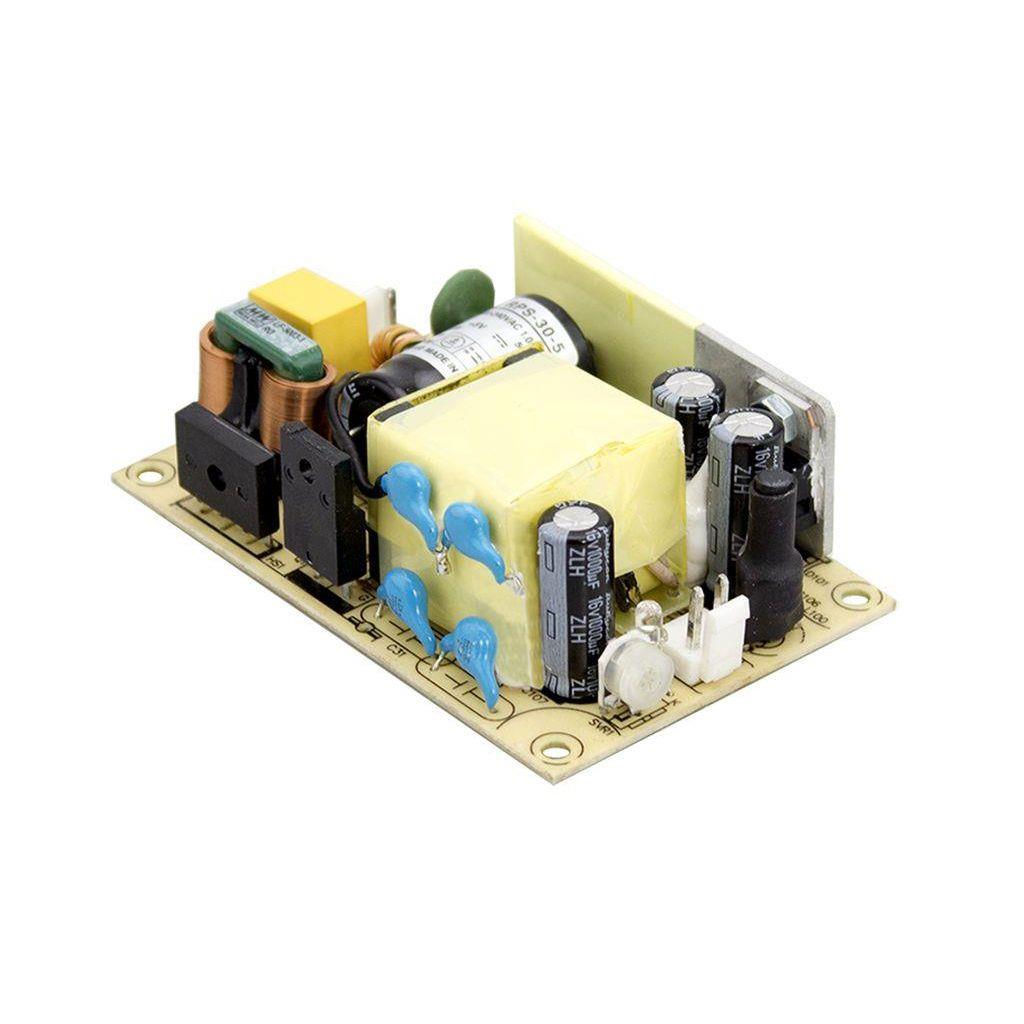

RPS-30-24

AC-DC Single output medical Open frame power supply; Output 24VDC at 1.25A; 2xMOPP

MEAN WELL

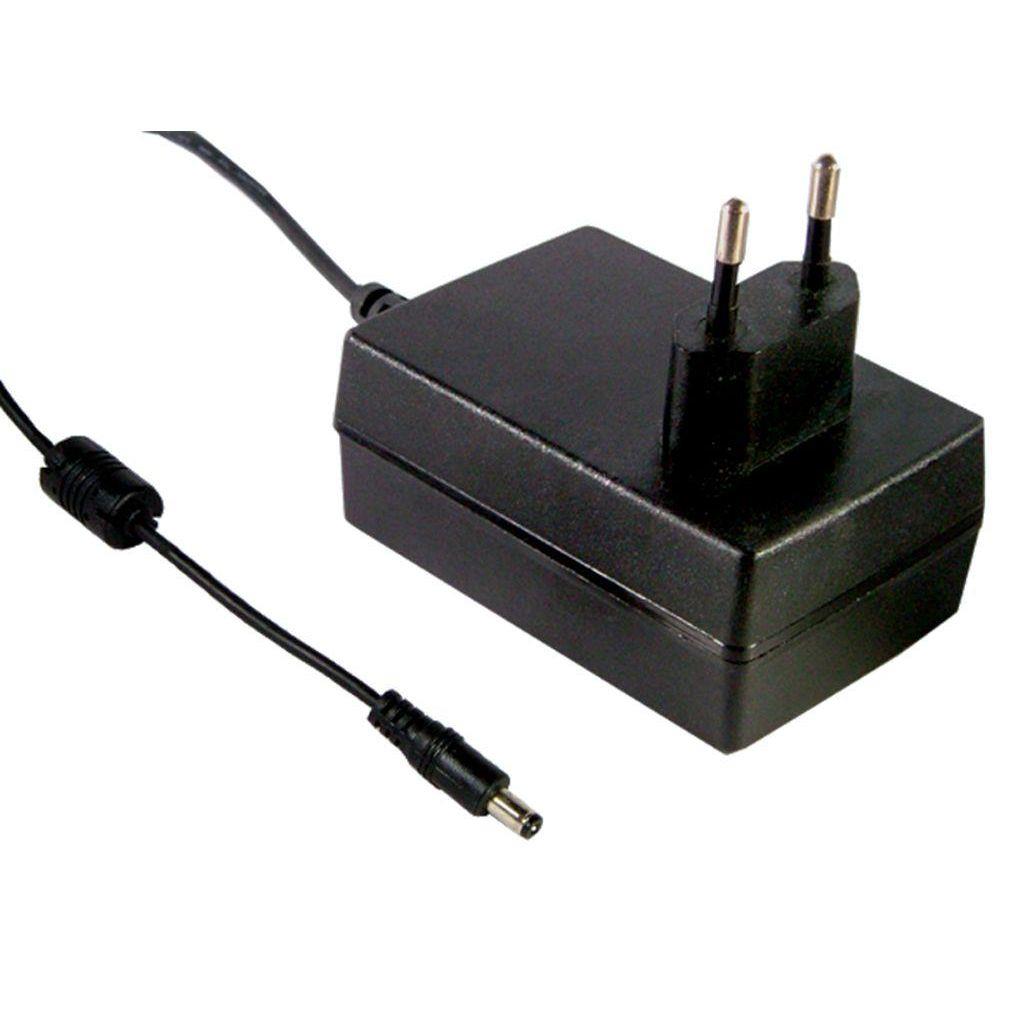

GSC18E-1400

AC-DC Single output wall mount LED power supply (CC) with PFC; Output 13Vdc at 1.4A; 2 pole AC Euro plug; GSC18E-1400 is succeeded by IDLC-25-1050.

MEAN WELL

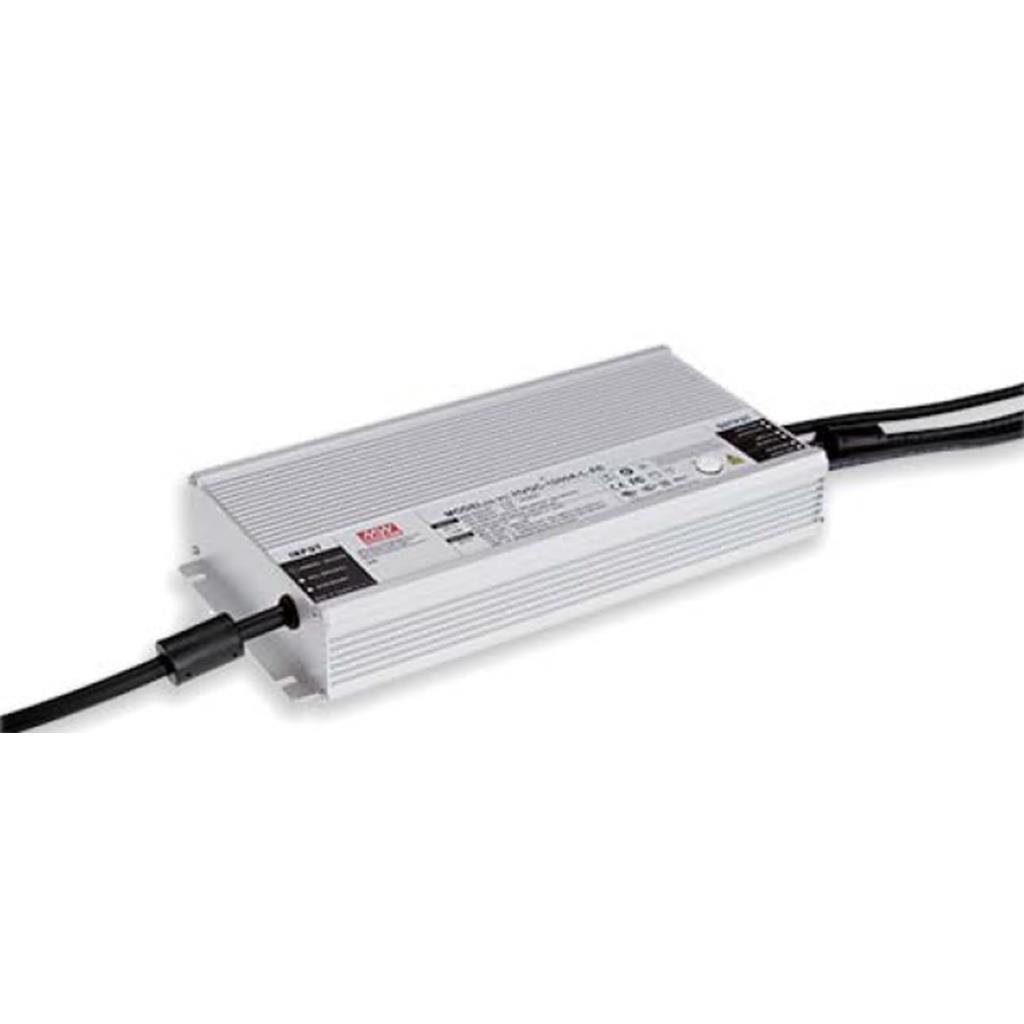

HEP-1000-100WCPM

AC-DC Single output industrial power supply with PFC; Output 100Vdc at 10A; Input-output by waterproof wires; IP67; DC OK signal; Charger with PMBus

MEAN WELL

HEP-600-12

AC-DC Single output industrial power supply with PFC; Output 12Vdc at 40.0A; Input-output by terminal block; Withstand up to 10G Vibration

MEAN WELL

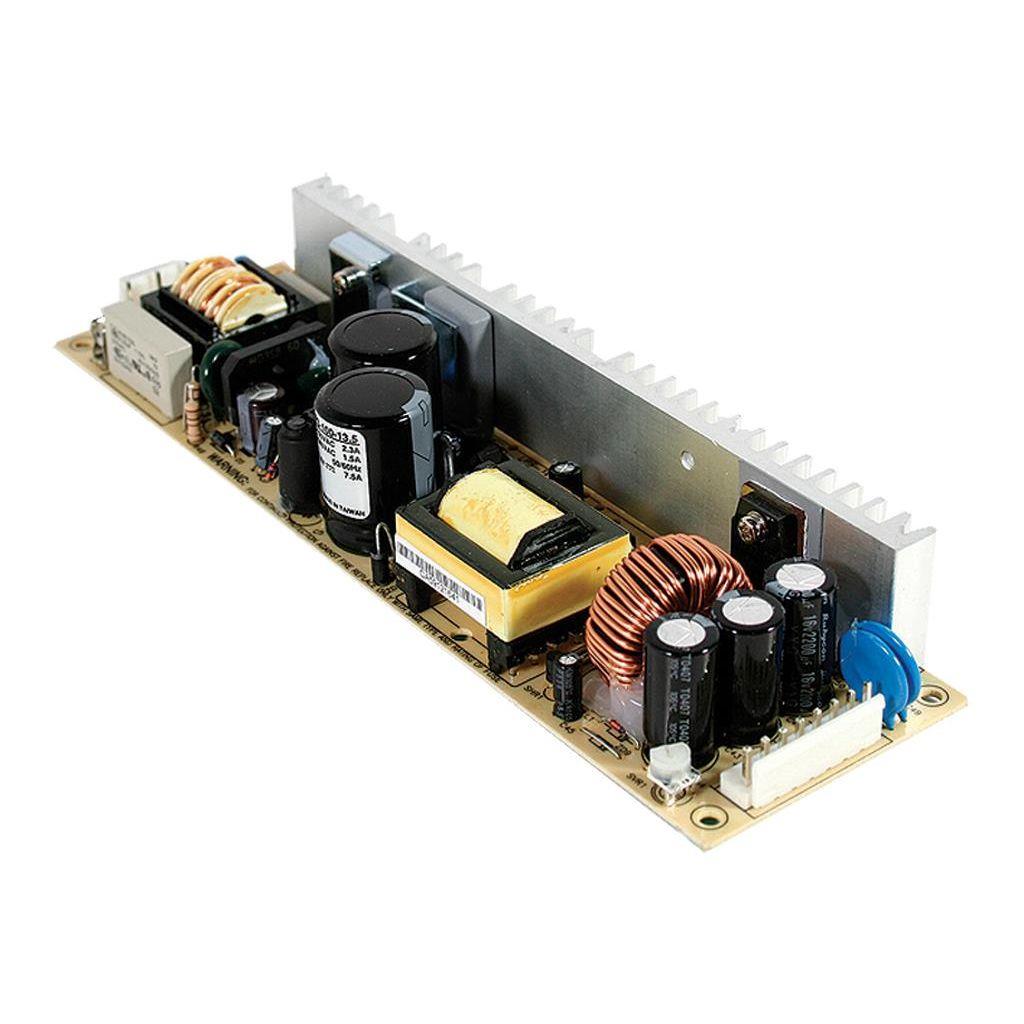

LPS-100-7.5

AC-DC Single output Open frame power supply; Output 7.5Vdc at 13.3A

MEAN WELL

RPS-500-18

AC-DC Open frame Medical power supply with PFC; Output 18Vdc at 27.8A; 2xMOPP

MEAN WELL

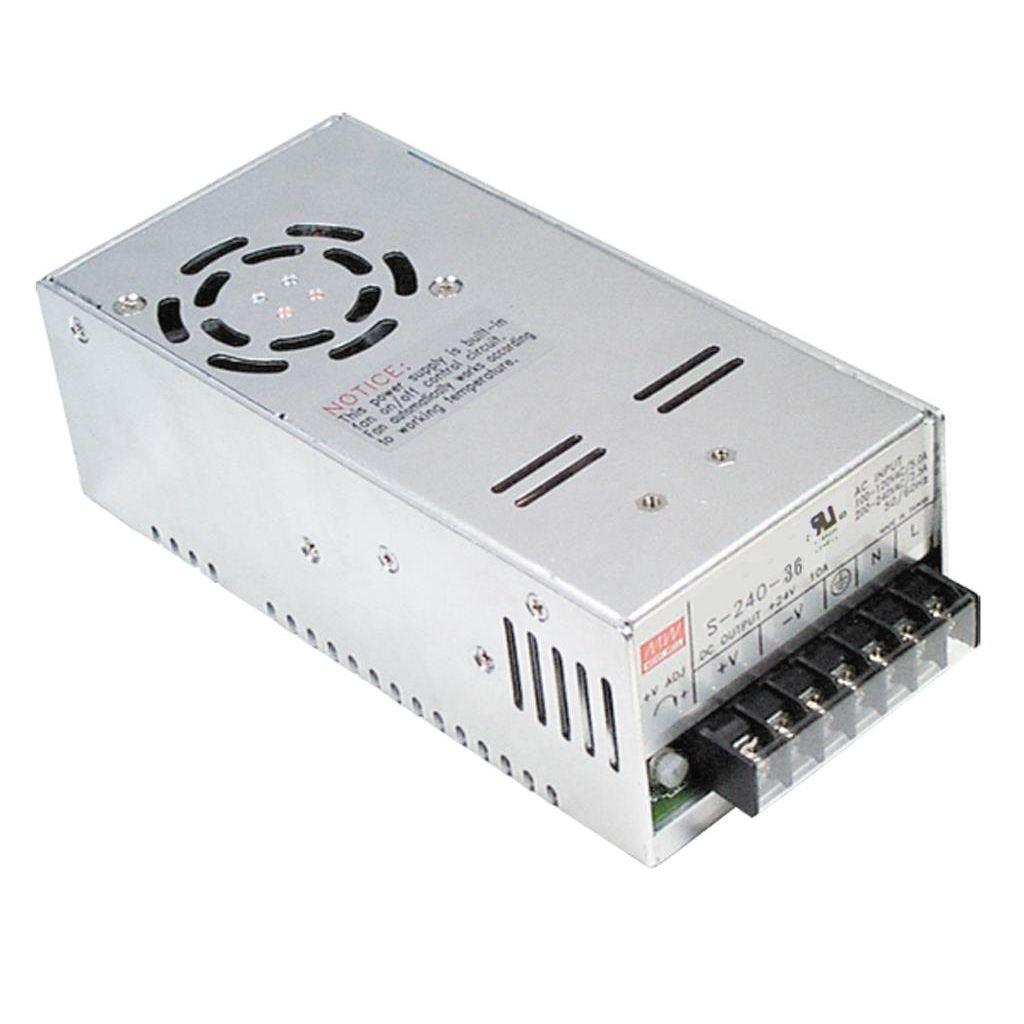

S-240-7.5

AC-DC Enclosed power supply; Output +7.5Vdc at 30A; S-240-7.5 is succeeded by RSP-200-7.5.

MEAN WELL

787-1711

787-1711 WAGO - Switched-mode power supply; Eco; 1-phase; 12 VDC output voltage; 4 A output current; DC-OK LED

WAGO

QS20.481

PULS QS20.481 is a power supply unit designed for AC/DC conversion with a 50% power reserve. It features DIN rail mounting and operates within an ambient air temperature range of -25 to +70°C. The unit is equipped with a DC-OK relay contact output and offers a rated current of 10A at 48Vdc and 8.7A at 55Vdc, with a power derating from 12W at +60°C to +70°C. Connection is facilitated through spring-clamp connections. The supply voltage ranges from 85Vac to 264Vac for AC input and 88Vdc to 188Vdc for DC input, supporting various nominal voltages and featuring specific turn-on and shutdown voltages. Housed in an aluminium casing, it is suitable for single-phase (1AC) or DC networks, with dimensions of W82mm x H124mm x D127mm. The rated power is 480W, with a short-term capacity of 720W for up to 4 seconds. Output voltage is adjustable between 48Vdc and 55Vdc. Protection functions include output overvoltage protection and overload/short-circuit protection, with capabilities for series or parallel operation for increased output power. Efficiency rates vary with input voltage, and the unit exhibits specific current consumption, time delay, hold time, power dissipation/losses, and electrical durability metrics. Ripple is maintained at 100mVpp, and the output stage capacitance is 3100 µF.

Puls

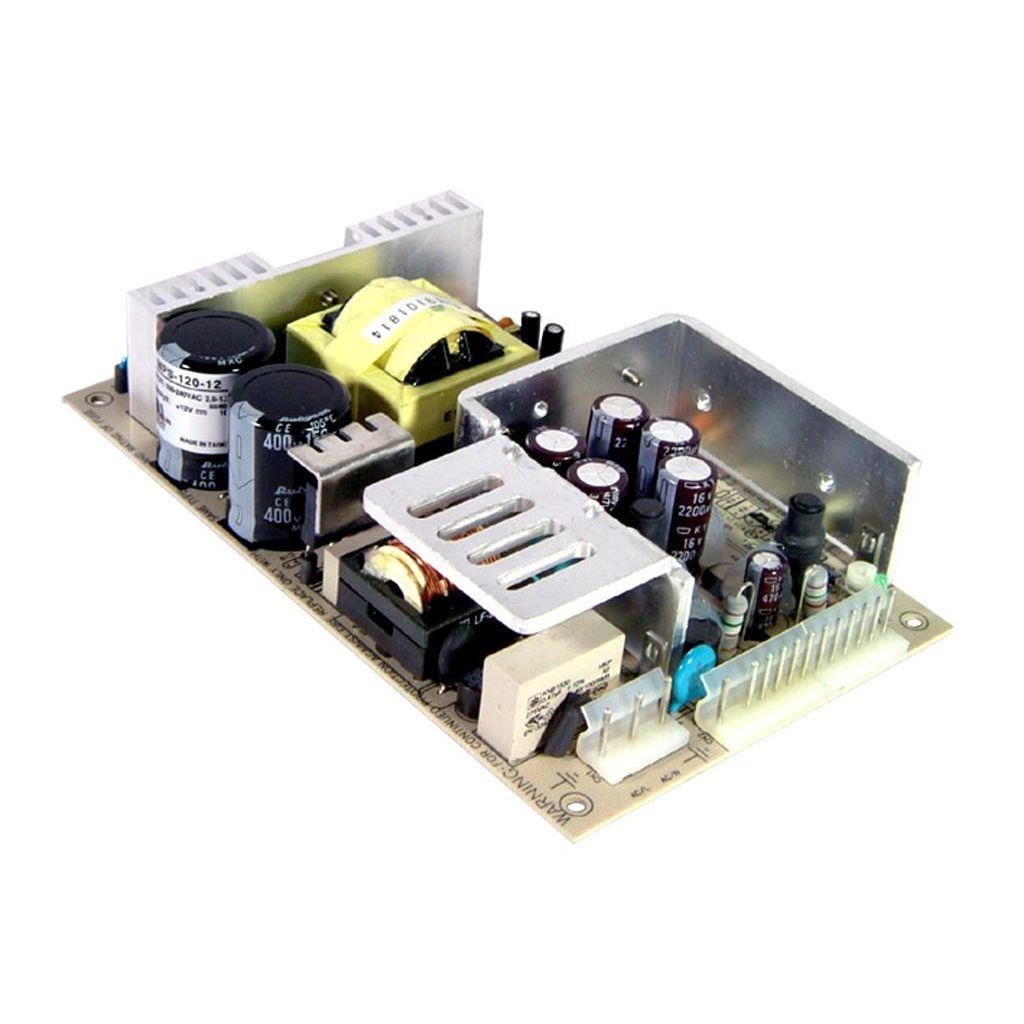

MPT-120A

AC-DC Triple output Medical Open frame power supply; Output 5Vdc at 10A +12Vdc at 4.8A; 2xMOPP; MPT-120A is succeeded by MPQ-200B.

MEAN WELL

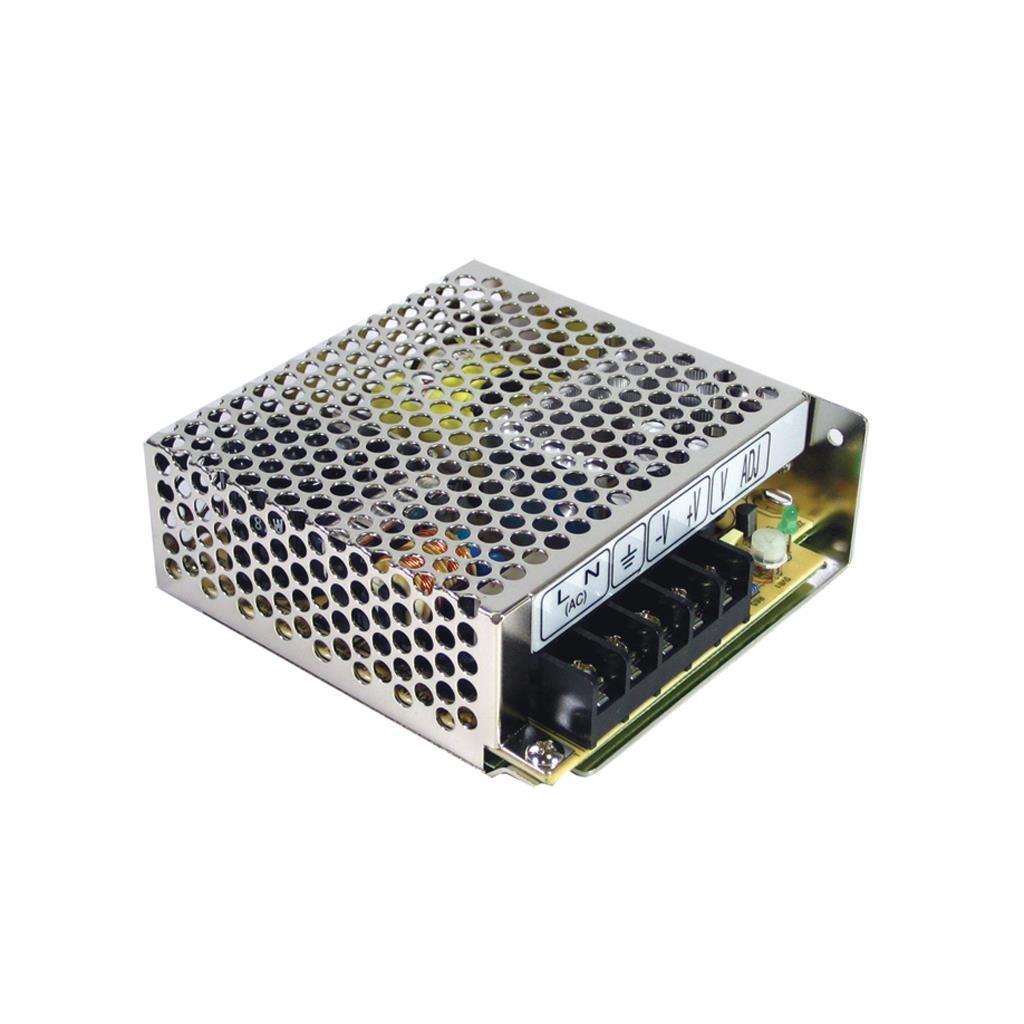

RT-50A

AC-DC Triple output enclosed power supply; Output +5Vdc at 4A +12Vdc at 2A -5Vdc at 0.5A

MEAN WELL

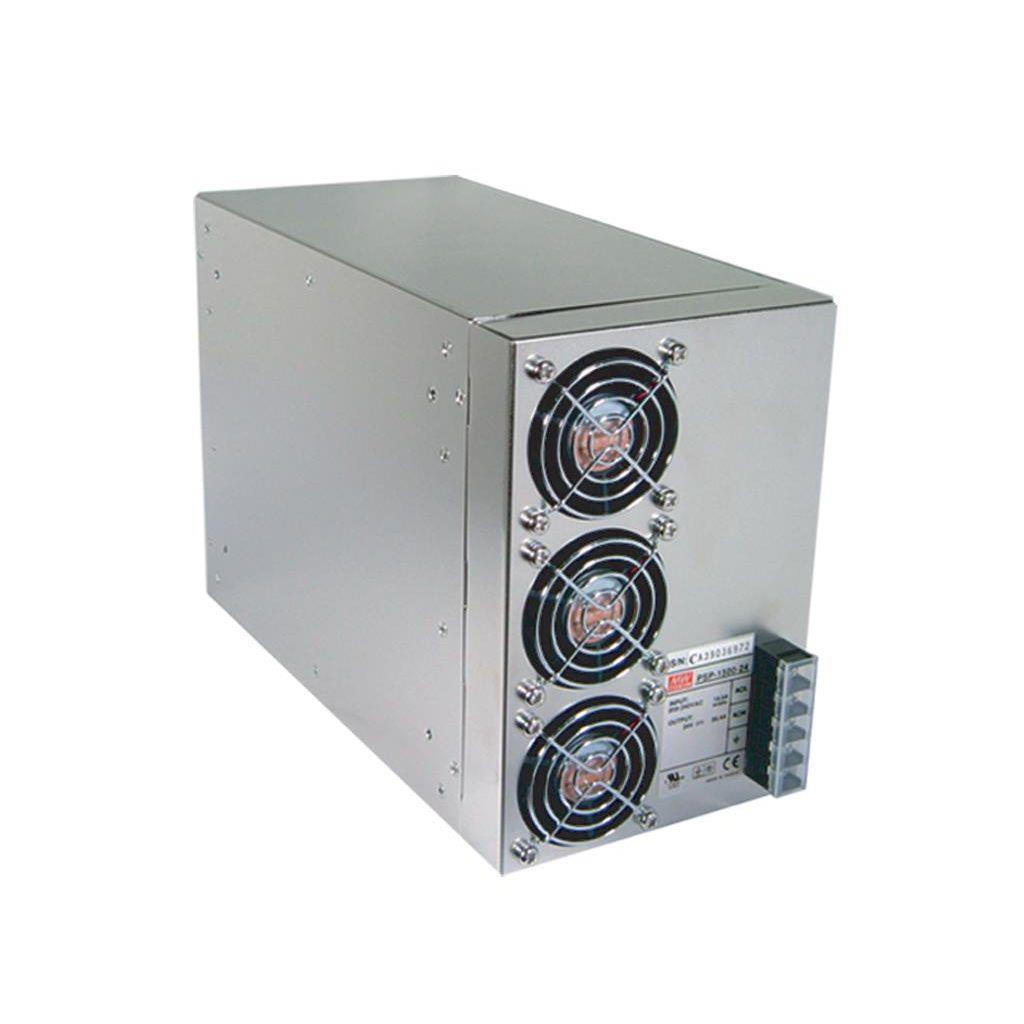

PSP-1500-15

AC-DC Single output Enclosed power supply; Output 15Vdc at 90.0A; PFC + parallel; PSP-1500-15 is succeeded by RSP-1600-12.

MEAN WELL

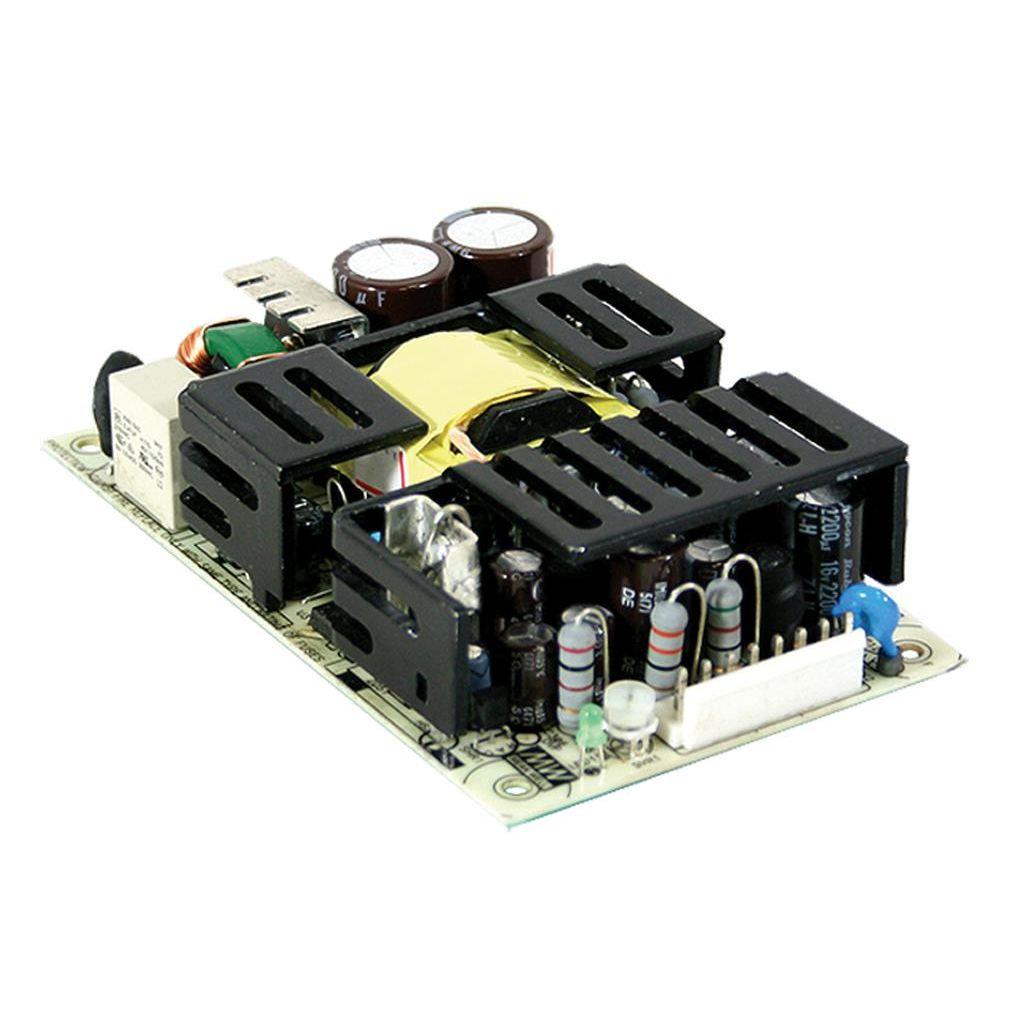

RPTG-160B

AC-DC Triple output Medical Open frame power supply; Output 5Vdc at 14A +12Vdc at 5A -12Vdc at 1A; 2xMOPP; compact size 5 x 3 inch; 5Vsb

MEAN WELL

SCP30D524BDN

SCP30D524BDN SolaHD - SolaHD™ SCP Series 30 Watt Switched Power Supplies - PN SCP30D524BDN

SolaHD
