AC/DC Power Supplies

83242603

83242603 SolaHD - SolaHD™ SL Series Single and Multi Output Power Supplies - PN 83242603

SolaHD

MPM-30-5ST

AC-DC Single output Medical Encapsulated power supply; Output 5Vdc at 6A; Screw terminal block; 2xMOPP

MEAN WELL

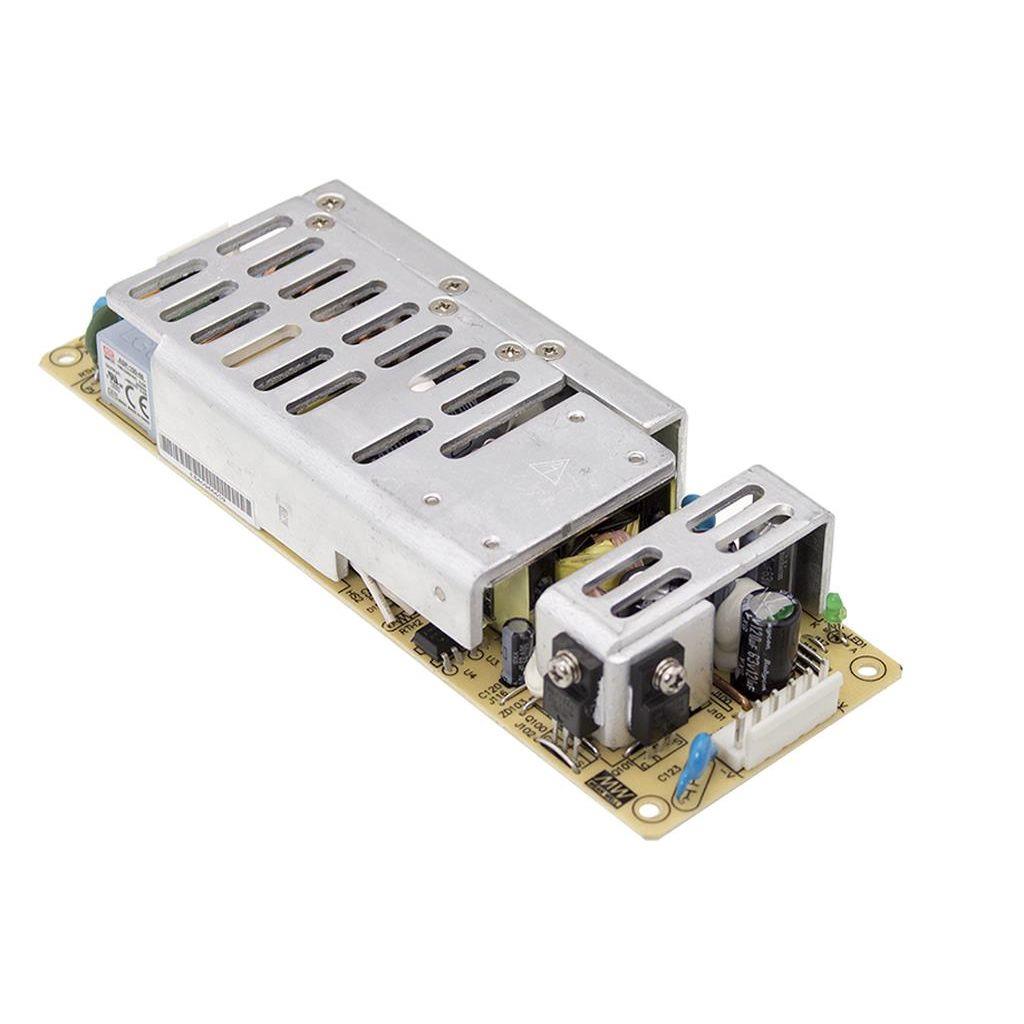

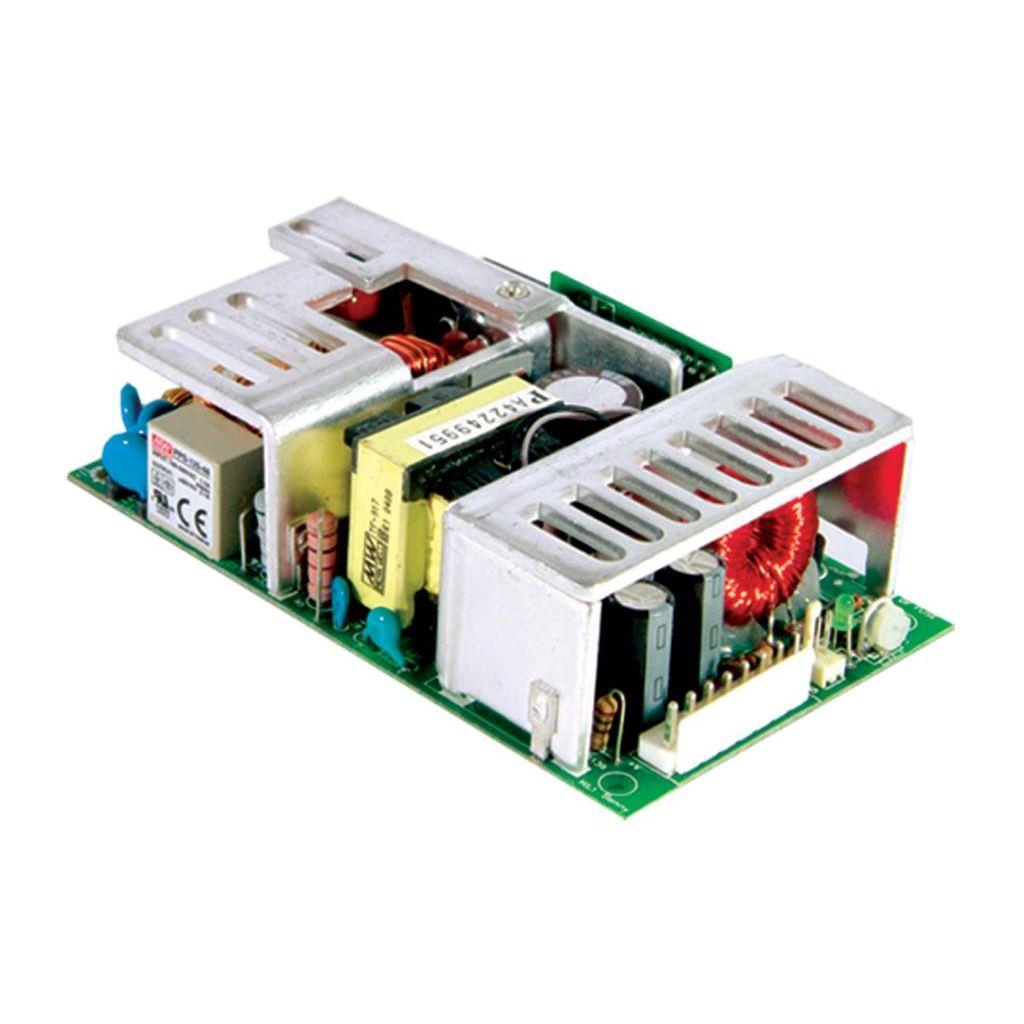

RPT-160C

AC-DC Triple output Medical Open frame power supply; Output 5Vdc at 14A +15Vdc at 3.6A -15Vdc at 1A; 2xMOPP; compact size 5 x 3 inch

MEAN WELL

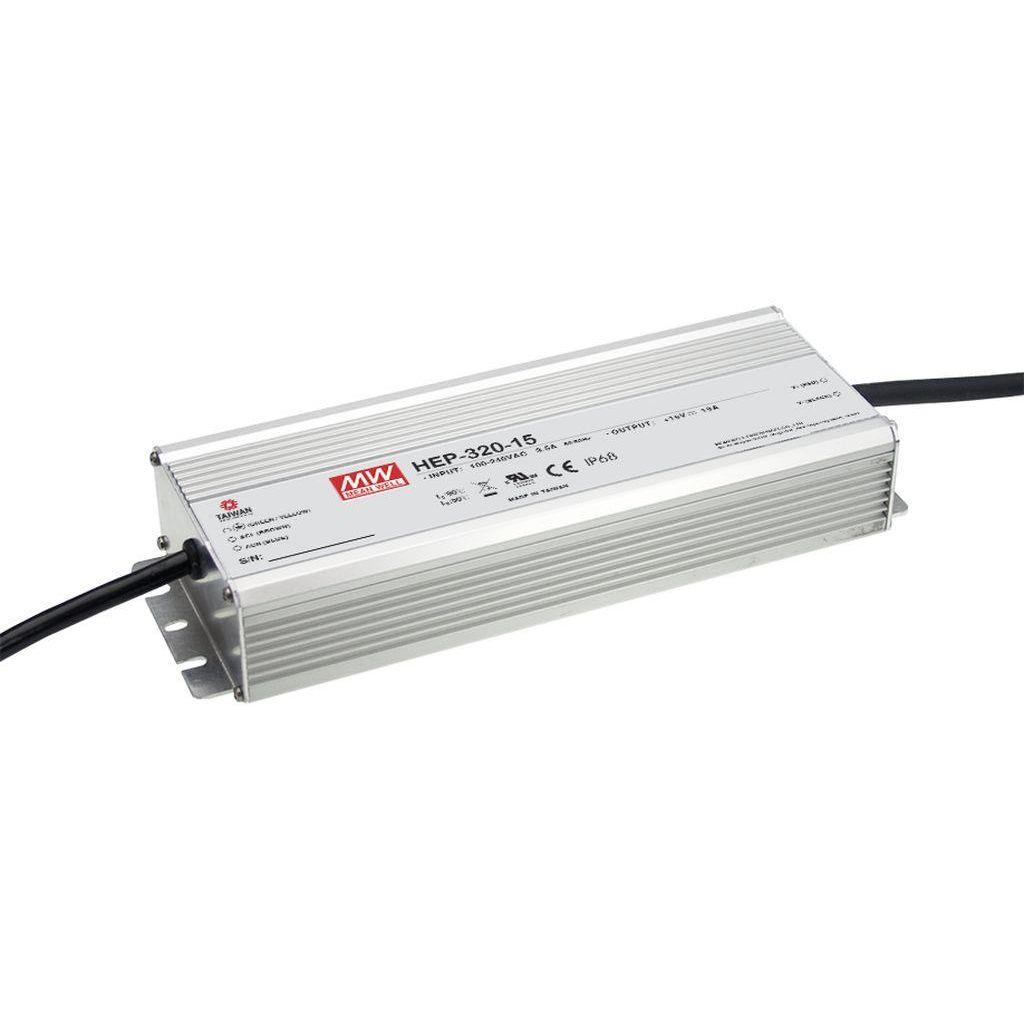

HEP-320-24

AC-DC Single output industrial power supply with PFC; Output 24Vdc at 13.3A; Vo-Io fixed; Withstand up to 10G Vibration

MEAN WELL

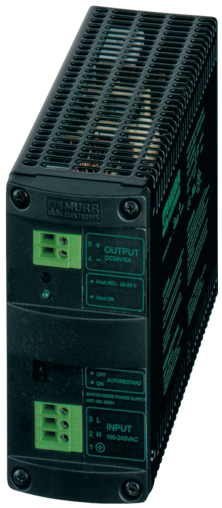

85061

85061 Murrelektronik - MCS POWER SUPPLY 1-PHASE, IN: 90-265VAC OUT: 24-28V/5ADC

Murr Elektronik

S8FS-G03024CD

S8FS-G Switch Mode Power Supply

Omron

CT10.241-C1

PULS CT10.241-C1 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a current consumption of 0.6A with a 3 x 480Vac input for full 24Vdc output, and 0.7A with a 3 x 400Vac input for full 24Vdc output, with a peak inrush current of 10A for both input conditions. The unit boasts an efficiency of 0.929 and 0.928 for 3x480Vac and 3x400Vac inputs respectively. It is designed to resist harsh environments with its conformal coated PCB. The dimensions are W62mm x H124mm x D117mm. It features a 90ms start-up delay, a 40ms rise time under nominal input with a constant full current load and 0mF load capacitance, and an 85ms rise time under the same conditions with 10mF load capacitance. The power supply unit includes protection functions such as output overvoltage protection and is capable of series/parallel operation for increased output power. It has a power dissipation/loss of 18.3W and 18.6W for 3x480Vac and 3x400Vac inputs respectively, with an output stage capacitance of 6500µF. The electrical durability ranges from 36,000 to 410,000 hours depending on the operating conditions. The ripple is 50mVpp (20Hz...20MHz; 50Ω). This AC/DC power supply unit/converter offers a 20% power reserve and is part of the CT-series, featuring a conformal coating, 20% power reserve, and a DC-OK relay contact output. It utilizes screw-clamp connections and supports a supply voltage of 323Vac-576Vac with a wide range, 3-phase input. The rated current is 12A at 24Vdc from -25 to +45°C and 7.5A at 24Vdc from -25 to +70°C, with a rated power of 240W. The output voltage is adjustable between 24Vdc and 28Vdc, and the hold time is 54ms at 3x480Vac input and 34ms at 3x400Vac input.

Puls

85099

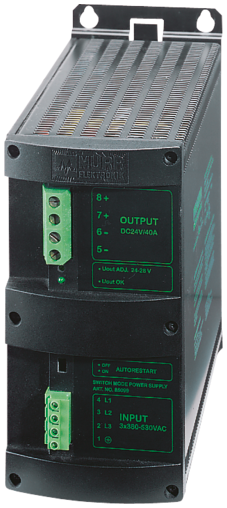

85099 Murrelektronik - MCS POWER SUPPLY 3-PHASE, IN: 360-550VAC OUT: 24-28V/40ADC

Murr Elektronik

TP-100B

AC-DC Triple output enclosed power supply; Output 5Vdc at 15A +12Vdc at 5A -12Vdc at 1A; TP-100B is succeeded by QP-150-3B.

MEAN WELL

LRS-35-5

AC-DC Single output enclosed power supply; Universal AC input; Output 5Vdc at 7A; Up to 5G vibration; 1U low profile

MEAN WELL

FLEX17024A

Sprecher + Schuh FLEX17024A - Adel Flex Power Supply, Selectable Input 115/230V AC-24V DC, 7.5A, 1 Phase

Sprecher + Schuh

SL20.303

Power Supply, 480W, 380-400VAC 3PH, 48-56VDC, 10-9A

Puls

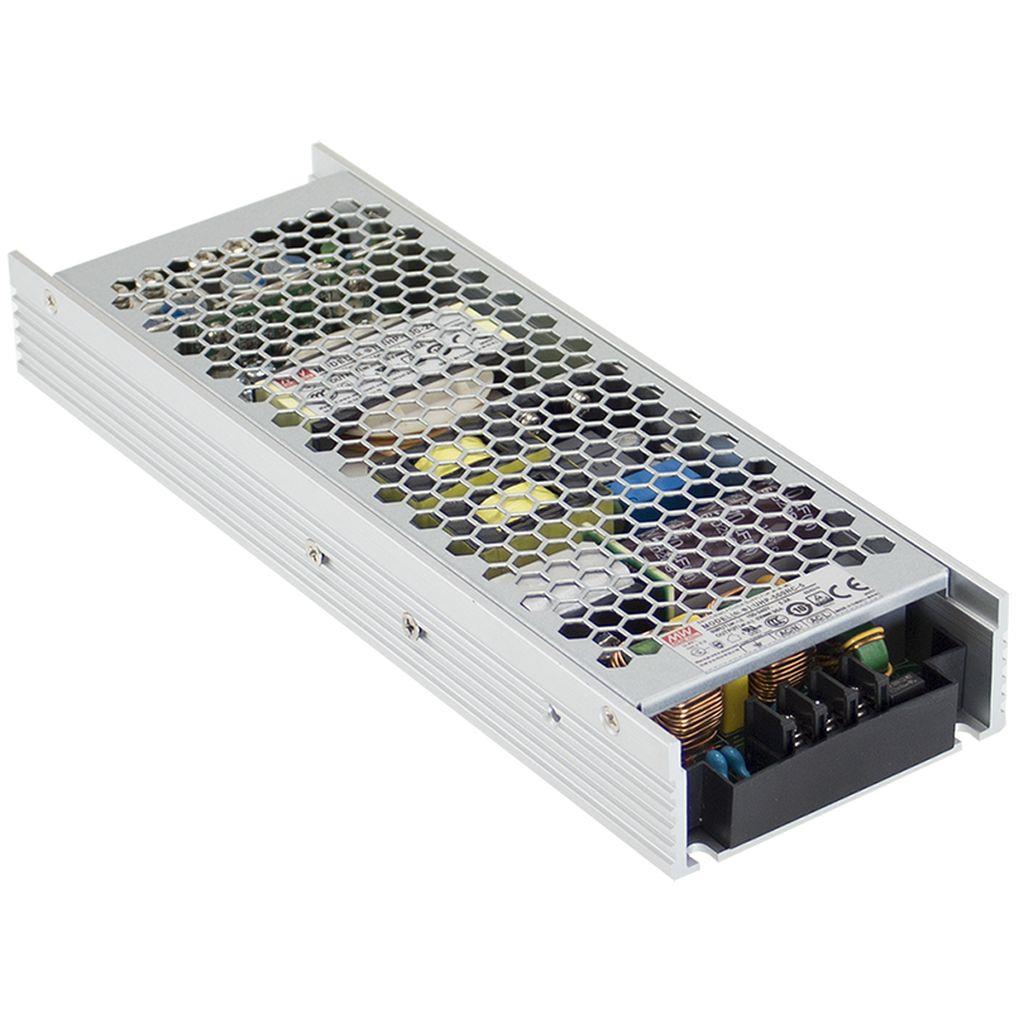

UHP-500-4.2

AC-DC Slim Single output enclosed power supply with PFC; Output 4.2VDC at 80A

MEAN WELL

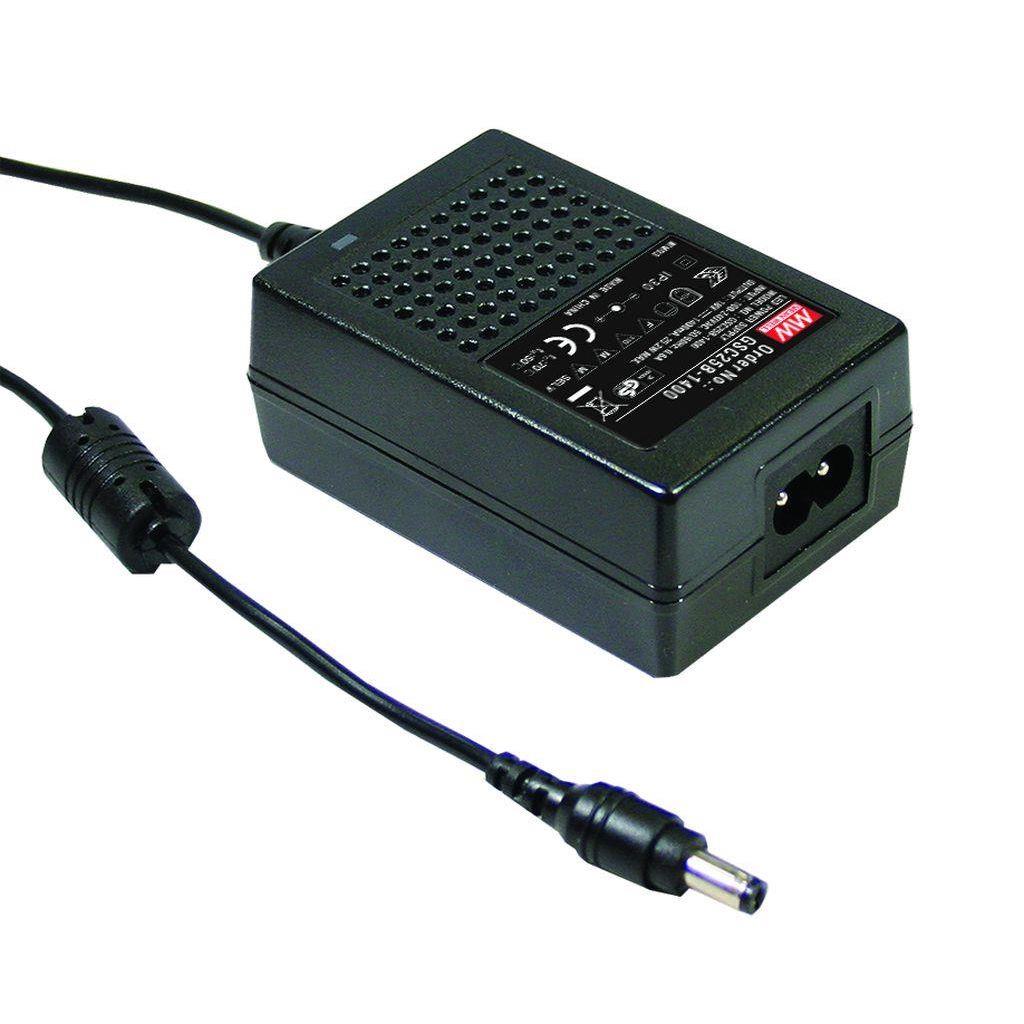

GSC25B-1050

AC-DC Single output desktop LED power supply (CC) with PFC; Output 24Vdc at 1.05A; 2 pole AC IEC320-C8 input connector; GSC25B-1050 is succeeded by PLM-25-1050.

MEAN WELL

CS10.243

PULS CS10.243 is a DIN rail mounting power supply unit with an aluminium housing designed for a single-phase network. It operates within an ambient air temperature range of 0 to +70°C and has a net width of 60mm. The unit consumes 3.71A with a 120Vac input and 4.32A with a 100Vac input for a full 24Vdc output, featuring a peak inrush current of 108A at 120Vac input and 90A at 100Vac input. It offers an efficiency of 0.913 at 120Vac input and 0.91 at 100Vac input. The dimensions are W60mm x H124mm x D117mm. It includes a 250ms start-up delay for 100-120Vac input, with a rise time of 35ms under nominal input at constant full current load with 0mF load capacitance and 75ms with 10mF load capacitance. The power supply unit is equipped with protection functions including output overvoltage protection, NTC for input inrush current limiting, and overload/short-circuit protection. It supports series/parallel operation for redundancy and is resistant to back-feeding loads up to 35V. Power dissipation/losses are 22.9W at 120Vac input with full output load, and the output stage capacitance is 7000µF. Electrical durability ranges from 27,000 to 281,000 hours depending on conditions. Ripple is maintained at 50mVpp across a 20Hz to 20MHz range. This AC/DC power supply unit, part of the C-Line series, features a 20% power reserve, DC-OK relay contact output, and screw-clamp connections. It accepts a supply voltage of 90Vac-132Vac (47-63Hz) with a turn-ON voltage of 82Vac and a shutdown voltage of 78Vac in steady-state. The rated current is 12A at 24Vdc for ambient temperatures less than 45°C and 10A at 24Vdc for less than 60°C, with an adjustable output voltage of 24Vdc-28Vdc. The hold time is 46ms at 120Vac input.

Puls

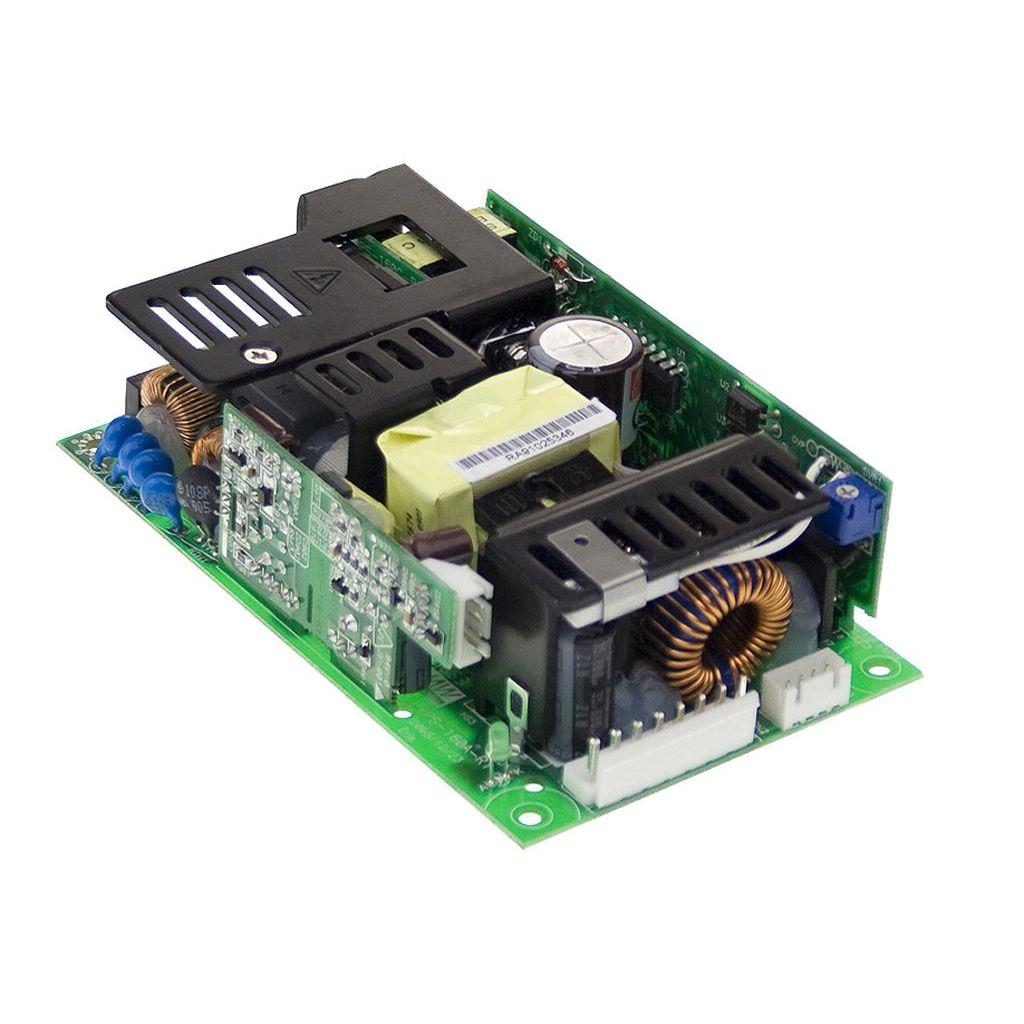

PPS-125-27

AC-DC Single output Open frame power supply with PFC; Output 27Vdc at 4.6A; PPS-125-27 is succeeded by EPS-120-27.

MEAN WELL

ASP-150-12

AC-DC Single output Open frame power supply; Output 12Vdc at 11A; ASP-150-12 is succeeded by EPP-150-12.

MEAN WELL

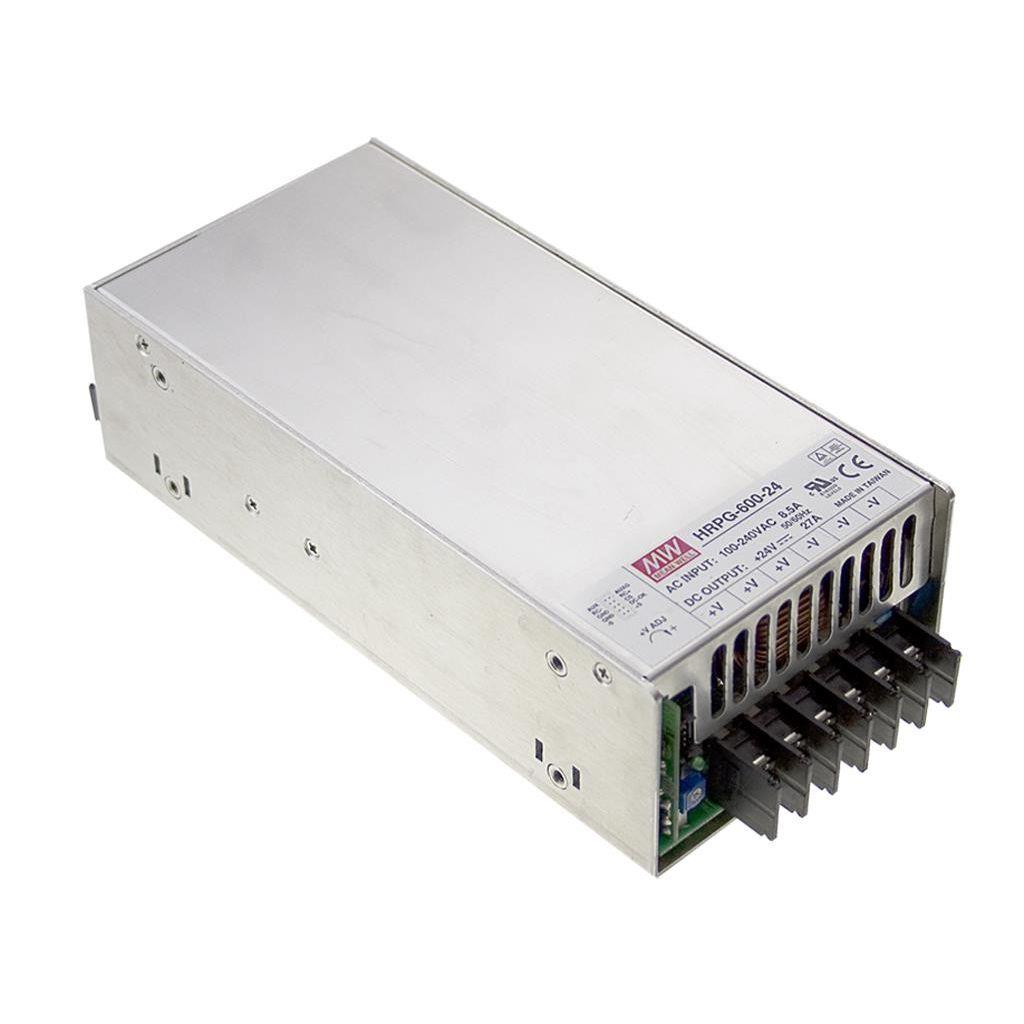

HRP-600-24

AC-DC Single output enclosed power supply; Output 24Vdc at 27A; fan cooling

MEAN WELL

SE-100-12

AC-DC Enclosed power supply; Output 12Vdc at 8.5A; PFC; SE-100-12 is succeeded by LRS-100-12.

MEAN WELL

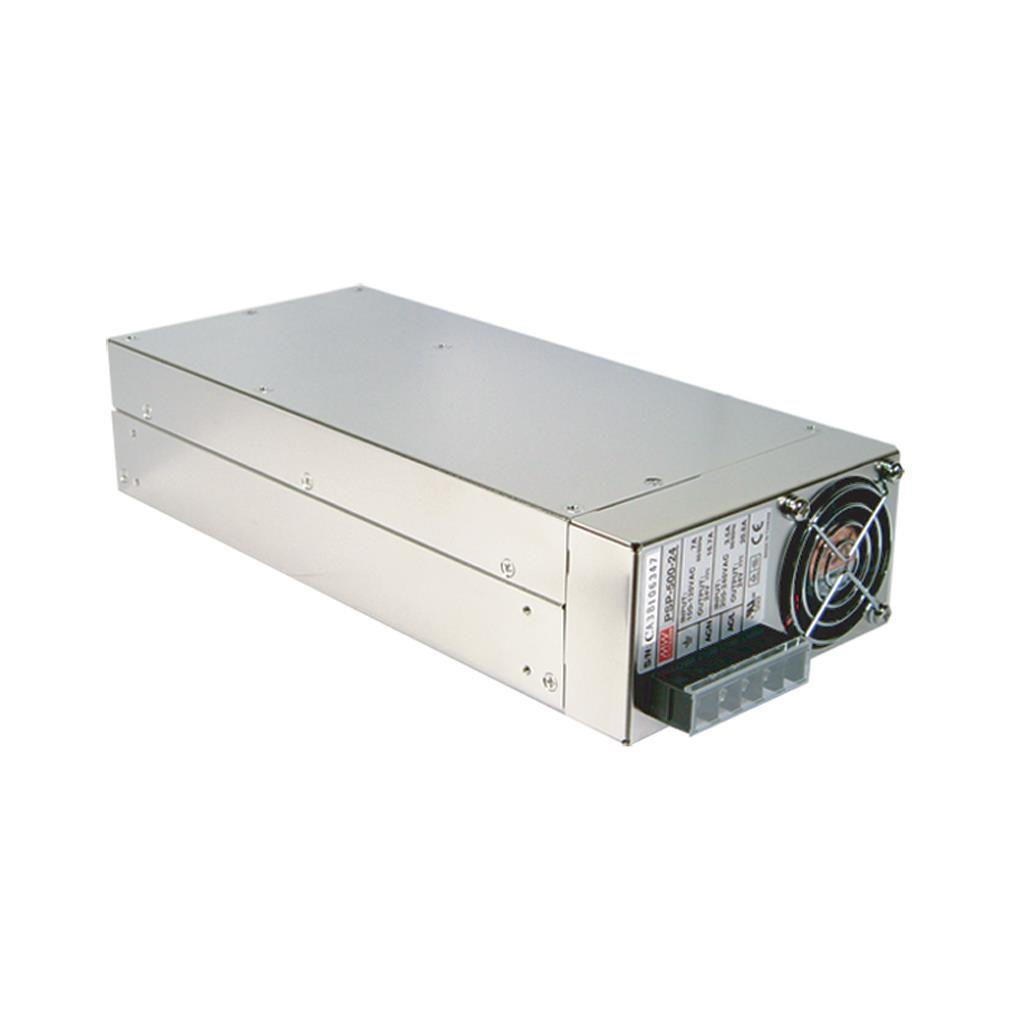

PSP-500-24

AC-DC Single output Enclosed power supply; Output 24Vdc at 20.8A; PSP-500-24 is succeeded by PSP-600-24.

MEAN WELL
