AC/DC Power Supplies

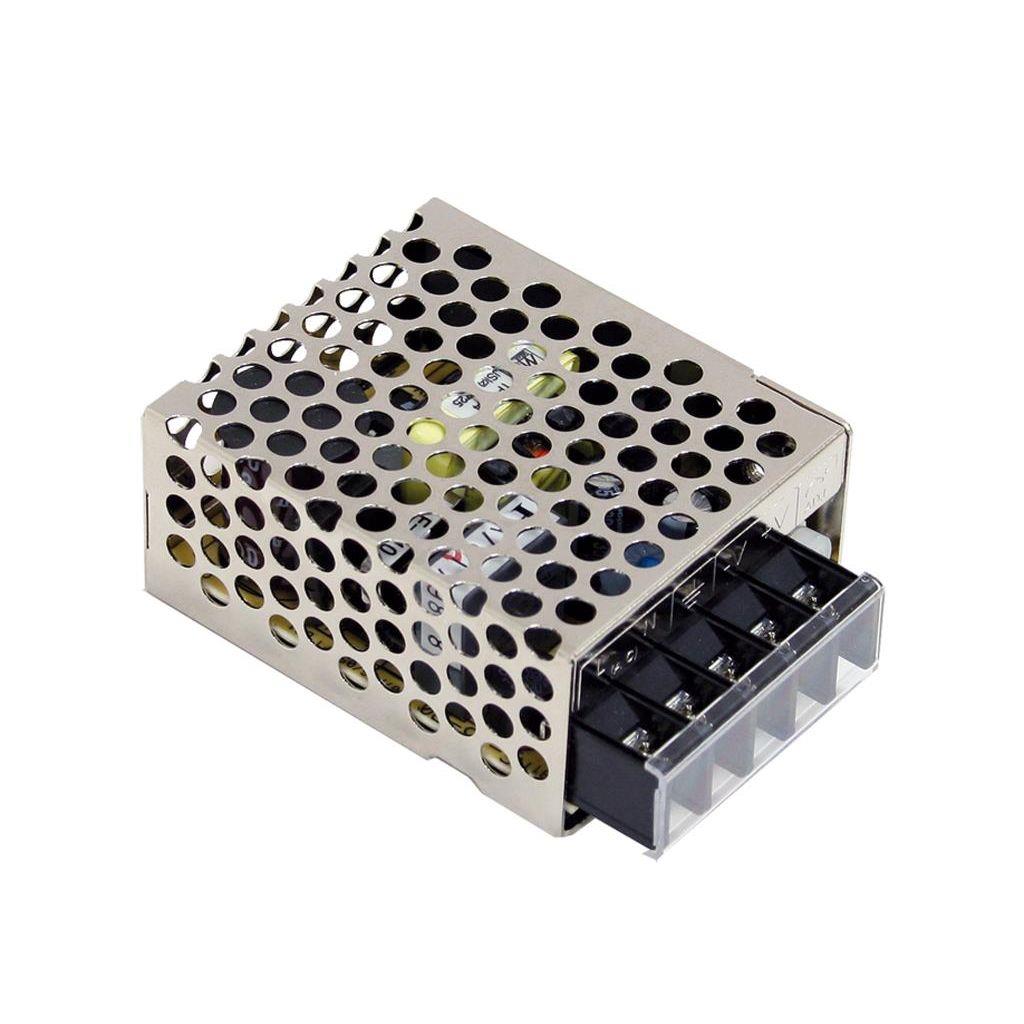

RS-15-3.3

AC-DC Single Output Enclosed power supply; Output 3.3VDC Single Output at 3A; free air convection

MEAN WELL

LRS-35-48

AC-DC Single output enclosed power supply; Universal AC input; Output 48Vdc at 0.8A; Up to 5G vibration; 1U low profile

MEAN WELL

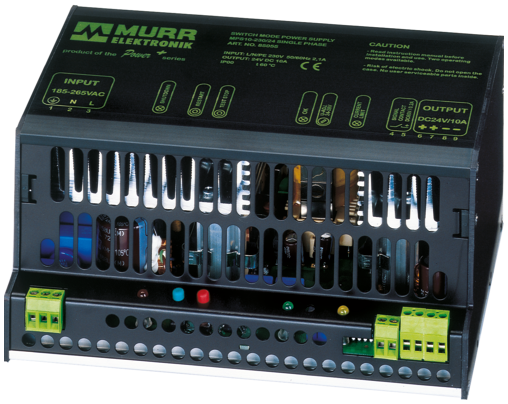

85055

85055 Murrelektronik - MPS POWER SUPPLY 1-PHASE, IN: 185-265VAC OUT: 22-28V/10ADC

Murr Elektronik

CPS20.121

PULS CPS20.121 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and supports a net width of 65 mm. The unit consumes 1.8A, 3.3A, and 4A under 230Vac, 120Vac, and 100Vac input conditions respectively, with a peak inrush current of 13A at both 230Vac and 120Vac inputs. It boasts an efficiency of up to 0.926, 0.914, and 0.909 under 230Vac, 120Vac, and 100Vac inputs respectively. The dimensions are W65mm x H124mm x D127mm. It features a start-up delay of 700-900ms and rise times of 72ms and 120ms under nominal input conditions. The CPS20.121 includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation to increase output power. It is designed to handle back-feeding loads up to 16V without malfunctioning. Power dissipation/losses are calculated at 28.8 W, with an output stage capacitance of 5600 µF. Its electrical durability ranges from 50,000 to 492,000 hours, depending on operating conditions. The ripple is maintained at 100mVpp. This AC/DC power supply unit offers a 20% power reserve, is part of the C-series, and includes ATEX approval, DC-OK relay contact output, and screw-clamp connections. It accepts a supply voltage range of 85Vac-264Vac, with specific shutdown voltages under varying loads. The rated current is 30A at 12Vdc, with a rated power of 405W at 15Vdc and 360W at 12Vdc. The output voltage is adjustable between 12Vdc and 15Vdc, featuring a 200mV turn-ON overshoot and a hold time of 35ms.

Puls

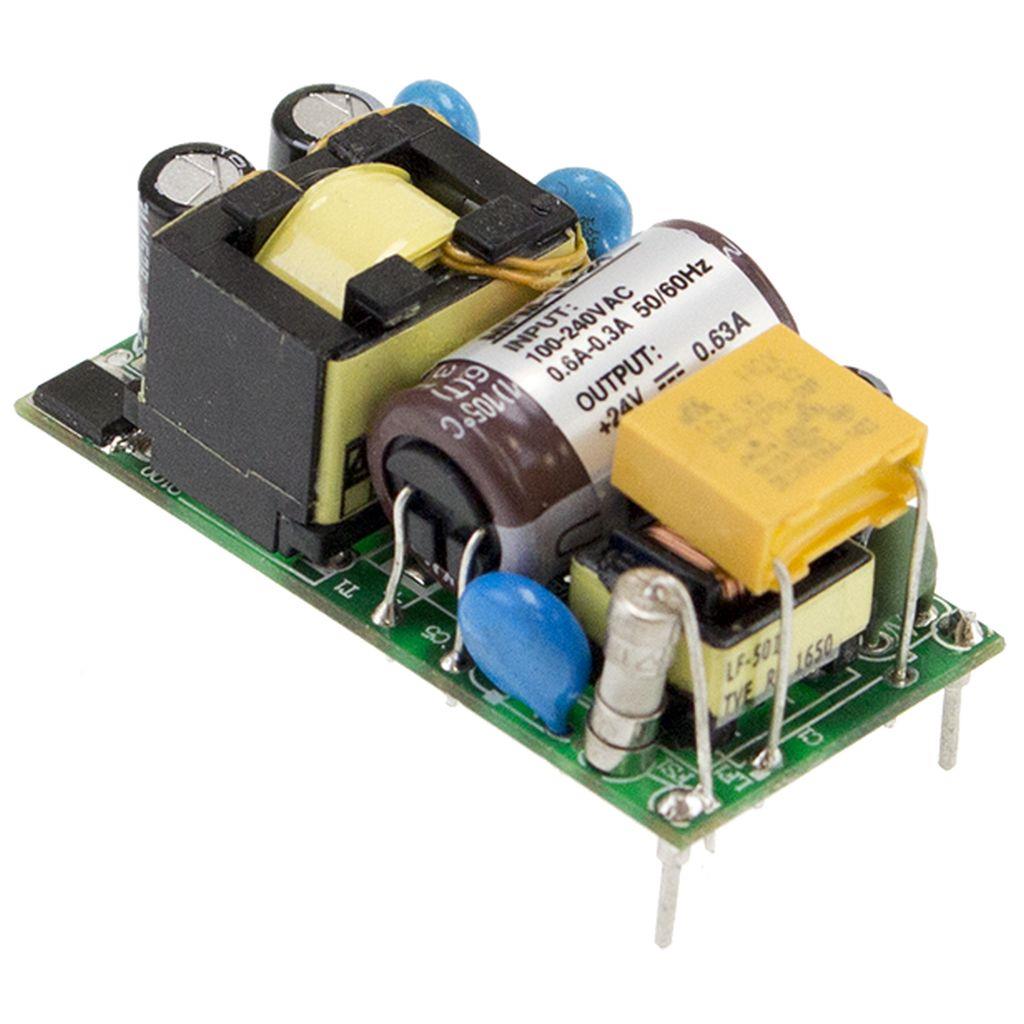

MFM-15-24

AC-DC Single output Medical Open frame power supply; Output 24Vdc at 0.63A; PCB mount; 2xMOPP

MEAN WELL

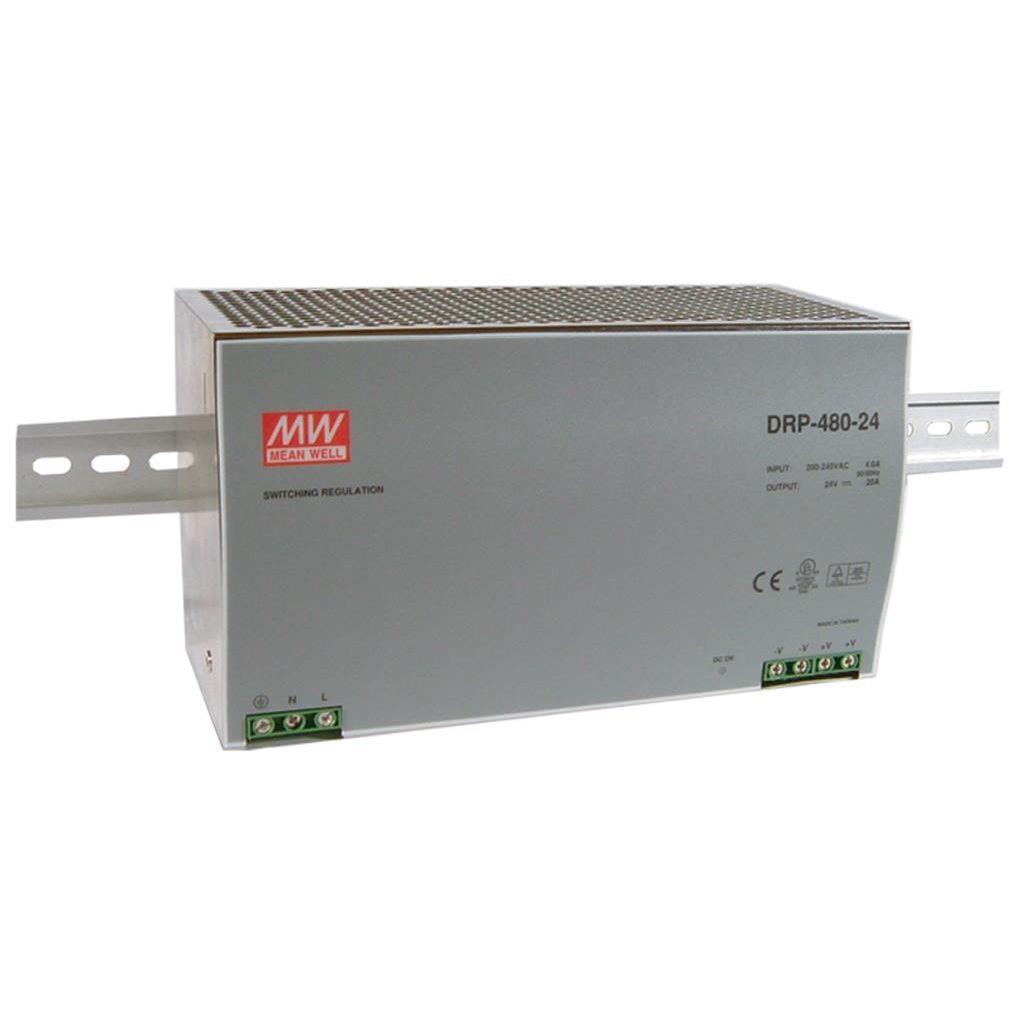

DRP-480-24

AC-DC Industrial DIN rail power supply; Output 24Vdc at 20A; metal case; DRP-480-24 is succeeded by NDR-480-24.

MEAN WELL

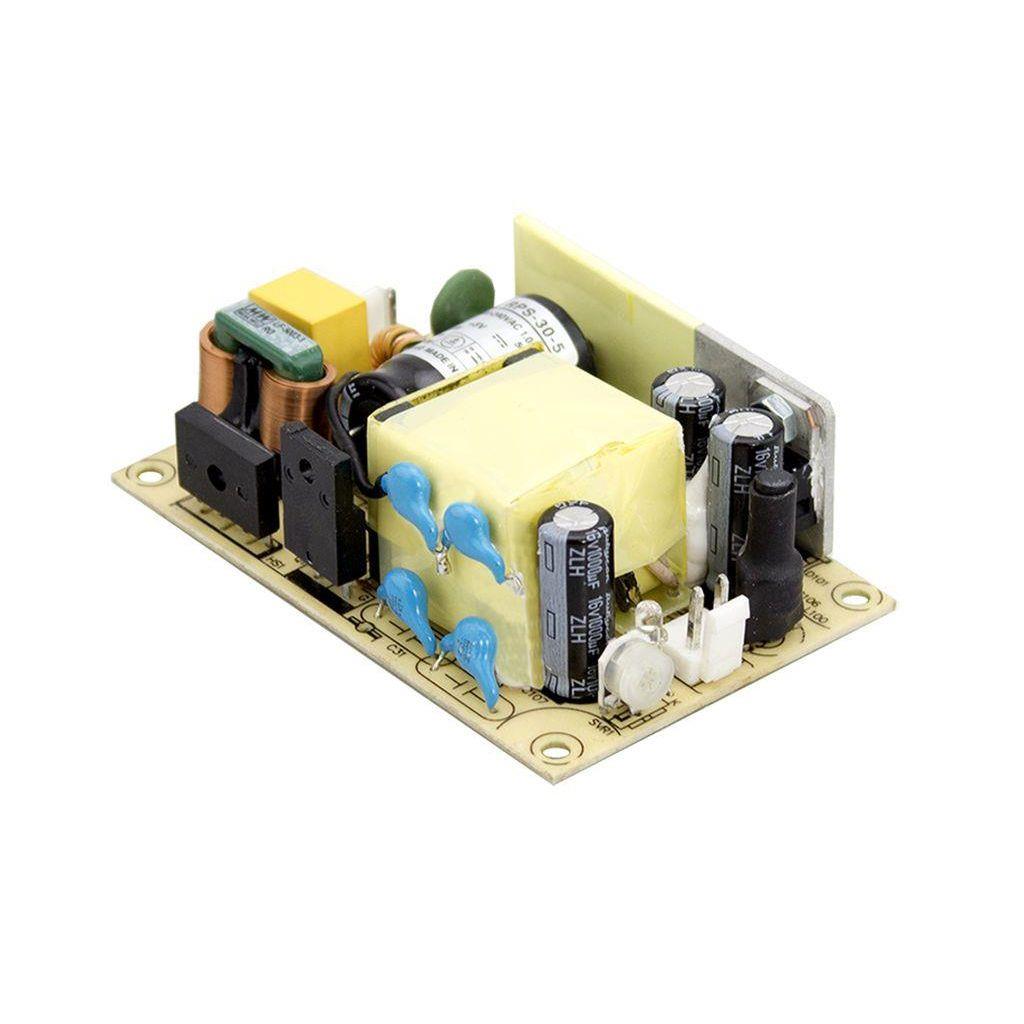

RPS-30-7.5

AC-DC Single output medical Open frame power supply; Output 7.5VDC at 4A; 2xMOPP

MEAN WELL

SL20.300

Power Supply, 480W, 380-400VAC 3PH, 24-28VDC, 20-18A

Puls

CP20.241-R2-C1

PULS CP20.241-R2-C1 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -40 to +70°C and has a net width of 48 mm. The unit consumes current differently based on the input, including 2.25A with 230Vac input, 4.28A with 120Vac input, 5.17A with 100Vac input, and 4.64A with 110Vdc input for a 24Vdc / 10A output, with peak inrush currents of 5.5A and 12A for 230Vac and 120Vac inputs respectively. It features an IP20 degree of protection and achieves efficiencies of 0.952 and 0.938 with 230Vac and 120Vac inputs, respectively. The power supply is resistant to harsh environments, thanks to its conformal coated PCB, and has dimensions of W48mm x H124mm x D127mm. It includes a 450ms start-up delay and rise times of 145ms and 160ms under specified conditions. Protection functions include output overvoltage protection and overload/short-circuit protection, with capabilities for series/parallel operation and resistance to back-feeding loads up to 35V. Power dissipation losses are 24.2W and 31.7W for 230Vac and 120Vac inputs, respectively, with an output stage capacitance of 8000 µF. Electrical durability varies with conditions, offering up to 465,000 hours at 25°C with a 10A output and 1AC 230Vac input. The ripple is specified as 100mVpp. This AC/DC power supply unit, part of the CP-series, is designed with built-in decoupling MOSFET for redundancy, hot-swappable connectors, ATEX approval, and a 20% power reserve. It supports a supply voltage range of 88Vdc-180Vdc for DC and 85Vac-264Vac for AC, with specific shutdown and turn-on voltages. The rated current is 24A at 48Vdc in temperatures up to +45°C, with derating at higher temperatures. It provides a fixed 24Vdc output voltage and includes a 32ms hold time at standard AC inputs.

Puls

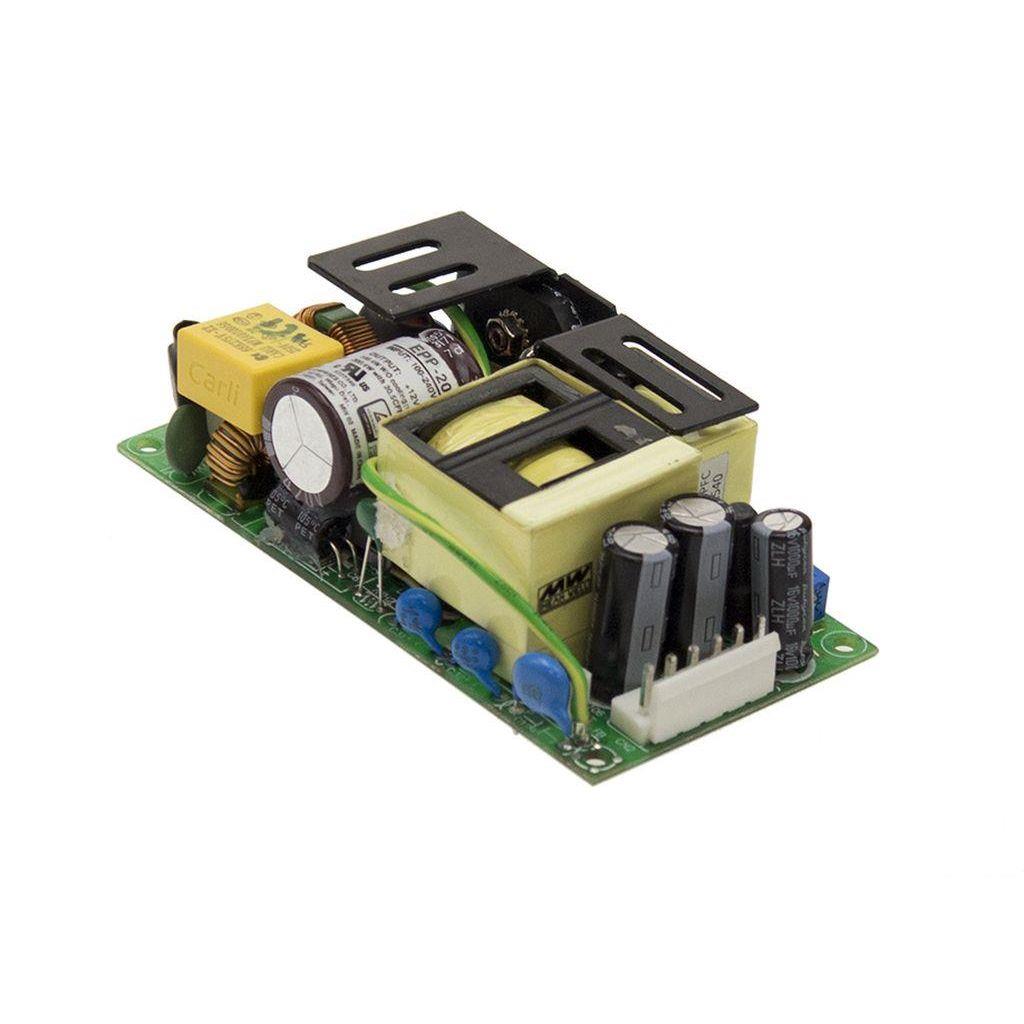

EPP-200-27

AC-DC Single output Open frame power supply; output 27Vdc at 5.3A

MEAN WELL

PT-65A

AC-DC Triple output Open frame power supply; Output 5Vdc at 7A +12Vdc at 3.2A -5Vdc at 0.7A

MEAN WELL

RSP-1000-27

AC-DC Single Output Enclosed power supply; Output 27VDC Single Output at 37A; PFC; forced air cooling

MEAN WELL

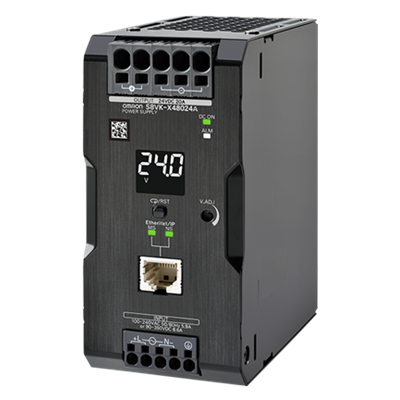

S8VK-X24024-EIP

S8VK-X Switch Mode Power Supply

Omron

RS-100-12

AC-DC Single Output Enclosed power supply; Output 12VDC Single Output at 8.5A; free air convection

MEAN WELL

RSP-320-13.5

AC-DC Single Output Enclosed power supply; Output 13.5VDC Single Output at 23.8A; PFC; forced air cooling; 1U low profile

MEAN WELL

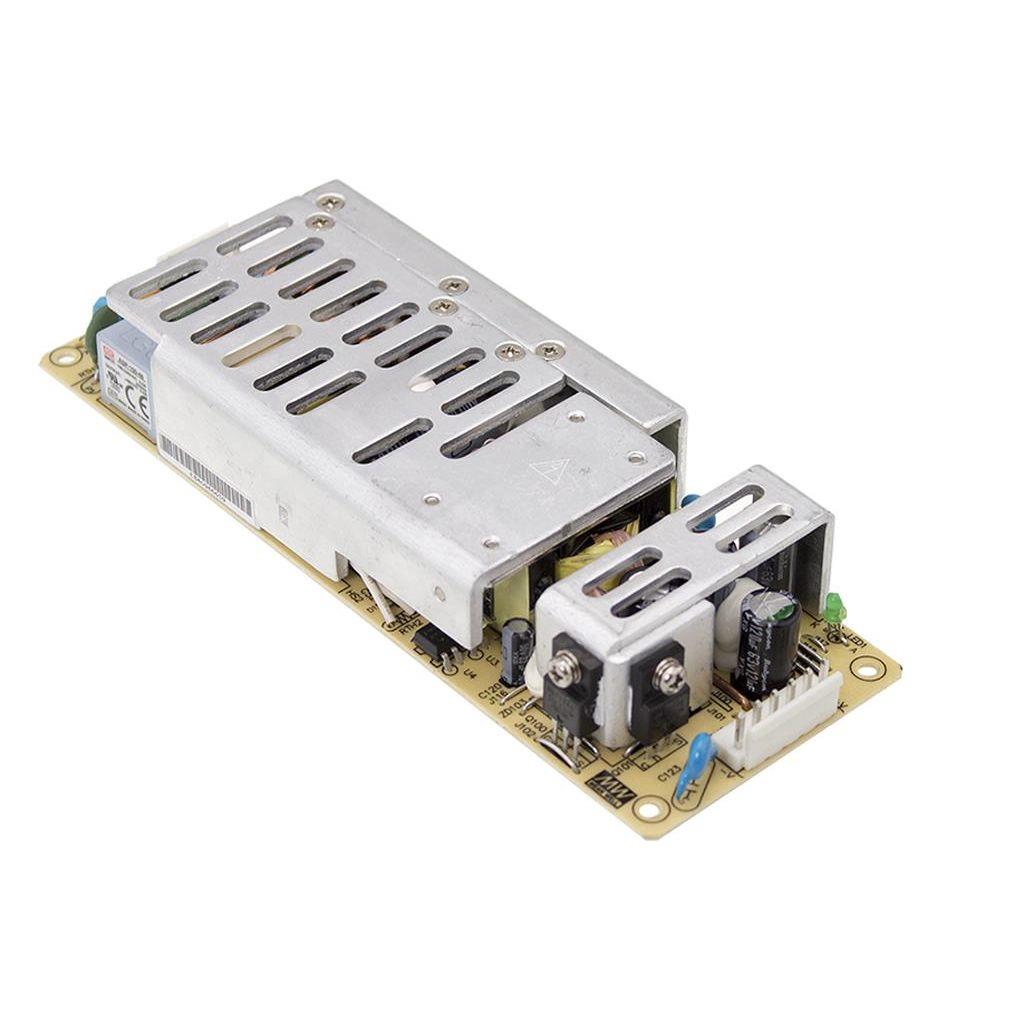

ASP-150-20

AC-DC Single output Open frame power supply; Output 20Vdc at 7.5A; ASP-150-20 is succeeded by EPP-150-15.

MEAN WELL

SCP30S48DN

SCP30S48DN SolaHD - SolaHD™ SCP Series 30 Watt Switched Power Supplies - PN SCP30S48DN

SolaHD
