AC/DC Power Supplies

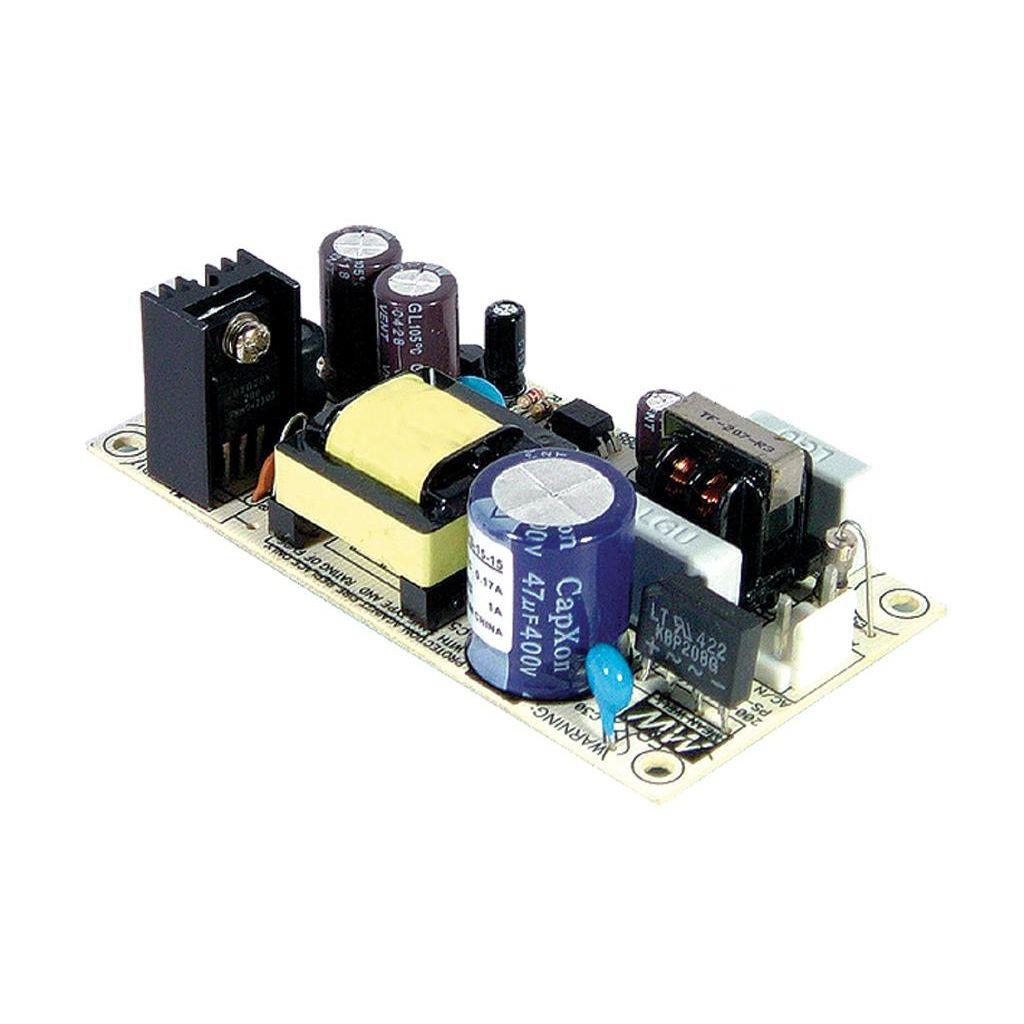

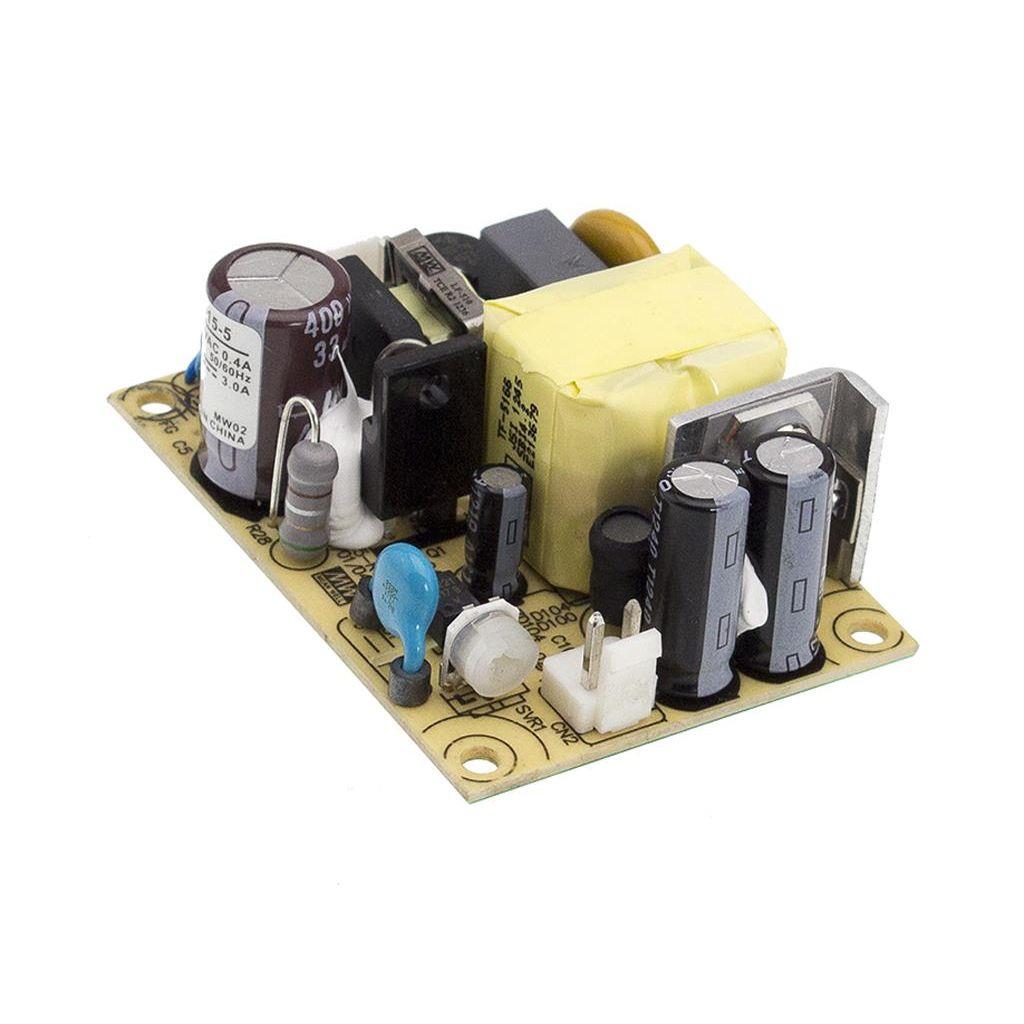

PS-15-15

AC-DC Single output Open frame power supply; Output 15Vdc at 1A; PS-15-15 is succeeded by EPS-15-15.

MEAN WELL

EPS-15-15

AC-DC Single output Open frame power supply; Output 15Vdc at 1.0A

MEAN WELL

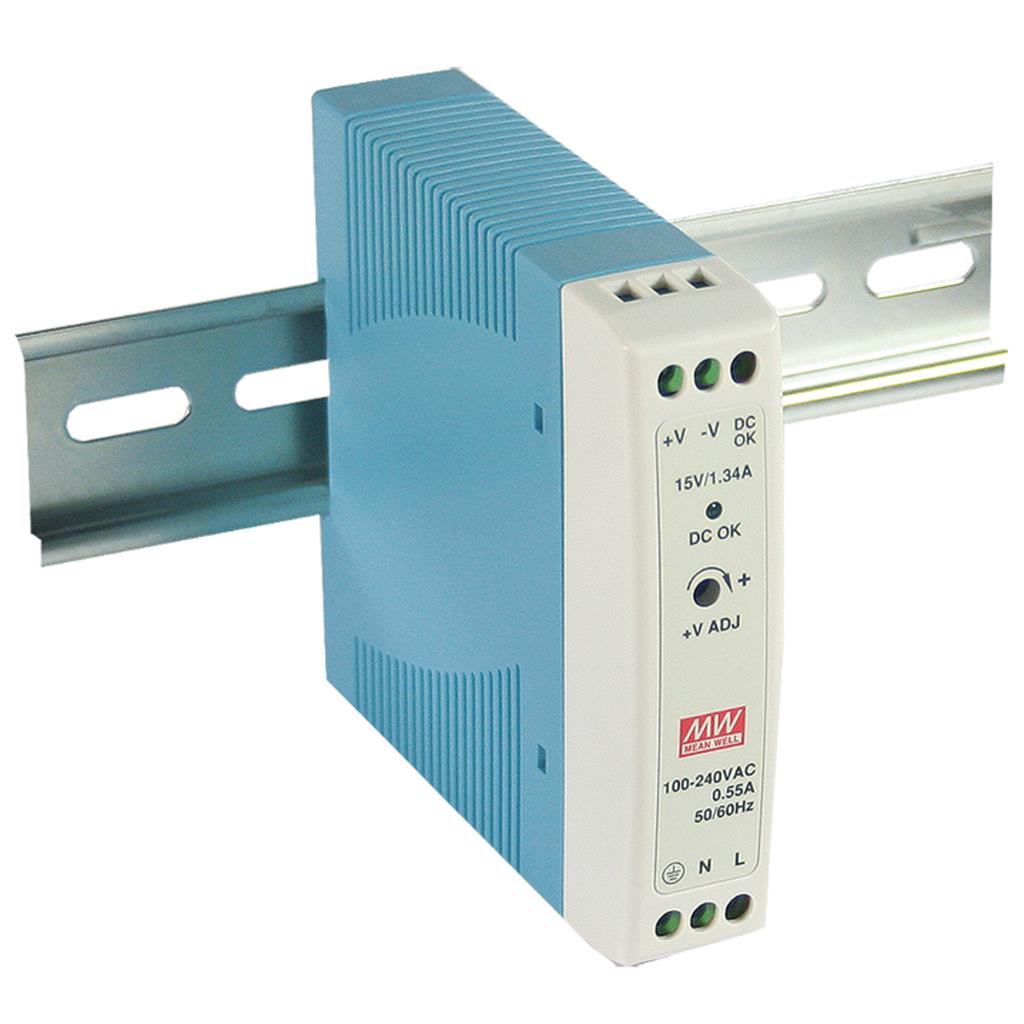

MDR-20-5

AC-DC Industrial DIN rail power supply; Output 5Vdc at 3A; plastic case

MEAN WELL

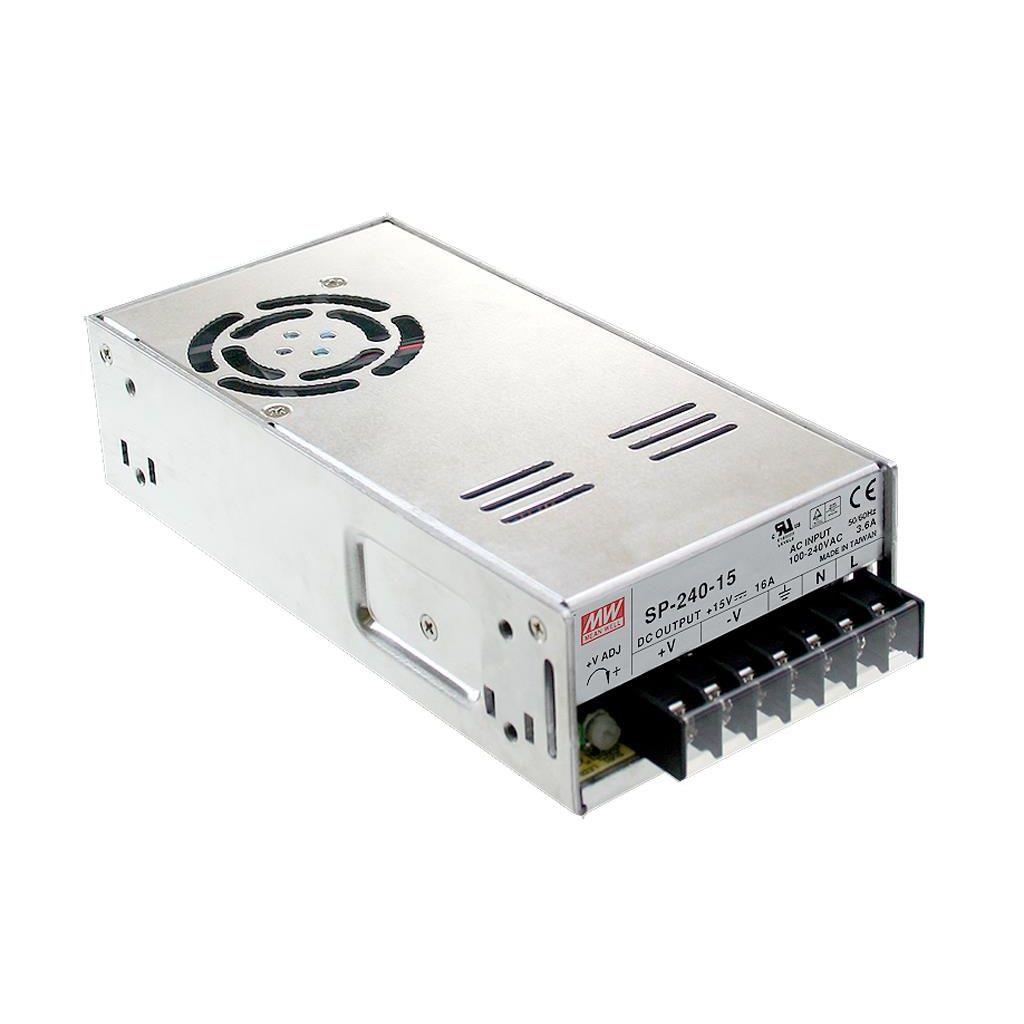

SP-240-5

AC-DC Enclosed power supply; Output 5Vdc at 45A; PFC; forced air cooling; SP-240-5 is succeeded by RSP-200-5.

MEAN WELL

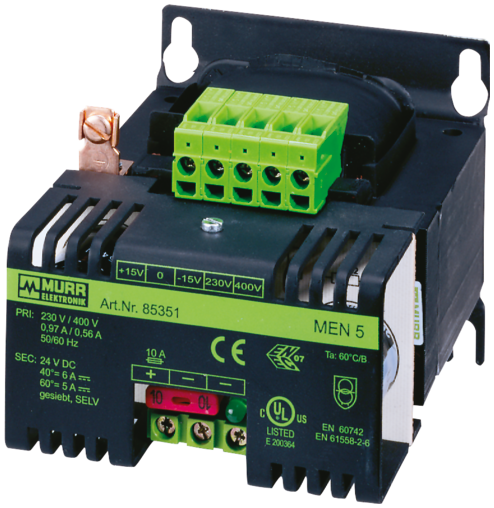

85350

85350 Murrelektronik - MEN POWER SUPPLY 1/2-PHASE, SMOOTHED, IN: 230/400+/-15VAC OUT: 24V/2,5ADC

Murr Elektronik

RS-75-48

AC-DC Single Output Enclosed power supply; Output 48VDC Single Output at 1.6A; free air convection

MEAN WELL

S8FS-G30015CD

S8FS-G Switch Mode Power Supply

Omron

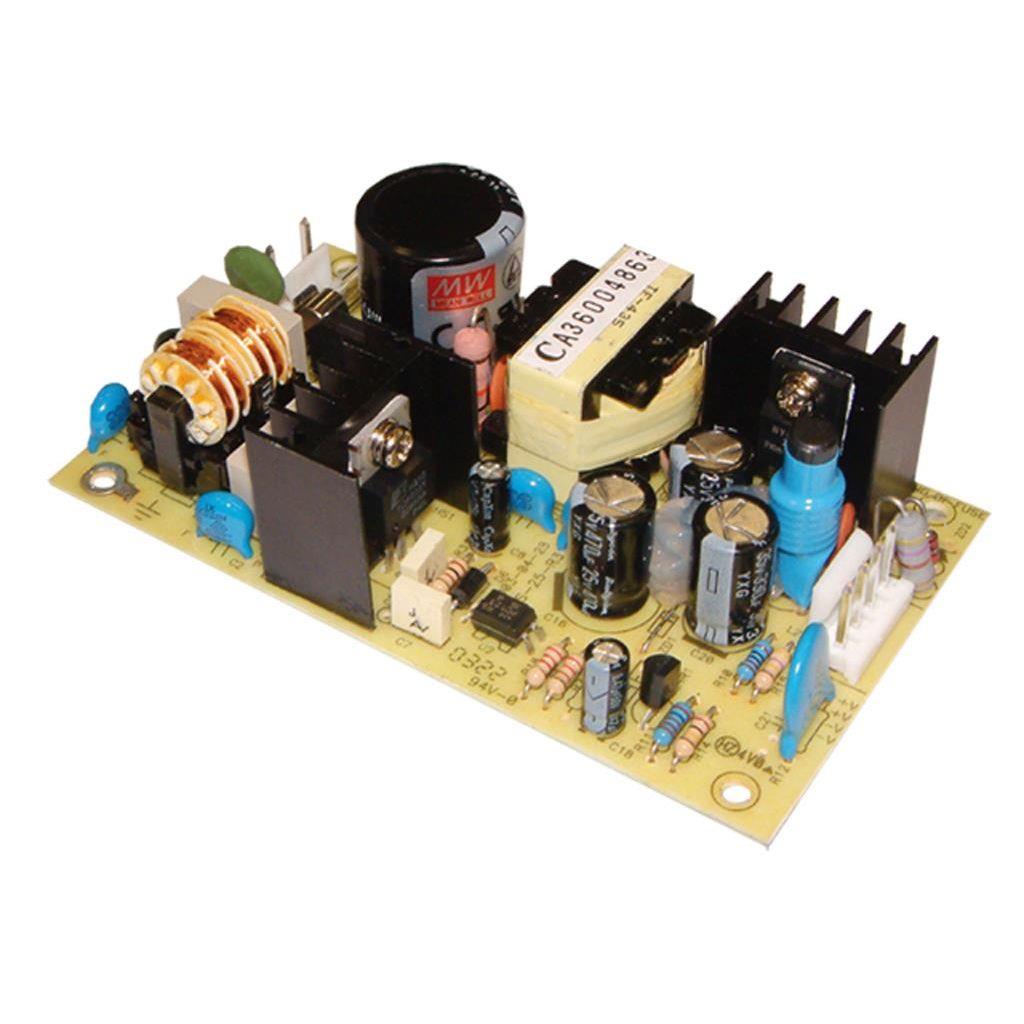

PS-25-24

AC-DC Single output Open frame power supply; Output 24Vdc at 1A; PS-25-24 is succeeded by EPS-25-24.

MEAN WELL

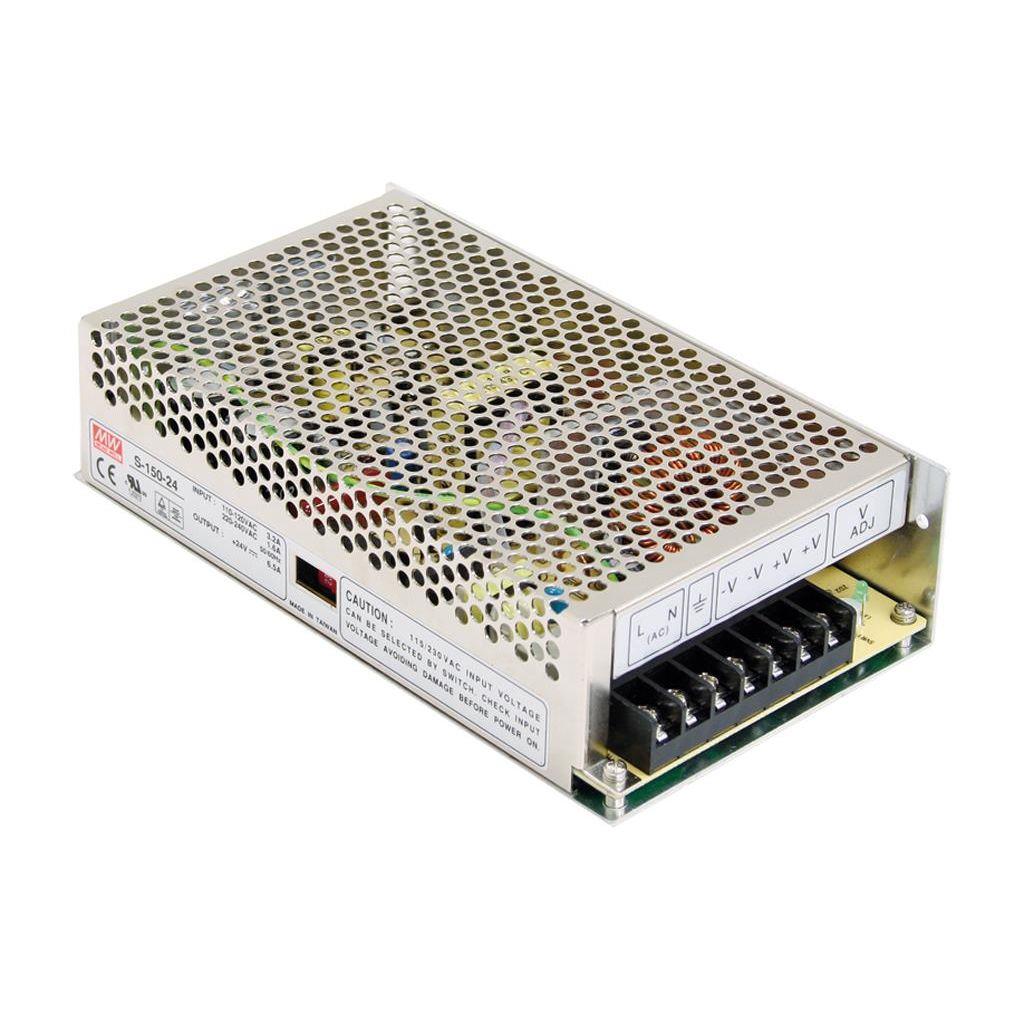

S-150-13.5

AC-DC Enclosed power supply; Output +13.5Vdc at 11.2A; S-150-13.5 is succeeded by LRS-150-12.

MEAN WELL

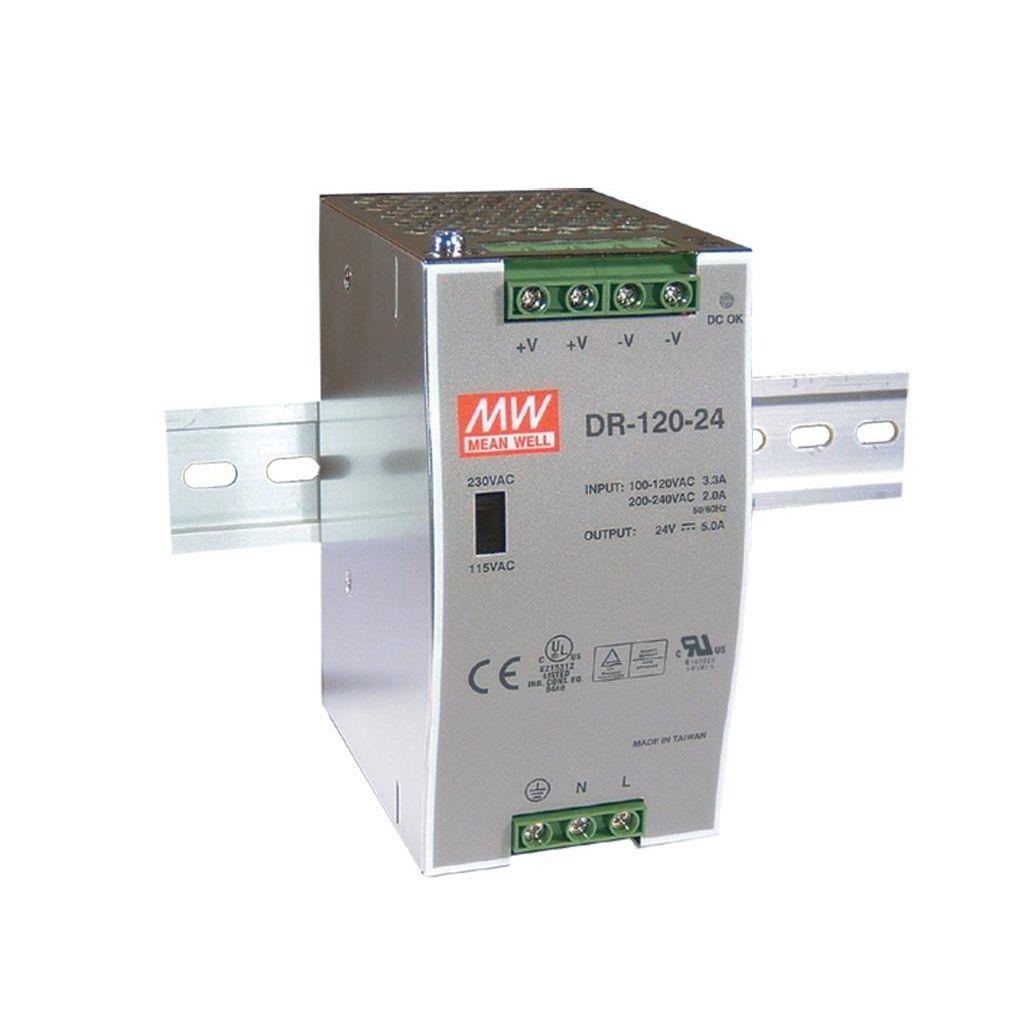

DR-120-12

AC-DC Industrial DIN rail power supply; Output 12Vdc at 10A; metal case; DR-120-12 is succeeded by NDR-120-12.

MEAN WELL

HEP-1000-100CAN

AC-DC Single output industrial power supply with PFC; Output 100Vdc at 10A; Input-output by terminal block; remote ON/OFF and DC OK signal; CANBus and PV/PC programmable

MEAN WELL

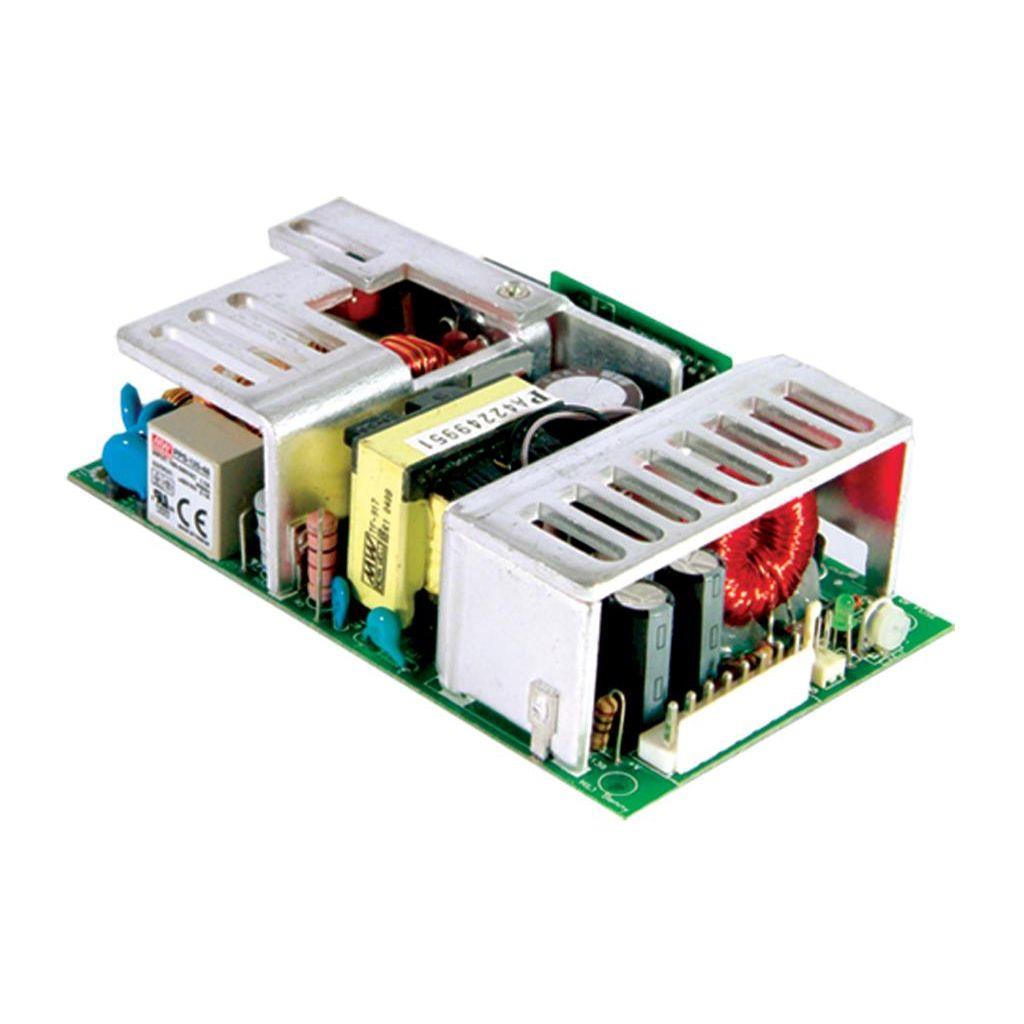

PPT-125C

AC-DC Triple output Open frame power supply; Output 5Vdc at 13.75A +15Vdc at 3.13A -15Vdc at 0.63A

MEAN WELL

722784

722784 LUTZE - Switch Mode Power Supply CPSB1-120-48R, Single-phase

Lutze

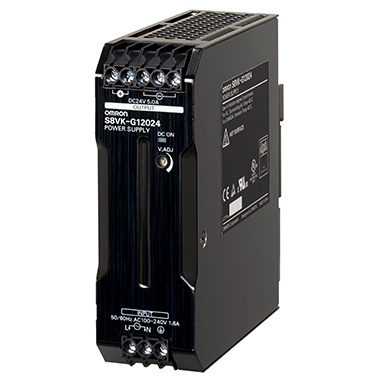

S8VK-G01512

S8VK-G Switch Mode Power Supply

Omron

QS20.361

PULS QS20.361 is a power supply unit designed for AC/DC conversion with a 50% power reserve, suitable for DIN rail mounting. It operates within an ambient air temperature range of -25 to +70°C and features a DC-OK relay contact output for monitoring purposes. The unit provides a rated current of 13.3A at 36Vdc and 11.4A at 42Vdc, with spring-clamp connections facilitating secure and reliable connectivity. It supports a wide supply voltage range from 85Vac to 264Vac across various nominal values and from 88Vdc to 188Vdc, ensuring flexibility across different power networks. The QS20.361, part of the Q-series, measures 82mm in width, 124mm in height, and 127mm in depth, housed in a durable aluminium casing. It delivers a rated power of 480W, with a short-term capacity of 720W for up to 4 seconds, and an adjustable output voltage between 36Vdc and 42Vdc. Protection features include output overvoltage protection and active input inrush current limiting, alongside capabilities for overload and short-circuit management. The unit is designed for both single-phase AC or DC networks and offers high efficiency rates up to 0.94 depending on the input voltage. It also allows for series or parallel operation to increase output power, with specific attention to maintaining uniform output voltage across paralleled units. The QS20.361 exhibits a low power dissipation, high electrical durability across various conditions, and minimal ripple, alongside a significant output capacitance of 8500µF, ensuring stable and consistent power supply performance.

Puls

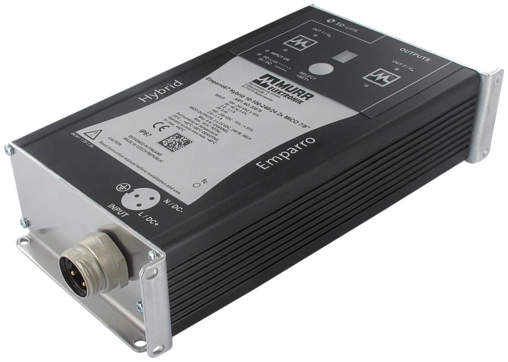

85676

85676 Murrelektronik - EMPARRO67 HYBRID POWER SUPPLY 1-PHASE,ELECTRONIC AUXILIARY CIRCUIT 2-, CHANNELS, IN: 100-240VAC OUT: 24VDC/MAX. 10A (1-8/CHANNEL), PROTECTION CLASS IP67, IO-LINK

Murr Elektronik

S8VK-G06012-400

S8VK-G Switch Mode Power Supply

Omron

RPS-400-18-TF

AC-DC Open frame Medical power supply; Output 18Vdc at 22.3A; EN60601 2xMOPP; top fan with cover

MEAN WELL

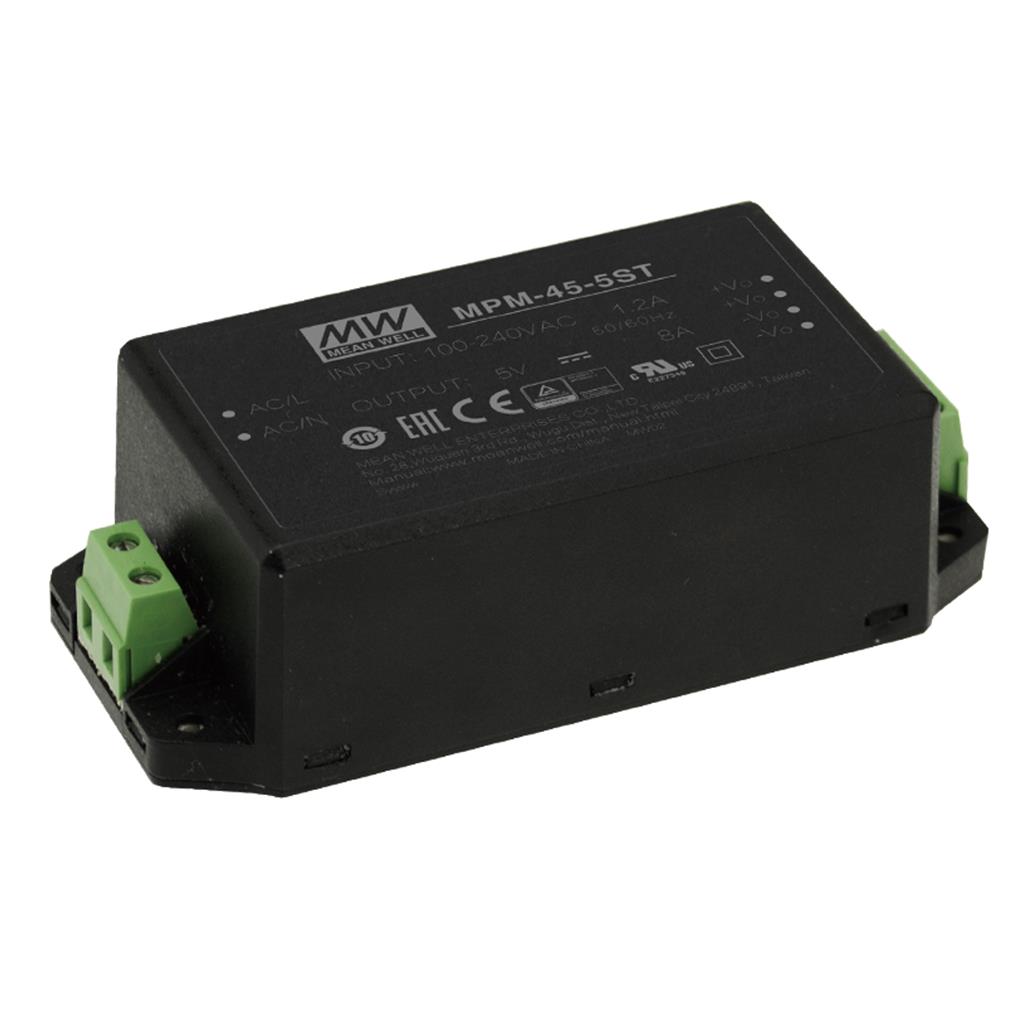

MPM-45-48ST

AC-DC Single output Medical Encapsulated power supply; Output 48Vdc at 0.94A; Screw terminal block; 2xMOPP

MEAN WELL

CP10.242

PULS CP10.242 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and offers various current consumption rates depending on the input: 1.13A with 230Vac input, 2.15A with 120Vac input, 2.6A with 100Vac input, 2.35A with 110Vdc input, and 0.84A with 300Vdc input, all to achieve a 24Vdc / 10A output, with a peak inrush current of 11A at 230Vac input and 7A at 120Vac input. The unit has an IP20 degree of protection and showcases high efficiency rates of 0.952 at 230Vac input and 0.936 at 120Vac input. Its dimensions are W39mm x H124mm x D117mm. The CP10.242 features a start-up delay of 240-300ms and a rise time of 30ms to 160ms depending on the input and load capacitance. It includes protection functions such as output overvoltage, overload/short-circuit, and over-temperature protection with automatic restart. The unit supports series/parallel operation for increased output voltages or power, and redundancy for higher system availability. It is resistant to back-feeding loads up to 35V. Power dissipation/losses are 12.1W and 16.4W for 230Vac and 120Vac inputs, respectively, under full output load. The output stage capacitance is 4400µF. Electrical durability varies with conditions, reaching up to 499,000 hours at 40°C with a 12A output and 1AC 230Vac input. The ripple is 50mVpp. This AC/DC power supply unit is part of the CP-series, designed with ATEX approval, enhanced DC input, 20% power reserve, and a DC-OK relay contact output. Connection is made via screw-clamp connections. It accepts a wide range of supply voltages, both AC (85Vac-264Vac) and DC (88Vdc-180Vdc), and delivers a rated power of 288W at -25 to +45°C, 240W at -25 to +60°C, and 180W at +70°C, with an adjustable output voltage of 24Vdc-28Vdc. The hold time is 37ms at 120/230Vac input.

Puls
