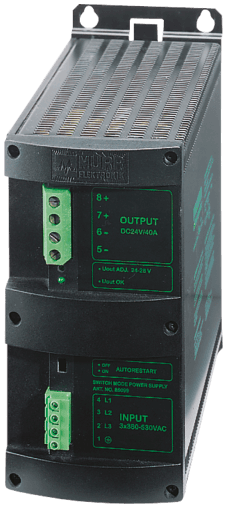

85099 Murr Elektronik AC/DC Power Supplies
Part#:85099
Manufacturer:Murr Elektronik
Alt. Part#:85004
Product Lifecycle:Active
Get a quick Quote!
85099 Murrelektronik - MCS POWER SUPPLY 3-PHASE, IN: 360-550VAC OUT: 24-28V/40ADC
About the manufacturer: Murr Elektronik is one of the manufacturers that offers AC/DC Power Supplies that you can order at marketplace.quotebeam.com. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.
Check out the 85099 Murr Elektronik price in the box on the right side or send a quick quote.
Product Details
- Weight4500 g
- SeriesTransformators/Power Supplies
- Output voltage 24 V DC (SELV), ±1%; 24...28 V adjustable
- Input voltage 3× 360...550 V AC
- Efficiency 91%
- Primary fusing external max. 3× 4 A
- Relative humidity 5...95%, no condensation
- Mains failure bridging time max. 8 ms (440 V AC)
- Temperature range 0...+60 °C (storage temperature -25...+85 °C)
- Frequency 50...60 Hz
- Standards IEC 61010-2-201, EN 61204-3, EN 55022 B
- Input current 3× 1.7 A
- Parallel usage/serial usage max. 5 units/max. 2 units
- Product article number of manufacturer 85099
- Dimensions H×W×D 242×106×270 mm
- Unit protection short-circuit and overload protected
- Selectable switch-off mode front sided plug link (automatic re-start or definite shut-off)
- Output current 40 A (+60 °C); 46 A (+40 °C)
- Mounting method Screw fixing M4, 4 pcs. in rectangle 81×230 mm
- Spikes max. 150 mV ss/pp
- Inrush current after 1 ms max. 4 A
- LED display LED (green) for output voltage
- Ripple max. 20 mV eff/rms
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
85099 Description
85099 Murrelektronik - MCS POWER SUPPLY 3-PHASE, IN: 360-550VAC OUT: 24-28V/40ADC
Related documents 85099 Specs
