56006 Murr Elektronik I/O Systems
Part#:56006
Manufacturer:Murr Elektronik
Product Lifecycle:Active
Get a quick Quote!

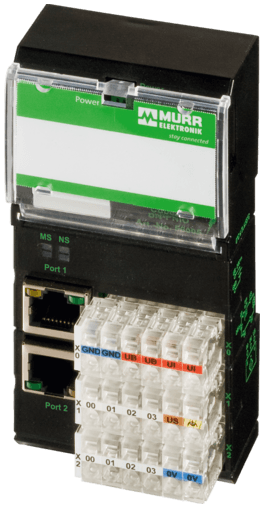

56006 Murrelektronik - CUBE20 BN-PNIO DI8
About the manufacturer: Murr Elektronik is one of the manufacturers that offers I/O Systems that you can order at marketplace.quotebeam.com. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.
Check out the 56006 Murr Elektronik price in the box on the right side or send a quick quote.
Product Details
- Weight170 g
- SeriesField Bus System
- Protection IP20
- Machine Option Management yes
- Product article number of manufacturer 56006
- Type PNP (EN 61131-2)
- I/O capacity max. 1 024 Byte (Input), max. 1 024 Byte (Output)
- Monitoring - under voltage yes
- Current consumption max. 150 mA
- Sensor-system/actuator supply 4× spring clamp plug-in terminals, max. 2.5 mm² (max. 12 A)
- Communication status via LED and BUS
- Dimensions H×W×D 117×56×47 mm
- I/O ports 8× spring clamp plug-in terminals, max. 2.5 mm²
- Monitoring - no voltage no
- Sensor supply US 24 V DC (EN 61131-2), max. 700 mA per module
- Fieldbus Ethernet 10/100 Mbit/s; 2× RJ45 (female)
- Diagnostic via LED per module
- Temperature range 0...+55 °C (storage temperature -20...+85 °C)
- Specification V2.2, Conformance Class B
- Operating voltage 24 V DC (EN 61131-2)
- Module capacity max. 15
- Addressing DCP
- Input filter 1 ms
- Internal system connection 4× spring clamp plug-in terminals, max. 2.5 mm² (max. 12 A)
- Mounting method DIN-rail mountable (EN 60715)
- Terminal row X3 (4 channels) Input
- Diagnostic via BUS per module and channel
- Galvanic isolation 500 V DC between I/O and system electronics
- Terminal row X2 (4 channels) Input
- Short-circuit and overload yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
56006 Description
56006 Murrelektronik - CUBE20 BN-PNIO DI8
Related documents 56006 Specs
1-year warranty
