7000-18021-2161000 Murr Elektronik Cable Assemblies
Part#:7000-18021-2161000
Manufacturer:Murr Elektronik
Product Lifecycle:Active
Get a quick Quote!

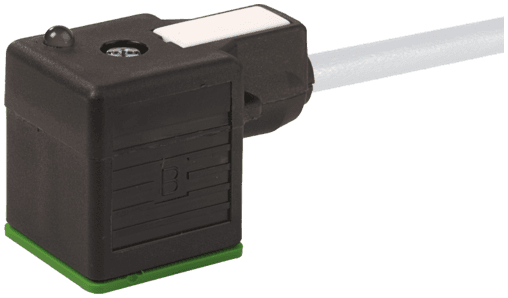

7000-18021-2161000 Murrelektronik - MSUD VALVE PLUG FORM A 18MM, PVC 3X0.75 GRAY, 10m
About the manufacturer: Murr Elektronik is one of the manufacturers that offers Cable Assemblies that you can order at marketplace.quotebeam.com. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.
Check out the 7000-18021-2161000 Murr Elektronik price in the box on the right side or send a quick quote.
Product Details
- Weight588 g
- SeriesConnector Systems
- Operating current per contact max. 4 A
- Additional suppressor Diode/Z-Diode
- Construction (core) 24× 0.2 mm (multi-strand wire class 5)
- Material (wire) Cu wire, bare
- Stranding combination 3 wires twisted
- Color (jacket) gray
- Material property (jacket) CFC-, cadmium-, silicone- and lead-free
- Test voltage 3000 V AC
- Temperature range (fixed) -30...+70 °C
- LED display yellow
- Switch off delay time max. 20 ms
- Cable weight [g/m] 63,8 g
- Cable Type 1 (PVC)
- Shore hardness (wire isolation) 43 ±5 D
- Color/numbering of wires bk numbered, gnye longitudinally striped
- chemical resistance good resistance to oil, gasoline and chemicals
- Bend radius (fixed) 5× outer Ø
- Temperature range (mobile) -5...+70 °C
- Locking of ports M3 (recommended torque 0.4 Nm)
- Temperature range -25...+85 °C, depending on cable quality
- Approval (cable) CE conform
- Shield no
- Outer-Ø (jacket) 5.9 mm ±5%
- Product article number of manufacturer 7000-18021-2161000
- Cable length 10 m
- Form 18021
- Protection IP67 inserted and tightened (EN 60529)
- Material group IEC 60664-1, category I
- Material (gasket) PUR
- Material (wire isolation) PVC
- Switch off peak max. 55 V
- Current consumption max. 15 mA
- Locking material Steel (galvanized)
- Cable identification 216
- Single wire Ø (core) 0.2 mm
- Diameter (core) 3× 0.75 mm²
- Material property (wire isolation) CFC-, cadmium-, silicone- and lead-free
- Shore hardness (jacket) 80 ±5 A
- Current load capacity to DIN VDE 0298-4
- Bend radius (moving) 10× outer Ø
- Operating voltage 24 V AC ±20% / DC ±25%
- Rated surge voltage 0.8 kV
- Housing Black plastic (gray on request)
- Pollution Degree 3
- AWG similar to AWG 18
- Resistor (core) max. 26 Ω/km (20 °C)
- Wire-Ø incl. isolation 1.8 mm ±5%
- Material (jacket) PVC
- Nominal voltage 300/500 V AC
- Material PBT
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
7000-18021-2161000 Description
7000-18021-2161000 Murrelektronik - MSUD VALVE PLUG FORM A 18MM, PVC 3X0.75 GRAY, 10m
