10036ET3E405JP-W22 WEG AC Motors
Part#:10036ET3E405JP-W22
Manufacturer:WEG
Alt. Part#:7909018123691
Product Lifecycle:Active
Get a quick Quote!

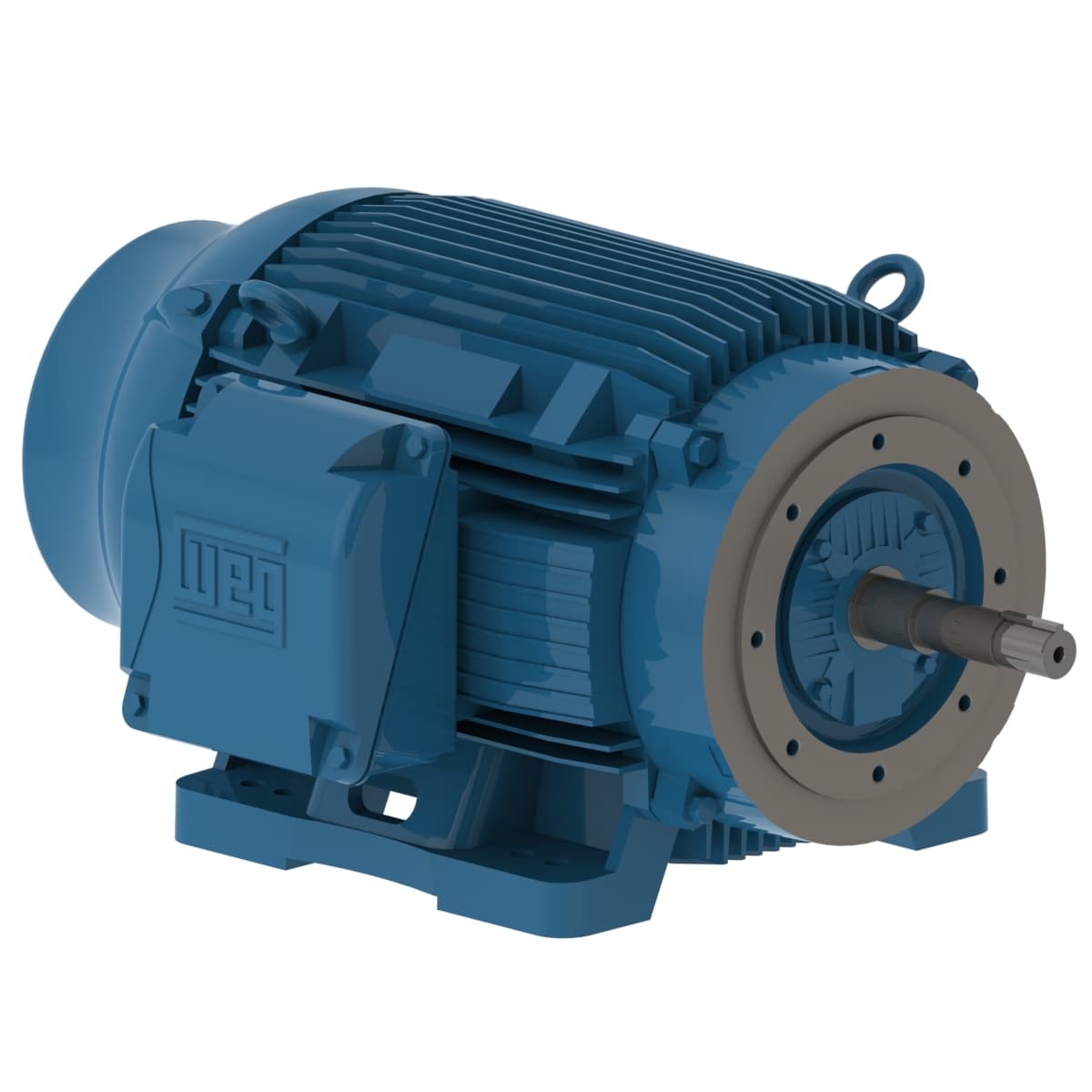

W22 Close Coupled Pump JP NEMA Premium Efficiency 100 HP 2P 404/5JP 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 10036ET3E405JP-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating100 HP
- Rated Speed3545 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeC
- LRC 6.5x(Code G)
- Starting Method Direct On Line
- Number of poles 2
- Frequency 60 Hz
- Locked rotor time 25s (cold) 14s (hot)
- Degree of Protection IP55
- Synchronous speed 3600 rpm
- Rated speed 3545 rpm
- Breakdown torque 260 %
- Ambient temperature -20°C to +40°C
- Flange C
- Frame 404/5JP
- Insulation Class F
- Mounting F-1
- Terminal box¹ Left position
- Rated current 224/112 A
- Moment of inertia (J) 13.2 sq.ft.lb
- Enclosure IC411 - TEFC
- Voltage 230/460//380 V
- Rated voltage 230/460 V
- Altitude 1000 m.a.s.l.
- Slip 1.53 %
- Temperature rise 80 K
- Noise level² 79.0 dB(A)
- L. R. Amperes 1456/728 A
- Rated torque 148 ft.lb
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Output 100 HP (75 kW)
- No load current 52.0/26.0 A
- Rotation¹ Both (CW and CCW)
- Output rating 100 HP
- Number of Poles 2
- Locked rotor torque 240 %
- Design B
- Approx. weight³ 1128 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
