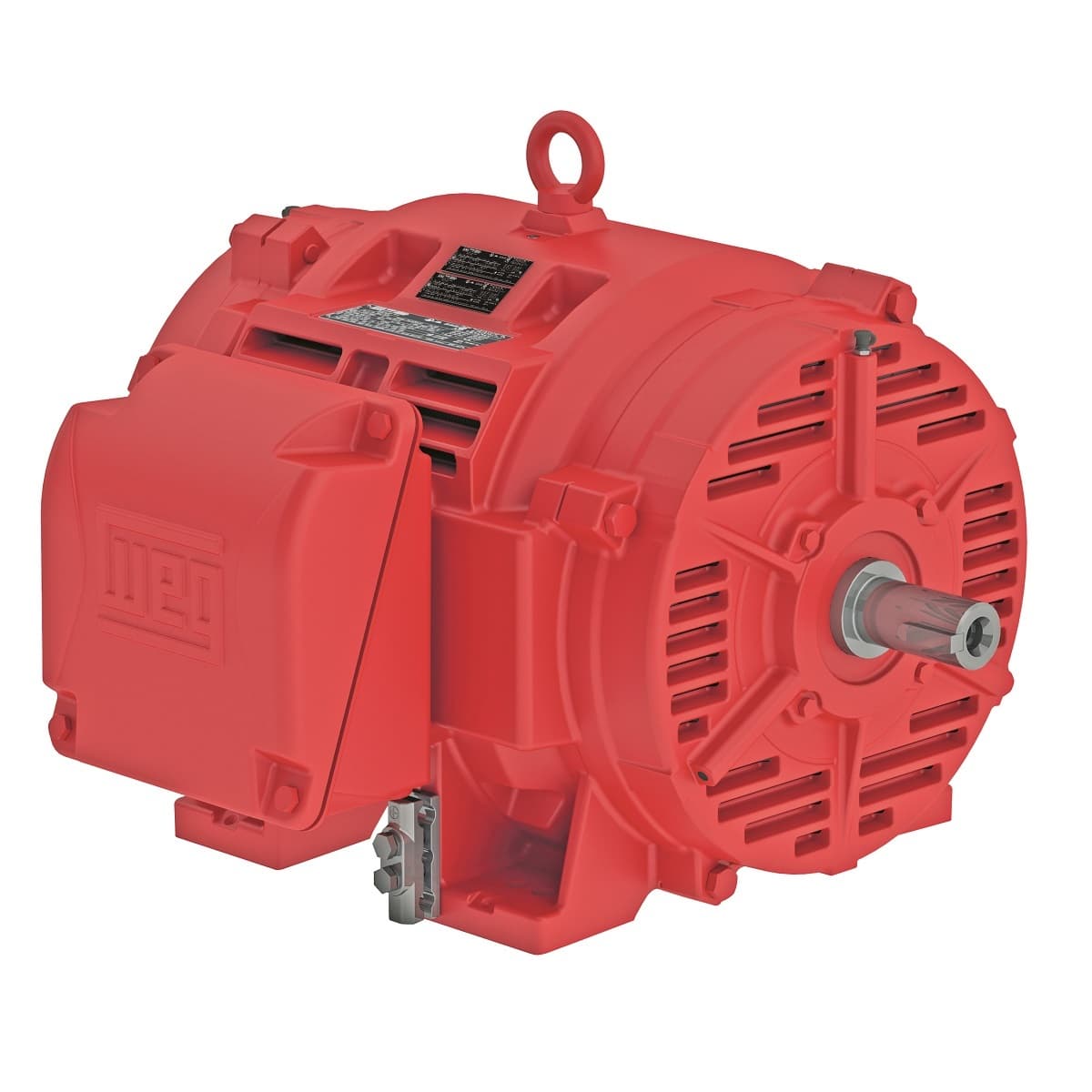

10036OP3JFP365TS-W40 WEG AC Motors
Part#:10036OP3JFP365TS-W40
Manufacturer:WEG
Alt. Part#:7909323928554
Product Lifecycle:Active
Get a quick Quote!
W40 High Efficiency 100 HP 2P 364/5TS 3Ph 380 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 10036OP3JFP365TS-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating100 HP
- Rated Speed3550 rpm
- Number of Poles2 Pole
- Voltage380 V
- Flange TypeWithout
- Rated current 139 A
- Starting Method Direct On Line
- Number of poles 2
- Number of Poles 2
- Breakdown torque 229 %
- Temperature rise 80 K
- Flange Without
- Frame 364/5TS
- No load current 31.5 A
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Rated voltage 380 V
- Moment of inertia (J) 6.80 sq.ft.lb
- Approx. weight³ 740 lb
- Voltage 380 V
- Slip 1.39 %
- Service factor 1.15
- Enclosure IC01 - ODP
- Rated torque 148 ft.lb
- Rotation¹ Both (CW and CCW)
- L. R. Amperes 794 A
- Design B
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- Rated speed 3550 rpm
- Locked rotor time 27s (cold) 15s (hot)
- Degree of Protection IP23
- Output rating 100 HP
- Output 100 HP (75 kW)
- LRC 5.7x(Code F)
- Duty Cycle Cont.(S1)
- Synchronous speed 3600 rpm
- Frequency 60 Hz
- Locked rotor torque 170 %
- Mounting F-1
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 10036OP3JFP365TS-W40 Specs
1-year warranty
