10036OP3EFP365JPV-W4 WEG AC Motors
Part#:10036OP3EFP365JPV-W4
Manufacturer:WEG
Alt. Part#:7909492966043
Product Lifecycle:Active
Get a quick Quote!

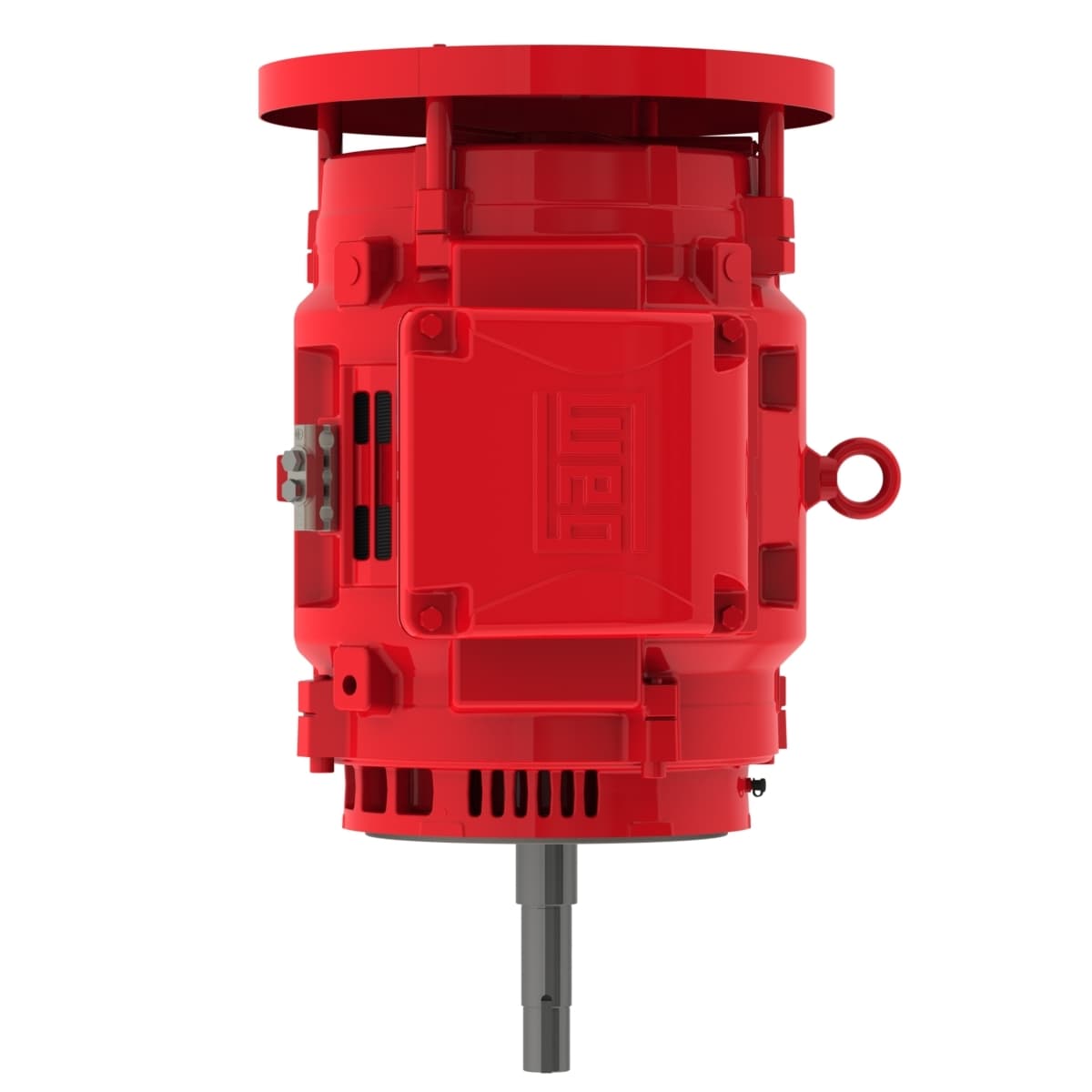

W40 JP Pump High Efficiency 100 HP 2P 364/5JP 3Ph 230/460//380 V 60//50 Hz IC01 - ODP - Footless
Check out the 10036OP3EFP365JPV-W4 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating100 HP
- Rated Speed3550 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeC
- LRC 5.7x(Code F)
- Service factor 1.15
- Output rating 100 HP
- Rated current 230/115 A
- No load current 52.0/26.0 A
- Enclosure IC01 - ODP
- Rated voltage 230/460 V
- Locked rotor time 27s (cold) 15s (hot)
- Duty Cycle Cont.(S1)
- Synchronous speed 3600 rpm
- Output 100 HP (75 kW)
- Breakdown torque 229 %
- Ambient temperature -20°C to +40°C
- Degree of Protection IP23
- L. R. Amperes 1311/656 A
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Flange C
- Approx. weight³ 773 lb
- Number of Poles 2
- Temperature rise 80 K
- Number of poles 2
- Slip 1.39 %
- Locked rotor torque 170 %
- Rotation¹ Both (CW and CCW)
- Frame 364/5JP
- Design B
- Standard NEMA MG-1
- Frequency 60 Hz
- Moment of inertia (J) 6.80 sq.ft.lb
- Starting Method Direct On Line
- Mounting W-6
- Terminal box¹ Left position
- Rated speed 3550 rpm
- Rated torque 148 ft.lb
- Voltage 230/460//380 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
