10036OT3H365JPV-W40 WEG AC Motors
Part#:10036OT3H365JPV-W40
Manufacturer:WEG
Alt. Part#:7909492966180
Product Lifecycle:Active
Get a quick Quote!

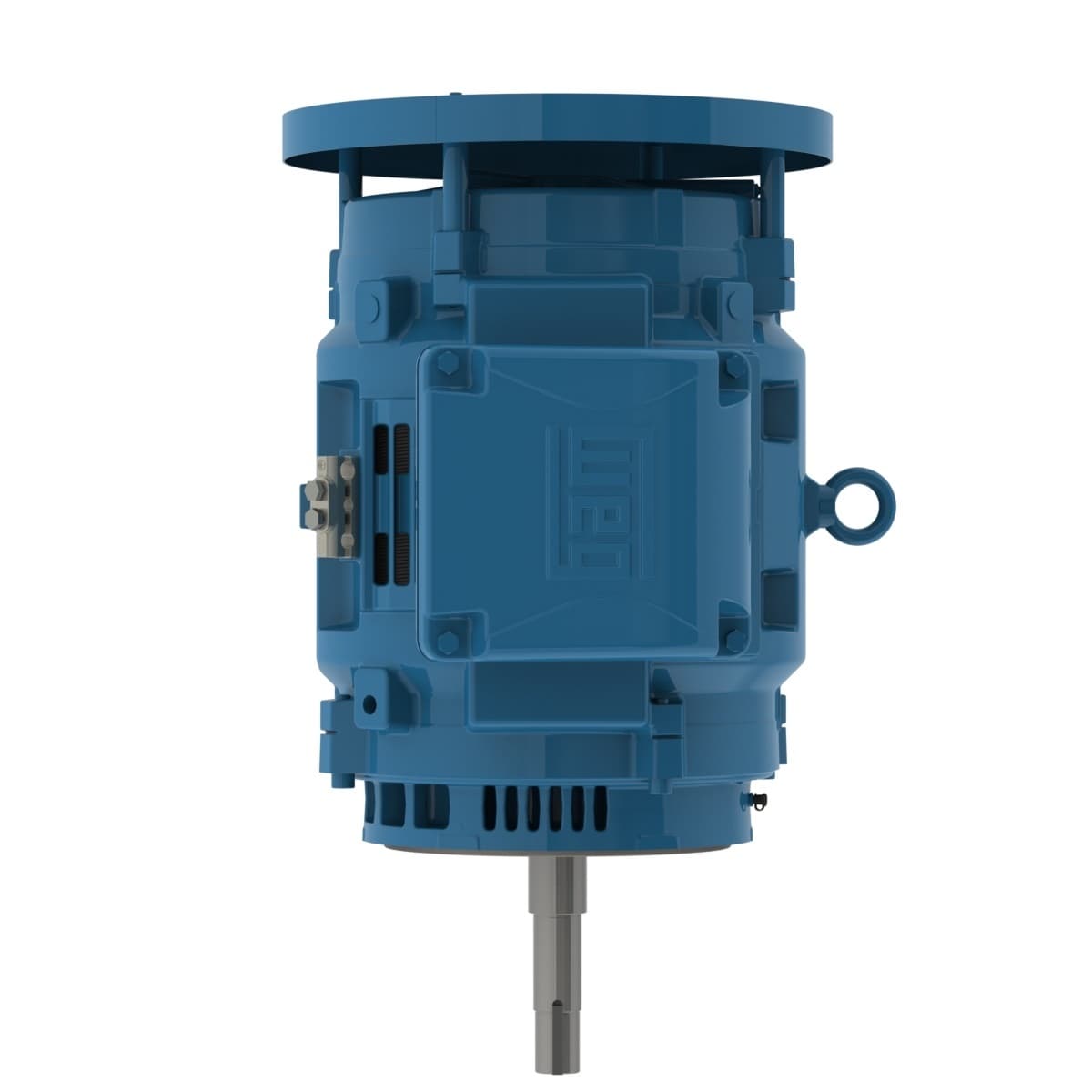

W40 JP Pump NEMA Premium Efficiency 100 HP 2P 364/5JP 3Ph 575 V 60 Hz IC01 - ODP - Footless
Check out the 10036OT3H365JPV-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating100 HP
- Rated Speed3555 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeC
- Rated speed 3555 rpm
- Rated torque 148 ft.lb
- Ambient temperature -20°C to +40°C
- Output 100 HP (75 kW)
- Locked rotor time 23s (cold) 13s (hot)
- Starting Method Direct On Line
- Noise level² 84.0 dB(A)
- Number of Poles 2
- Breakdown torque 229 %
- Degree of Protection IP23
- Rated voltage 575 V
- Insulation Class F
- Mounting W-6
- Flange C
- Slip 1.25 %
- LRC 6.6x(Code G)
- Design B
- Locked rotor torque 180 %
- Enclosure IC01 - ODP
- Approx. weight³ 740 lb
- Terminal box¹ Left position
- Synchronous speed 3600 rpm
- Frame 364/5JP
- L. R. Amperes 612 A
- Moment of inertia (J) 7.20 sq.ft.lb
- Duty Cycle Cont.(S1)
- Temperature rise 80 K
- Standard NEMA MG-1
- Voltage 575 V
- Output rating 100 HP
- Frequency 60 Hz
- Rated current 92.8 A
- No load current 23.6 A
- Service factor 1.25
- Altitude 1000 m.a.s.l.
- Rotation¹ Both (CW and CCW)
- Number of poles 2
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 10036OT3H365JPV-W40 Specs
