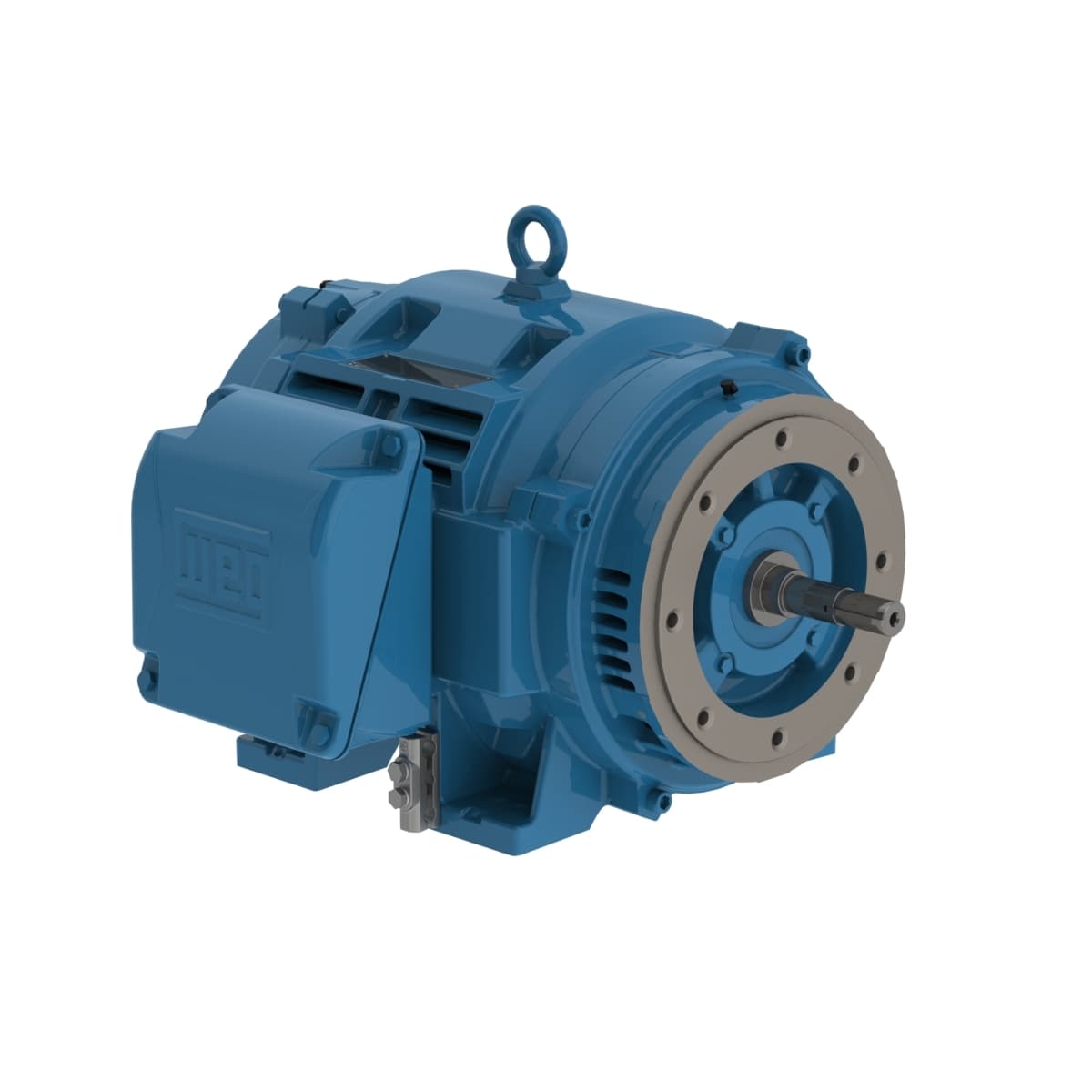

10036OT3E365JM-W40 WEG AC Motors
Part#:10036OT3E365JM-W40
Manufacturer:WEG
Alt. Part#:7909323369753
Product Lifecycle:Active
Get a quick Quote!
W40 JM Pump NEMA Premium Efficiency 100 HP 2P 364/5JM 3Ph 230/460//380 V 60//50 Hz IC01 - ODP - Foot-mounted
Check out the 10036OT3E365JM-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating100 HP
- Rated Speed3555 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeC
- LRC 6.6x(Code G)
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Frequency 60 Hz
- Locked rotor torque 180 %
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Rated current 232/116 A
- Design B
- Temperature rise 80 K
- Output rating 100 HP
- Number of Poles 2
- Slip 1.25 %
- Service factor 1.25
- Approx. weight³ 774 lb
- Flange C
- Rated speed 3555 rpm
- Moment of inertia (J) 7.20 sq.ft.lb
- Degree of Protection IP23
- L. R. Amperes 1531/766 A
- Ambient temperature -20°C to +40°C
- Noise level² 84.0 dB(A)
- Output 100 HP (75 kW)
- Locked rotor time 23s (cold) 13s (hot)
- Mounting F-1
- Terminal box¹ Left position
- Rated torque 148 ft.lb
- Altitude 1000 m.a.s.l.
- Number of poles 2
- No load current 59.0/29.5 A
- Starting Method Direct On Line
- Voltage 230/460//380 V
- Frame 364/5JM
- Rated voltage 230/460 V
- Breakdown torque 229 %
- Enclosure IC01 - ODP
- Synchronous speed 3600 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 10036OT3E365JM-W40 Specs
1-year warranty
