10034801 WEG AC Motors
Part#:10034801
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

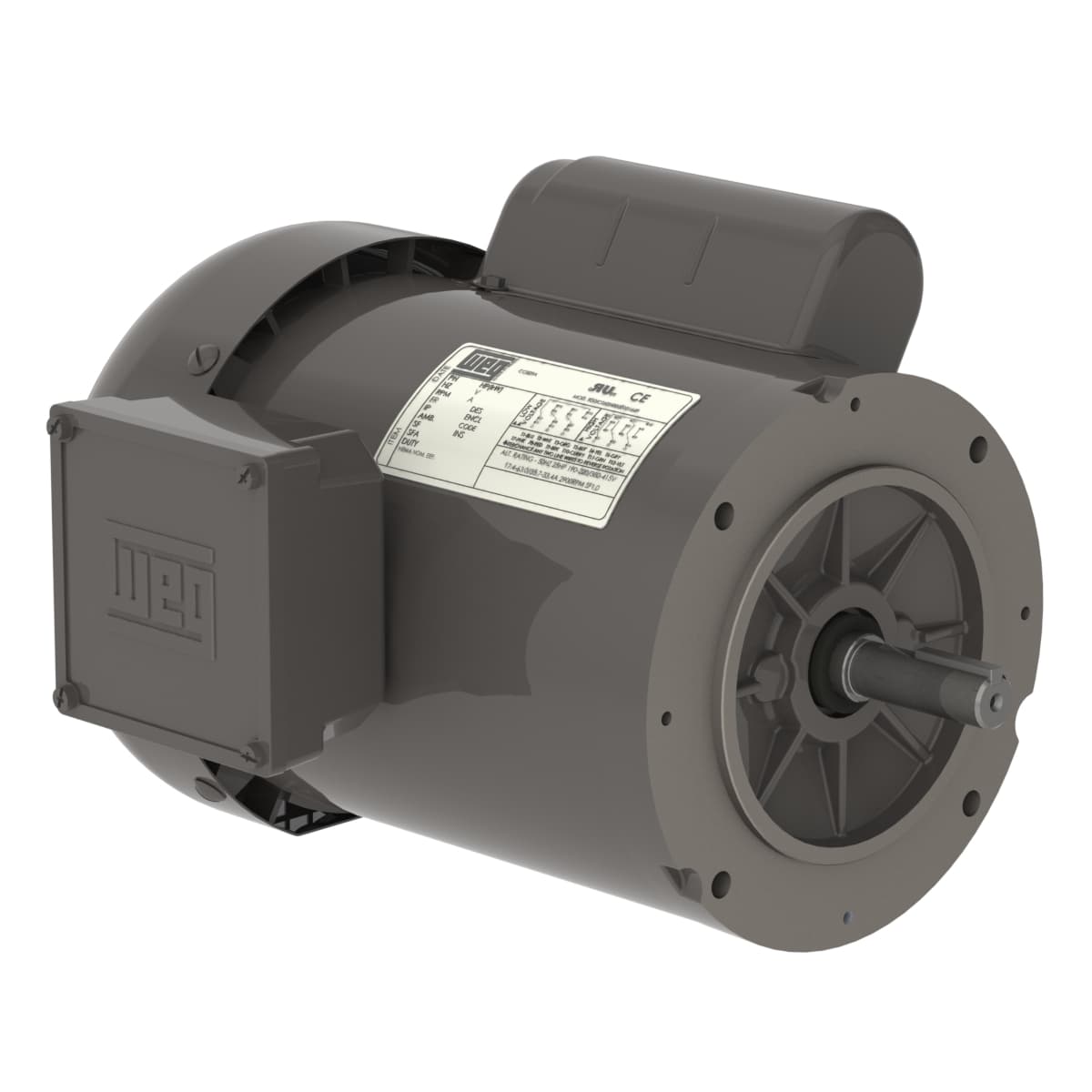

General 0.33 HP 4P B56C 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Footless
Check out the 10034801 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated current 5.60/2.70-2.80 A
- Locked rotor torque 340 %
- Starting Method Direct On Line
- Ambient temperature -20°C to +40°C
- Voltage 115/208-230 V
- Slip 2.78 %
- Number of Poles 4
- Service factor 1.15 (1.00 @ 208V)
- Enclosure IC411 - TEFC
- Flange FC 149
- L. R. Amperes 32.5/15.7-16.2 A
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Output rating 0.33 HP
- Rated speed 1750 rpm
- No load current 4.60/1.98-2.30 A
- Altitude 1000 m.a.s.l.
- Terminal box¹ Left position
- Output 0.33 HP (0.25 kW)
- Moment of inertia (J) 0.0624 sq.ft.lb
- Noise level² 55.0 dB(A)
- Breakdown torque 280 %
- Rated voltage 115/208-230 V
- Frequency 60 Hz
- LRC 5.8x(Code N)
- Degree of Protection IP55
- Approx. weight³ 22.8 lb
- Number of poles 4
- Rated torque 0.990 ft.lb
- Mounting F-1
- Frame B56C
- Locked rotor time 10s (cold) 6s (hot)
- Insulation Class B
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Synchronous speed 1800 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 10034801 Specs
