01036ST3QIE215T-W22 WEG AC Motors
Part#:01036ST3QIE215T-W22
Manufacturer:WEG
Alt. Part#:7891327130326
Product Lifecycle:Active
Get a quick Quote!

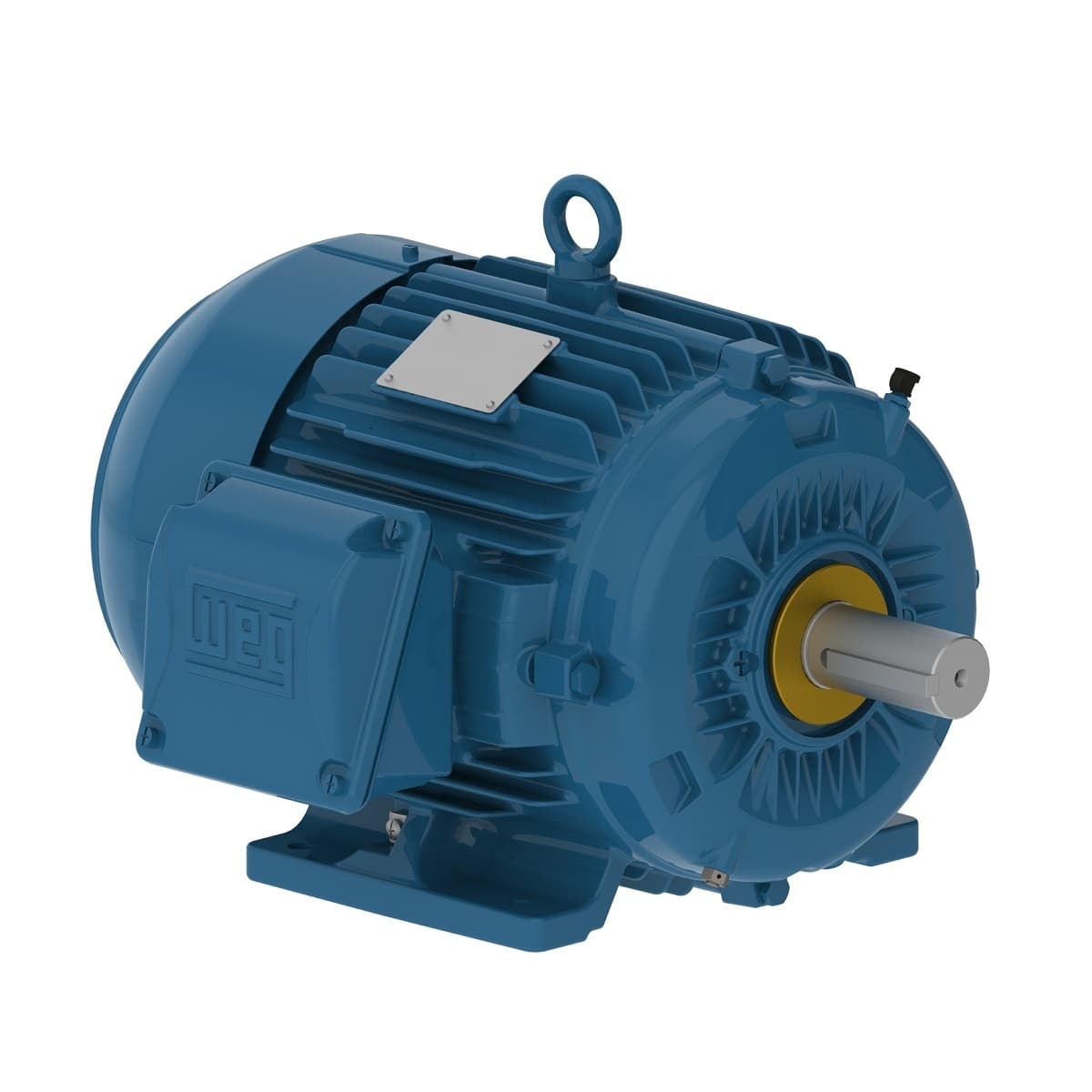

W22 IEEE 841 NEMA Premium Efficiency 10 HP 2P 213/5T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 01036ST3QIE215T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating10 HP
- Rated Speed3520 rpm
- Number of Poles2 Pole
- Voltage460 V
- Flange TypeWithout
- Locked rotor torque 220 %
- Mounting F-1
- Flange Without
- Frequency 60 Hz
- Service factor 1.25
- Noise level² 68.0 dB(A)
- Number of Poles 2
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- L. R. Amperes 84.5 A
- No load current 3.60 A
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- Rated voltage 460 V
- Rated speed 3520 rpm
- Locked rotor time 32s (cold) 18s (hot)
- Degree of Protection IP56
- Synchronous speed 3600 rpm
- LRC 7.2x(Code H)
- Temperature rise 80 K
- Output rating 10 HP
- Rated current 11.7 A
- Moment of inertia (J) 0.6362 sq.ft.lb
- Enclosure IC411 - TEFC
- Voltage 460 V
- Frame 213/5T
- Rated torque 14.9 ft.lb
- Duty Cycle Cont.(S1)
- Approx. weight³ 167 lb
- Output 10 HP (7.5 kW)
- Breakdown torque 290 %
- Starting Method Direct On Line
- Number of poles 2
- Slip 2.22 %
- Design B
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 01036ST3QIE215T-W22 Specs
1-year warranty
