01036OT3H213JP-SG WEG AC Motors
Part#:01036OT3H213JP-SG
Manufacturer:WEG
Alt. Part#:7899058013956
Product Lifecycle:Active
Get a quick Quote!

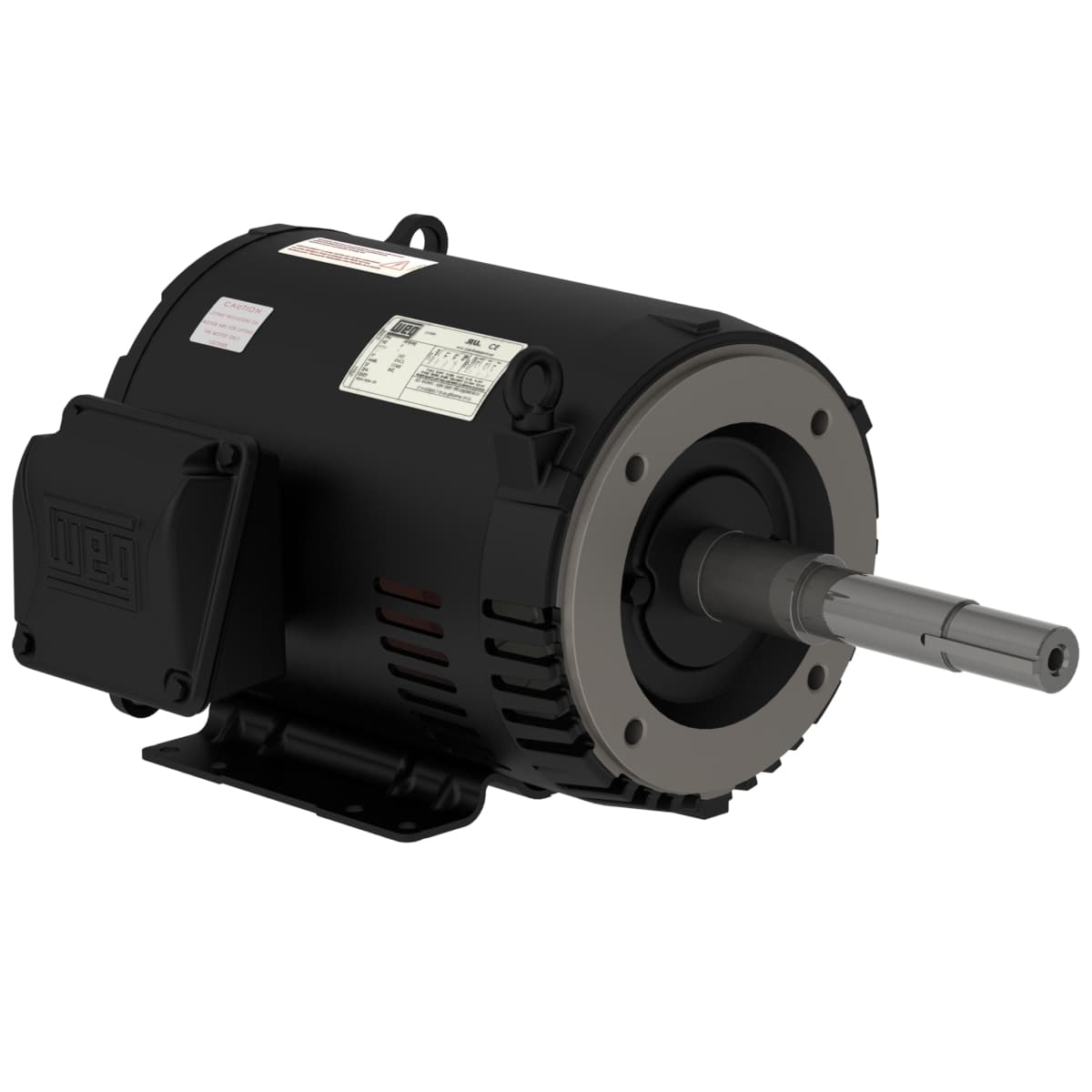

Rolled Steel JP Pump NEMA Premium Efficiency 10 HP 2P 213/5JP 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 01036OT3H213JP-SG WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating10 HP
- Rated Speed3535 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeC
- Frequency 60 Hz
- Design B
- Service factor 1.15
- Standard NEMA MG-1
- Frame 213/5JP
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Output rating 10 HP
- Number of Poles 2
- Moment of inertia (J) 0.4651 sq.ft.lb
- Noise level² 66.0 dB(A)
- Rated speed 3535 rpm
- Locked rotor time 19s (cold) 11s (hot)
- Duty Cycle Cont.(S1)
- Voltage 575 V
- Rated current 9.60 A
- Rated torque 14.9 ft.lb
- Altitude 1000 m.a.s.l.
- Number of poles 2
- L. R. Amperes 65.3 A
- No load current 3.73 A
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- LRC 6.8x(Code H)
- Starting Method Direct On Line
- Synchronous speed 3600 rpm
- Output 10 HP (7.5 kW)
- Temperature rise 80 K
- Approx. weight³ 117 lb
- Slip 1.81 %
- Locked rotor torque 200 %
- Enclosure IC01 - ODP
- Flange C
- Rated voltage 575 V
- Breakdown torque 280 %
- Mounting F-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 01036OT3H213JP-SG Specs
1-year warranty
