01036ES3ESA90LR WEG AC Motors
Part#:01036ES3ESA90LR
Manufacturer:WEG
Alt. Part#:7909322452548
Product Lifecycle:Active
Get a quick Quote!

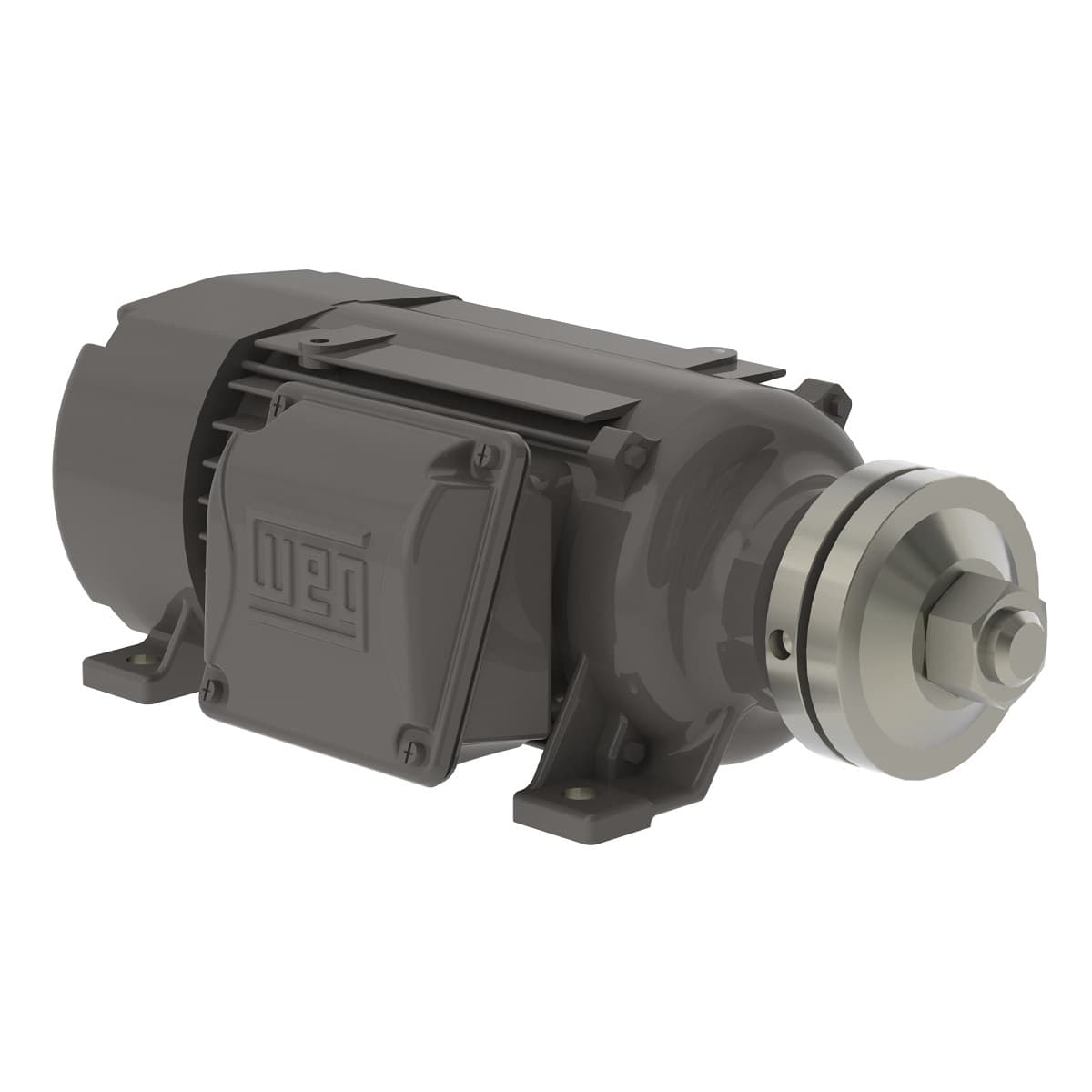

Saw Arbor Motor Standard Efficiency 10 HP 2P 90L/MS 3Ph 208-230/460 V 60 Hz IC411 - TEFC - B3R(D)
Check out the 01036ES3ESA90LR WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating10 HP
- Rated Speed3480 rpm
- Number of Poles2 Pole
- Voltage208-230/460 V
- Flange TypeWithout
- Rated current 27.2-24.6/12.3 A
- Locked rotor time 12s (cold) 7s (hot)
- Enclosure IC411 - TEFC
- Standard NEMA MG-1
- LRC 8.5
- Locked rotor torque 400 %
- Noise level² 68.0 dB(A)
- Output 10 HP (7.5 kW)
- Design N
- Ambient temperature -20°C to +40°C
- Number of poles 2
- Number of Poles 2
- Rated speed 3480 rpm
- Insulation Class F
- Moment of inertia (J) 0.3322 sq.ft.lb
- Starting Method Direct On Line
- Approx. weight³ 166 lb
- Terminal box¹ Left position
- Frequency 60 Hz
- Breakdown torque 420 %
- Duty Cycle S6
- Output rating 10 HP
- Frame 90L/MS
- Rated voltage 208-230/460 V
- No load current 0.000-8.99/4.50 A
- Rated torque 15.1 ft.lb
- Temperature rise 80 K
- Mounting B3R(D)
- Rotation¹ CCW
- Voltage 208-230/460 V
- Synchronous speed 3600 rpm
- L. R. Amperes 231-209/105 A
- Altitude 1000 m.a.s.l.
- Flange Without
- Slip 3.33 %
- Service factor 1.00
- Degree of Protection IP54
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 01036ES3ESA90LR Specs
1-year warranty
