01036ET3H215JM-SG WEG AC Motors
Part#:01036ET3H215JM-SG
Manufacturer:WEG
Alt. Part#:7909323794265
Product Lifecycle:Active
Get a quick Quote!

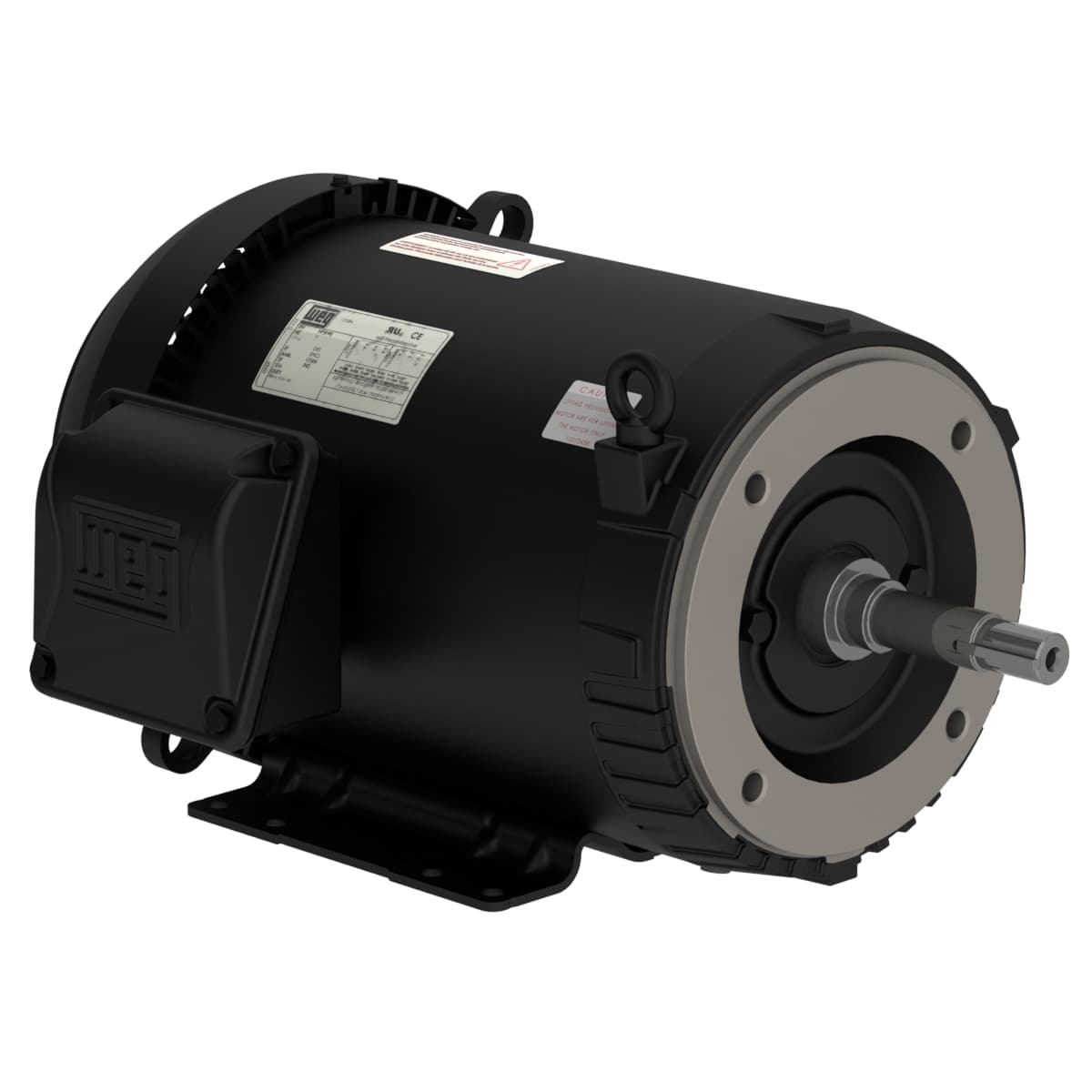

Rolled Steel JM Pump NEMA Premium Efficiency 10 HP 2P 213/5JM 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 01036ET3H215JM-SG WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating10 HP
- Rated Speed3530 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeC
- Rated voltage 575 V
- Locked rotor time 21s (cold) 12s (hot)
- Design B
- Rotation¹ Both (CW and CCW)
- Number of poles 2
- LRC 7.5x(Code H)
- Starting Method Direct On Line
- Standard NEMA MG-1
- Flange C
- Rated speed 3530 rpm
- Breakdown torque 300 %
- Altitude 1000 m.a.s.l.
- Noise level² 70.0 dB(A)
- Frame 213/5JM
- Rated torque 14.9 ft.lb
- Service factor 1.15
- Ambient temperature -20°C to +40°C
- Synchronous speed 3600 rpm
- Output 10 HP (7.5 kW)
- Duty Cycle Cont.(S1)
- Approx. weight³ 164 lb
- Output rating 10 HP
- Frequency 60 Hz
- No load current 3.01 A
- Temperature rise 80 K
- Voltage 575 V
- Mounting F-1
- Slip 1.94 %
- Locked rotor torque 260 %
- Degree of Protection IP55
- Terminal box¹ Left position
- Number of Poles 2
- Insulation Class F
- Enclosure IC411 - TEFC
- L. R. Amperes 69.0 A
- Moment of inertia (J) 0.7188 sq.ft.lb
- Rated current 9.20 A
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 01036ET3H215JM-SG Specs
