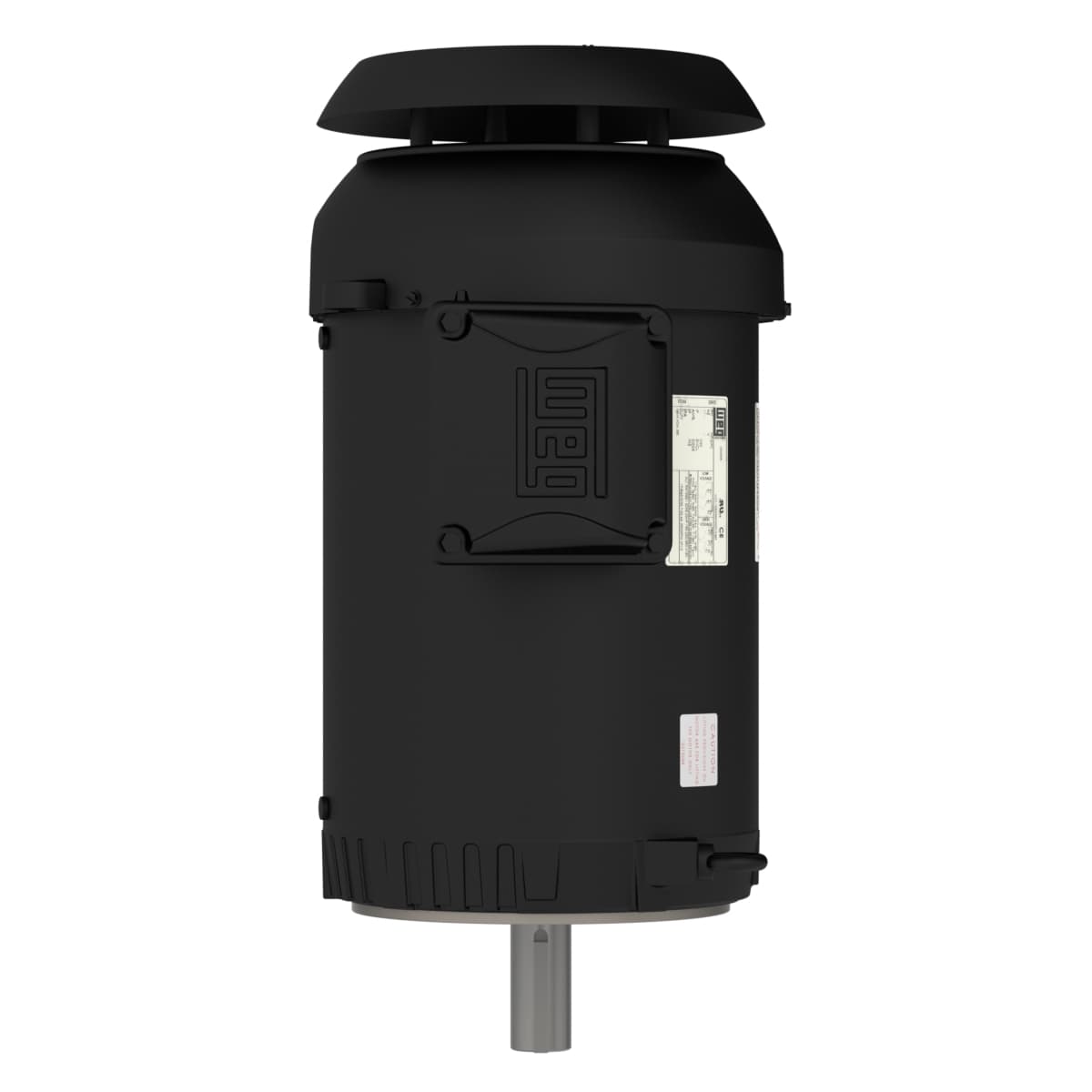

01036ET3ER215TC-S WEG AC Motors
Part#:01036ET3ER215TC-S
Manufacturer:WEG
Alt. Part#:7909158538126
Product Lifecycle:Active
Get a quick Quote!
Rolled Steel NEMA Premium Efficiency 10 HP 2P 213/5TC 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Footless
Check out the 01036ET3ER215TC-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating10 HP
- Rated Speed3530 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeC
- No load current 7.53/3.77 A
- Output 10 HP (7.5 kW)
- Moment of inertia (J) 0.7188 sq.ft.lb
- Locked rotor time 21s (cold) 12s (hot)
- Altitude 1000 m.a.s.l.
- Noise level² 70.0 dB(A)
- Rated speed 3530 rpm
- Temperature rise 80 K
- Mounting W-6
- L. R. Amperes 173/86.2 A
- Insulation Class F
- Enclosure IC411 - TEFC
- Standard NEMA MG-1
- Rated current 23.0/11.5 A
- Locked rotor torque 260 %
- Rotation¹ Both (CW and CCW)
- Output rating 10 HP
- Rated voltage 230/460 V
- Service factor 1.15
- Approx. weight³ 162 lb
- Frequency 60 Hz
- Slip 1.94 %
- Breakdown torque 300 %
- Design B
- Ambient temperature -20°C to +40°C
- Starting Method Direct On Line
- Flange C
- Number of Poles 2
- Frame 213/5TC
- LRC 7.5x(Code H)
- Rated torque 14.9 ft.lb
- Duty Cycle Cont.(S1)
- Degree of Protection IP55
- Number of poles 2
- Voltage 230/460//190-220/380-415 V
- Synchronous speed 3600 rpm
- Terminal box¹ Left position
