01036OT3V213JP-S WEG AC Motors
Part#:01036OT3V213JP-S
Manufacturer:WEG
Alt. Part#:7909322290485
Product Lifecycle:Active
Get a quick Quote!

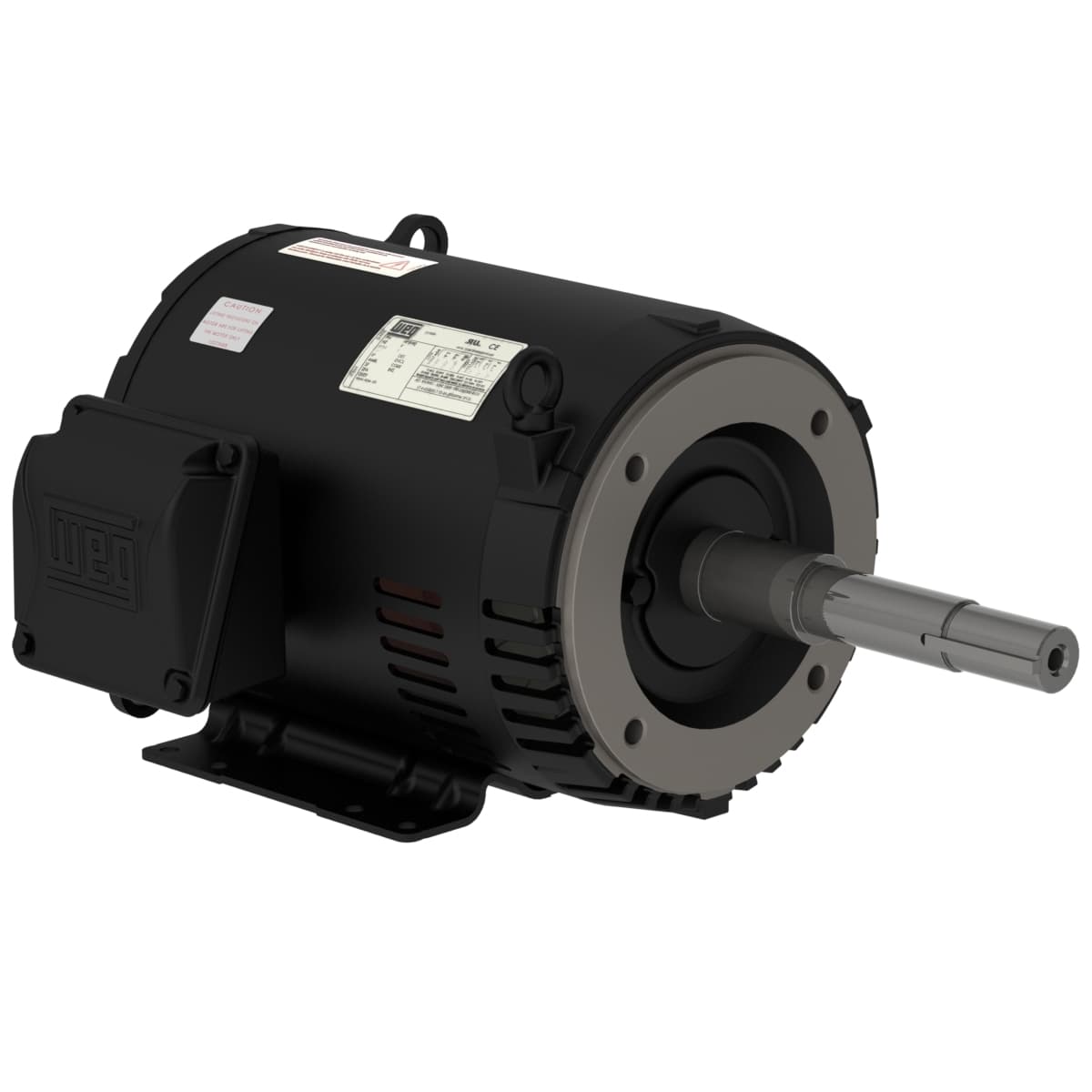

Rolled Steel JP Pump NEMA Premium Efficiency 10 HP 2P 213/5JP 3Ph 200/400 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 01036OT3V213JP-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating10 HP
- Rated Speed3535 rpm
- Number of Poles2 Pole
- Voltage200/400 V
- Flange TypeC
- Number of Poles 2
- Rated speed 3535 rpm
- Rated voltage 200/400 V
- No load current 10.7/5.36 A
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Flange C
- LRC 6.8x(Code H)
- Service factor 1.15
- Output rating 10 HP
- Slip 1.81 %
- Locked rotor torque 200 %
- Altitude 1000 m.a.s.l.
- Frame 213/5JP
- Rated torque 14.9 ft.lb
- Noise level² 66.0 dB(A)
- Synchronous speed 3600 rpm
- L. R. Amperes 188/93.8 A
- Locked rotor time 19s (cold) 11s (hot)
- Approx. weight³ 117 lb
- Output 10 HP (7.5 kW)
- Moment of inertia (J) 0.4651 sq.ft.lb
- Voltage 200/400 V
- Rated current 27.6/13.8 A
- Ambient temperature -20°C to +40°C
- Enclosure IC01 - ODP
- Terminal box¹ Left position
- Frequency 60 Hz
- Insulation Class F
- Mounting F-1
- Number of poles 2
- Breakdown torque 280 %
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Design B
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
