01036OP3HFP213JPV-S WEG AC Motors
Part#:01036OP3HFP213JPV-S
Manufacturer:WEG
Alt. Part#:7909322403861
Product Lifecycle:Active
Get a quick Quote!

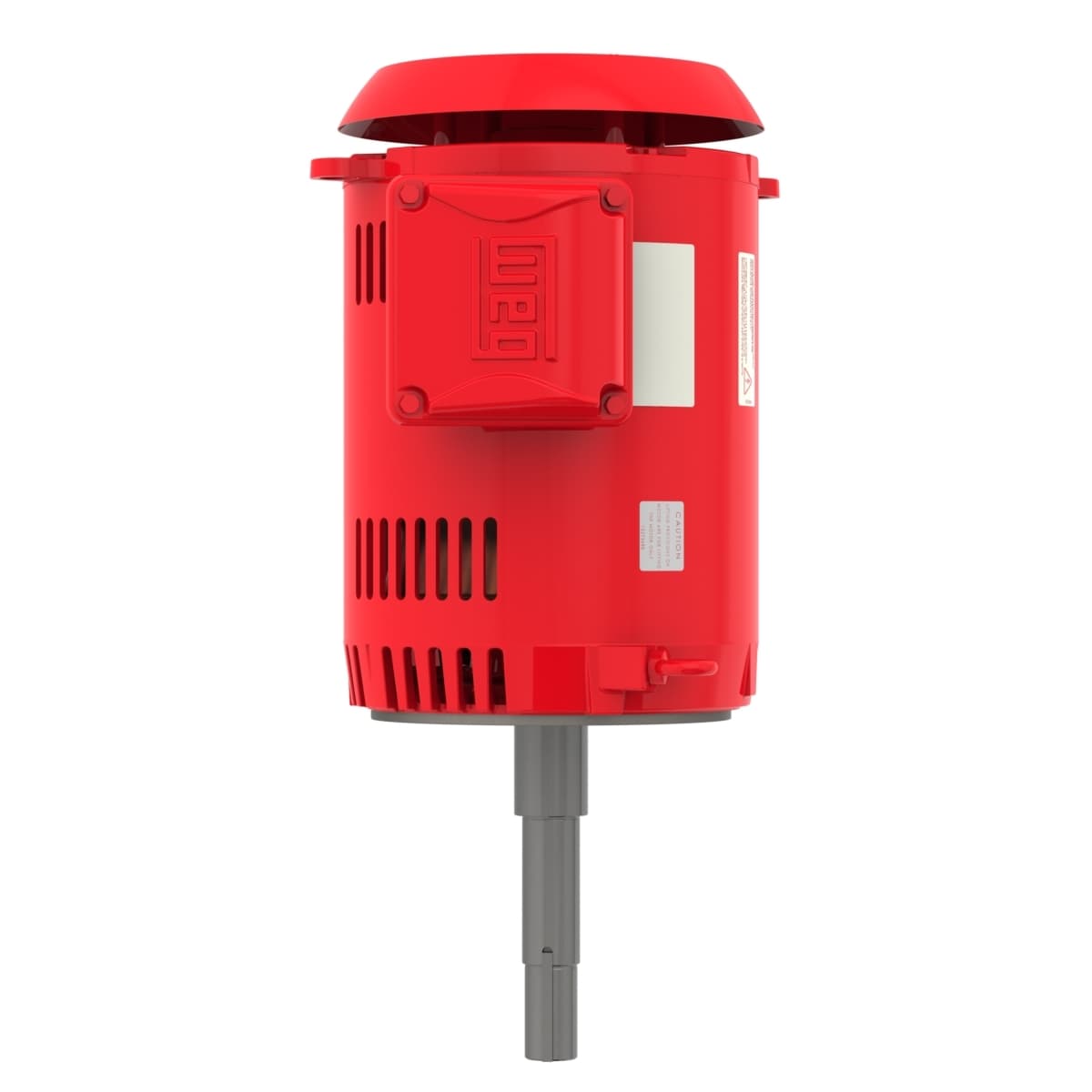

Rolled Steel JP Pump High Efficiency 10 HP 2P 213/5JP 3Ph 575 V 60 Hz IC01 - ODP - Footless
Check out the 01036OP3HFP213JPV-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating10 HP
- Rated Speed3530 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeC
- Frame 213/5JP
- Breakdown torque 260 %
- Starting Method Direct On Line
- Rotation¹ Both (CW and CCW)
- Rated current 9.76 A
- Service factor 1.15
- Number of poles 2
- Number of Poles 2
- Locked rotor torque 180 %
- Approx. weight³ 111 lb
- Moment of inertia (J) 0.3816 sq.ft.lb
- Locked rotor time 14s (cold) 8s (hot)
- L. R. Amperes 62.5 A
- Output 10 HP (7.5 kW)
- Design B
- Noise level² 66.0 dB(A)
- Terminal box¹ Left position
- No load current 4.10 A
- Enclosure IC01 - ODP
- Flange C
- Slip 1.94 %
- Temperature rise 80 K
- Standard NEMA MG-1
- Output rating 10 HP
- Rated voltage 575 V
- Rated torque 14.9 ft.lb
- Duty Cycle Cont.(S1)
- Voltage 575 V
- Rated speed 3530 rpm
- LRC 6.4x(Code G)
- Ambient temperature -20°C to +40°C
- Mounting W-6
- Frequency 60 Hz
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Synchronous speed 3600 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 01036OP3HFP213JPV-S Specs
1-year warranty
