01036AP1DGD182TZ-S WEG AC Motors
Part#:01036AP1DGD182TZ-S
Manufacturer:WEG
Alt. Part#:7909492977544
Product Lifecycle:Active
Get a quick Quote!

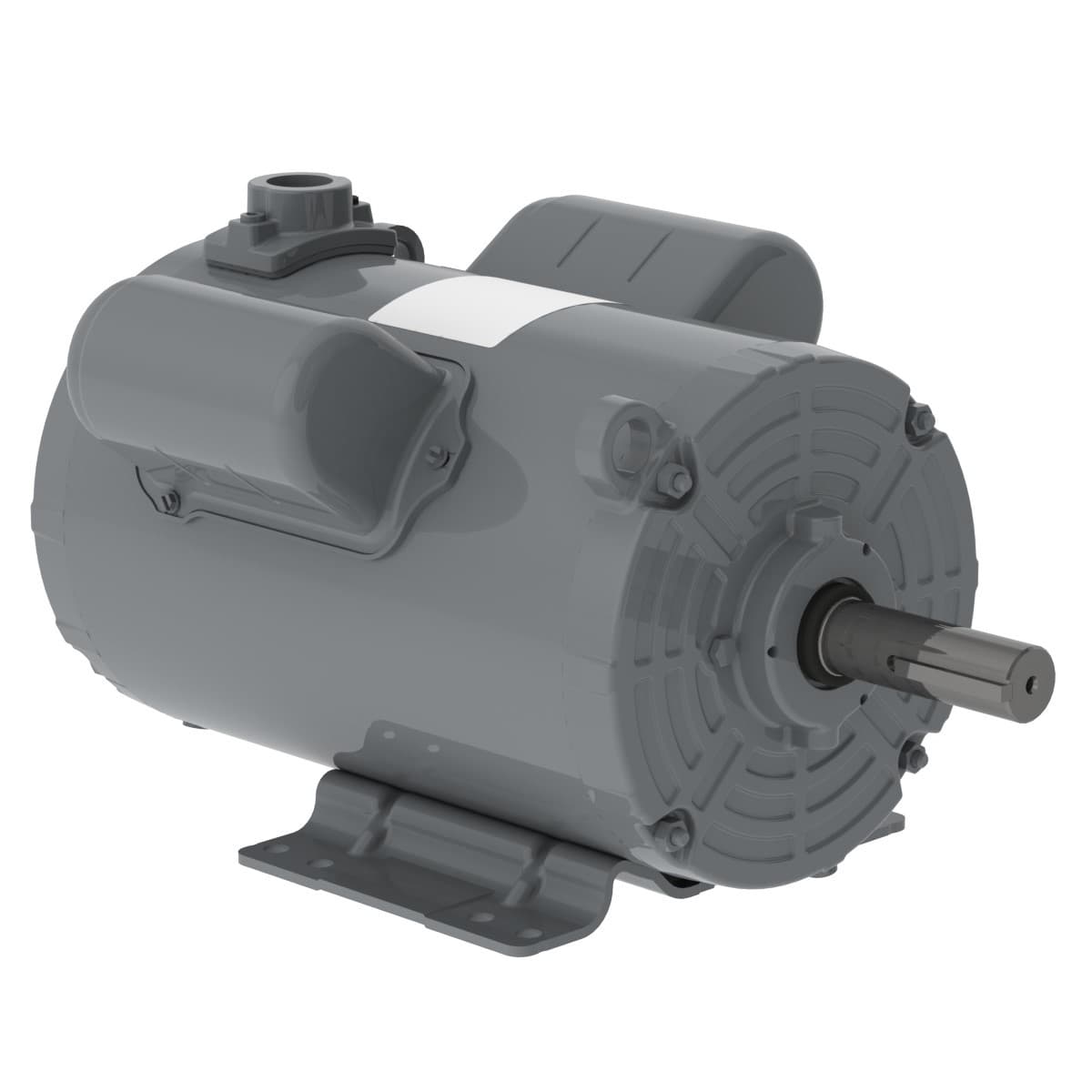

Rolled Steel Grain Dryer 7.5-10 HP 2P 182/4TZ 1Ph 230-230 V 60 Hz IC418 - TEAO - Foot-mounted
Check out the 01036AP1DGD182TZ-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating7.5-10 HP
- Rated Speed3490 rpm
- Number of Poles2 Pole
- Voltage230 V
- Flange TypeWithout
- LRC 8.0x(Code J)
- Ambient temperature -20°C to +40°C
- Approx. weight³ 99.2 lb
- Rated current 39.5 A
- No load current 10.1 A
- Voltage 230-230 V
- L. R. Amperes 316 A
- Temperature rise 105 K
- Mounting F-3
- Output 10 HP (7.5 kW)
- Service factor 1.00
- Starting Method Direct On Line
- Flange Without
- Rated voltage 230 V
- Breakdown torque 340 %
- Enclosure IC418 - TEAO
- Number of Poles 2
- Locked rotor time 10s (cold) 6s (hot)
- Altitude 1000 m.a.s.l.
- Number of poles 2
- Frequency 60 Hz
- Duty Cycle Cont.(S1)
- Slip 3.06 %
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Output rating 7.5-10 HP
- Frame 182/4TZ
- Rated torque 15.0 ft.lb
- Degree of Protection IP55
- Synchronous speed 3600 rpm
- Rated speed 3490 rpm
- Locked rotor torque 190 %
- Standard NEMA MG-1
- Terminal box¹ Top
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 01036AP1DGD182TZ-S Specs
1-year warranty
