TM241CE40T Schneider Electric Industrial Automation Components
Part#:TM241CE40T
Manufacturer:Schneider Electric
Product Lifecycle:Active
Get a quick Quote!

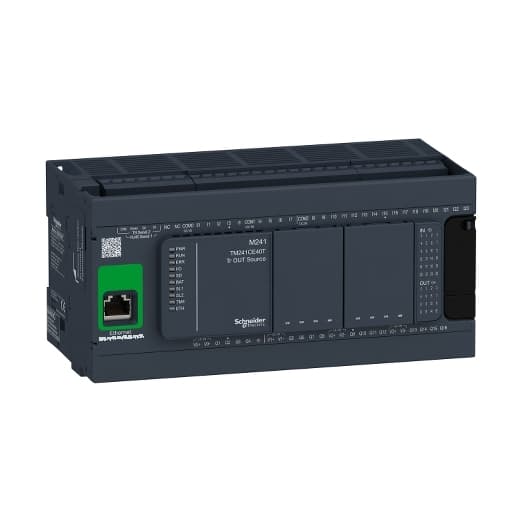

Schneider Electric TM241CE40T is a CPU unit designed with integrated I/Os, serving as a Programmable Logic Controller (PLC) CPU processor module. It features a PID Run/Stop switch, an industrial SD memory card slot, a backup battery slot, and a Mini-USB connector for a programming terminal. Additionally, it includes a clip for locking onto symmetrical rail, supports firmware updates, and facilitates data exchange through NGVL and IEC VAR ACCESS. The unit is equipped with a web server, supports SNMP-MIB2 network management, FTP (Client/Server), SNMP (Client/Server), SQL (Client), and includes an email library and DHCP Client for programming, downloading, and monitoring. It offers a removable screw terminal block, 1 x RJ45 connector (RS-232 / RS-485 with +5V supply), and 1 x USB mini-B port for connections. The supply voltage is 19-30Vdc (24Vdc nom.), and it can be mounted on a symmetrical rail or panel. The ambient air temperature for operation ranges from +14 to +131°F / -10 to +55 °C. Memory capacity includes 64MB (RAM), 128MB (flash), and 8MB for program size (application and symbols). It has an IP20 degree of protection and uses Ethernet Modbus TCP for communication protocol. The unit has 12 x digital outputs (500mA; transistor outputs), 4 x digital outputs (100mA; high-speed transistors; Source), and 24 x digital inputs (24Vdc; Sink/Source; 8 inputs can be used as high-speed 200kHz HSC counters). Connection capacity allows for 7 x local I.O., 14 x distributed I.O., 7 x Modicon TM3 expansion modules for local I.O., and 14 x Modicon TM3 expansion modules with bus expansion modules for remote I.O., with possible restrictions for Modicon TM2 expansion modules. It also includes 1 x slot for 2 x cartridges for analog I.O. expansion or application cartridge. The ambient air temperature for storage is -40 to +158°F / -40 to +70 °C. Power consumption with the maximum number of I/O expansion modules ranges from 32.6-40.4 W. Humidity tolerance is 5-95% without condensation. Processing time includes an execution time for 1k instructions at 300μs / 0.3 ms and for other instructions at 700μs / 0.7 ms. The hold time for immunity to micro-breaks class PS-2 is 0.01s, and it operates with a dual-core processor.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the TM241CE40T Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Discrete I/O Number 40
- Discrete Input Voltage Type DC
- Data Backed Up 128 MB built-in flash memory backup of user programs
- Marking CE
- Discrete Output Voltage 24 V DC transistor output
- Discrete Input Voltage 24 V
- Maximum Voltage Drop <1 V
- Power Consumption In W 32.6…40.4 W with max number of I/O expansion module)
- Output Voltage Limits 30 V DC
- Clock Drift <= 60 s/month 77 °F (25 °C)
- Discrete Input Number 24, discrete input 8 fast input IEC 61131-2 Type 1
- Maximum Current Per Output Common 2 A
- Discrete Output Number 16 transistor 4 fast output
- Discrete Input Logic Sink or source
- Voltage State 0 Guaranteed <= 5 V input
- Maximum Leakage Current 5 µA output
- Depth 3.74 in (95 mm)
- Discrete Output Type Transistor
- Voltage State 1 Guaranteed >= 15 V input
- Data Storage Equipment <= 16 GB SD card optional)
- Range Of Product Modicon M241
- Discrete Output Logic Positive logic (source)
- [Us] Rated Supply Voltage 24 V DC
- Supply Voltage Limits 20.4…28.8 V
- Inrush Current 50 A
- Product Or Component Type Logic controller
- Backup Time 2 years 77 °F (25 °C)
- Height 3.54 in (90 mm)
- Maximum Tungsten Load <2.4 W
- Battery Type BR2032 lithium non-rechargeable 4 year(s)
- Port Ethernet 10BASE-T/100BASE-TX - 1 copper cable
- Supply Serial 1)serial link supply 5 V, <200 mA
- Communication Port Protocol Non isolated serial link Modbus master/slave
- Width 7.48 in (190 mm)
- Realtime Clock With
- Web Services Web server
- Net Weight 1.37 lb(US) (0.62 kg)
- Ethernet Services FDR DHCP server via TM4 Ethernet switch network module DHCP client embedded Ethernet port SMS notifications Updating firmware SNMP client/server Programming NGVL Monitoring IEC VAR ACCESS FTP client/server
- Mounting Support Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
- Reset Time 10 ms automatic reset output 12 s automatic reset fast output
- Discrete Output Current 0.1 A fast output (PTO mode) Q0...Q3) 0.5 A transistor output Q0...Q15)
- Accuracy +/- 0.1 % 0.02…0.1 kHz fast output +/- 1 % 0.1…1 kHz fast output
- Discrete Input Current 10.7 mA fast input 7 mA input
- Maximum Number Of I/O Expansion Module 7 local 14 remote
- Input Impedance 4.7 kOhm input 2.81 kOhm fast input
- Positioning Functions PTO 4 100 kHz) PTO 4 transistor output 1 kHz)
- Counting Input Number 4 fast input (HSC mode) 200 kHz 16 standard input 1 kHz
- Number Of Slave 64 Modbus TCP 16 EtherNet/IP
- Electrical Connection removable screw terminal block for inputs and outputs pitch 5.08 mm) removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
- Memory Capacity 8 MB program 64 MB system memory RAM
- Execution Time For 1 Kinstruction 0.3 ms event and periodic task 0.7 ms other instruction
- Cycle Time 10 ms 16 EtherNet/IP 64 ms 64 Modbus TCP
- Control Signal Type A/B 100 kHz fast input (HSC mode) Pulse/direction 200 kHz fast input (HSC mode) Single phase 200 kHz fast input (HSC mode)
- Maximum Output Frequency 20 kHz fast output (PWM mode) 100 kHz fast output (PLS mode) 1 kHz output
- Protection Type Short-circuit protection Short-circuit and overload protection with automatic reset Reverse polarity protection fast output
- Integrated Connection Type Non isolated serial link serial 1 RJ45 RS232/RS485 Non isolated serial link serial 2 removable screw terminal block RS485 USB port mini B USB 2.0 Ethernet RJ45
- Transmission Rate 1.2...115.2 kbit/s (115.2 kbit/s by default) 49.21 ft (15 m) RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) 9.84 ft (3 m) RS232 480 Mbit/s 9.84 ft (3 m) USB 10/100 Mbit/s Ethernet
- Application Structure 3 cyclic master tasks + 1 freewheeling task 8 external event tasks 4 cyclic master tasks 8 event tasks
- Maximum Cable Distance Between Devices Unshielded cable <164.04 ft (50 m) input Shielded cable <32.81 ft (10 m) fast input Unshielded cable <164.04 ft (50 m) output Shielded cable <9.84 ft (3 m) fast output
- Surge Withstand 1 kV power lines (DC) common mode EN/IEC 61000-4-5 1 kV shielded cable common mode EN/IEC 61000-4-5 0.5 kV power lines (DC) differential mode EN/IEC 61000-4-5 1 kV relay output differential mode EN/IEC 61000-4-5 1 kV input common mode
- Configurable Filtering Time 1 µs fast input 12 ms fast input 0 ms input 1 ms input 4 ms input 12 ms input
- Maximum Number Of Connections 8 Modbus server 8 SoMachine protocol 10 web server 4 FTP server 16 Ethernet/IP target 8 Modbus client
- Insulation Between supply and internal logic 500 V AC Non-insulated between supply and ground Between input and internal logic 500 V AC Non-insulated between inputs Between fast input and internal logic 500 V AC Between output and internal l
- Response Time <= 2 µs turn-on, I0...I7 fast input <= 2 µs turn-off, I0...I7 fast input <= 2 µs turn-on, Q0...Q3 fast output <= 2 µs turn-off, Q0...Q3 fast output 50 µs turn-on, I0...I15 input 50 µs turn-off, I0...I15 input <= 34 µs turn-on
- Local Signalling for PWR 1 LED (green) for RUN 1 LED (green) for module error (ERR) 1 LED (red) for I/O error (I/O) 1 LED (red) for SD card access (SD) 1 LED (green) for BAT 1 LED (red) for SL1 1 LED (green) for SL2 1 LED (green)<
