TM241CE24U Schneider Electric Industrial Automation Components
Part#:TM241CE24U
Manufacturer:Schneider Electric
Product Lifecycle:Active
Get a quick Quote!

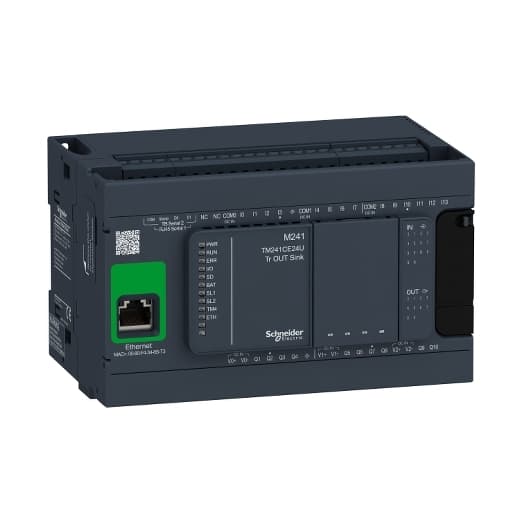

Schneider Electric TM241CE24U is a Programmable Logic Controller (PLC) CPU unit featuring an integrated I/O design. This part includes a dual-core processor, PID, Run/Stop switch, industrial SD memory card slot, backup battery slot, and a Mini-USB connector for programming. It supports firmware updates, data exchange through NGVL and IEC VAR ACCESS, and offers functionalities such as a web server, SNMP-MIB2 network management, FTP (Client/Server), SNMP (Client/Server), SQL (Client), and an email library. It also facilitates DHCP Client programming, downloading, and monitoring. The connection is made via a removable screw terminal block, 1 x RJ45 connector (RS-232 / RS-485 with +5V supply), and 1 x USB mini-B port. It operates on a supply voltage of 19-30Vdc (24Vdc nom.) and can be mounted on a symmetrical rail or panel. The operating ambient air temperature range is +14...+131°F / -10...+55 °C, with a storage temperature range of -40...+158°F / -40...+70 °C. Memory capacity includes 64MB (RAM), 128MB (flash), and 8MB for program size. It offers an IP20 degree of protection and uses Ethernet Modbus TCP for communication. The unit has 6 digital outputs (transistor outputs), 4 digital outputs (high-speed transistors; Sink), and 14 digital inputs (24Vdc; Sink/Source; 8 inputs can be used as high-speed HSC counters). It supports up to 7 local I.O., 14 distributed I.O., 7 Modicon TM3 expansion modules for local I.O., and 14 Modicon TM3 expansion modules for remote I.O. with bus expansion modules, with possible restrictions for Modicon TM2 expansion modules. It includes 1 slot for 2 cartridges for analog I.O. expansion or application cartridge. Power consumption ranges from 32.6-40.4 W, with a humidity tolerance of 5-95% (without condensation). Processing times are 300μs / 0.3 ms for 1k instructions (event and periodic task) and 700μs / 0.7 ms for other instructions, with a hold time of 0.01s for immunity to micro-breaks class PS-2.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the TM241CE24U Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Discrete I/O Number 24
- Supply Voltage Limits 20.4…28.8 V
- Inrush Current 50 A
- Discrete Output Voltage 24 V DC transistor output
- Maximum Tungsten Load <2.4 W
- Range Of Product Modicon M241
- Discrete Input Logic Sink or source
- Realtime Clock With
- [Us] Rated Supply Voltage 24 V DC
- Discrete Input Voltage Type DC
- Maximum Voltage Drop <1 V
- Product Or Component Type Logic controller
- Voltage State 1 Guaranteed >= 15 V input
- Output Voltage Limits 30 V DC
- Discrete Output Type Transistor
- Voltage State 0 Guaranteed <= 5 V input
- Clock Drift <= 60 s/month 77 °F (25 °C)
- Port Ethernet 10BASE-T/100BASE-TX - 1 copper cable
- Marking CE
- Communication Port Protocol Non isolated serial link Modbus master/slave
- Width 5.91 in (150 mm)
- Data Backed Up 128 MB built-in flash memory backup of user programs
- Depth 3.74 in (95 mm)
- Web Services Web server
- Net Weight 1.17 lb(US) (0.53 kg)
- Discrete Input Number 14, discrete input 8 fast input IEC 61131-2 Type 1
- Data Storage Equipment <= 16 GB SD card optional)
- Discrete Output Logic Negative logic (sink)
- Discrete Output Number 10 transistor 4 fast output
- Battery Type BR2032 lithium non-rechargeable 4 year(s)
- Height 3.54 in (90 mm)
- Power Consumption In W 32.6…40.4 W with max number of I/O expansion module)
- Maximum Leakage Current 5 µA output
- Discrete Input Voltage 24 V
- Backup Time 2 years 77 °F (25 °C)
- Supply Serial 1)serial link supply 5 V, <200 mA
- Input Impedance 4.7 kOhm input 2.81 kOhm fast input
- Maximum Number Of I/O Expansion Module 7 local 14 remote
- Discrete Input Current 5 mA input 10.7 mA fast input
- Discrete Output Current 0.5 A transistor output Q0...Q9) 0.1 A fast output (PTO mode) Q0...Q3)
- Reset Time 10 ms automatic reset output 12 s automatic reset fast output
- Electrical Connection removable screw terminal block for inputs and outputs pitch 5.08 mm) removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
- Counting Input Number 4 fast input (HSC mode) 200 kHz 14 standard input 1 kHz
- Positioning Functions PTO 4 100 kHz) PTO 4 transistor output 1 kHz)
- Cycle Time 10 ms 16 EtherNet/IP 64 ms 64 Modbus TCP
- Number Of Slave 64 Modbus TCP 16 EtherNet/IP
- Execution Time For 1 Kinstruction 0.3 ms event and periodic task 0.7 ms other instruction
- Accuracy +/- 0.1 % 0.02…0.1 kHz fast output +/- 1 % 0.1…1 kHz fast output
- Memory Capacity 8 MB program 64 MB system memory RAM
- Control Signal Type A/B 100 kHz fast input (HSC mode) Pulse/direction 200 kHz fast input (HSC mode) Single phase 200 kHz fast input (HSC mode)
- Protection Type Short-circuit protection Short-circuit and overload protection with automatic reset Reverse polarity protection fast output
- Maximum Current Per Output Common 2 A Q0...Q3 fast output 2 A Q4...Q7 output 1 A Q8...Q9 output
- Mounting Support Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
- Maximum Output Frequency 20 kHz fast output (PWM mode) 100 kHz fast output (PLS mode) 1 kHz output
- Ethernet Services FDR DHCP server via TM4 Ethernet switch network module DHCP client embedded Ethernet port SMS notifications Updating firmware SNMP client/server Programming NGVL Monitoring IEC VAR ACCESS FTP client/server
- Integrated Connection Type Non isolated serial link serial 1 RJ45 RS232/RS485 Non isolated serial link serial 2 removable screw terminal block RS485 USB port mini B USB 2.0 Ethernet RJ45
- Maximum Cable Distance Between Devices Unshielded cable <164.04 ft (50 m) input Shielded cable <32.81 ft (10 m) fast input Unshielded cable <164.04 ft (50 m) output Shielded cable <9.84 ft (3 m) fast output
- Transmission Rate 1.2...115.2 kbit/s (115.2 kbit/s by default) 49.21 ft (15 m) RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) 9.84 ft (3 m) RS232 480 Mbit/s 9.84 ft (3 m) USB 10/100 Mbit/s Ethernet
- Application Structure 8 external event tasks 4 cyclic master tasks 8 event tasks 3 cyclic master tasks + 1 freewheeling task
- Surge Withstand 1 kV power lines (DC) common mode EN/IEC 61000-4-5 1 kV shielded cable common mode EN/IEC 61000-4-5 0.5 kV power lines (DC) differential mode EN/IEC 61000-4-5 1 kV relay output differential mode EN/IEC 61000-4-5 1 kV input common mode
- Maximum Number Of Connections 8 Modbus server 8 SoMachine protocol 10 web server 4 FTP server 16 Ethernet/IP target 8 Modbus client
- Insulation Between supply and internal logic 500 V AC Non-insulated between supply and ground Between input and internal logic 500 V AC Non-insulated between inputs Between fast input and internal logic 500 V AC Between output and internal l
- Configurable Filtering Time 1 µs fast input 12 ms fast input 0 ms input 1 ms input 4 ms input 12 ms input
- Response Time 50 µs turn-on, I0...I13 input 50 µs turn-off, I0...I13 input <= 2 µs turn-on, I0...I7 fast input <= 2 µs turn-off, I0...I7 fast input <= 34 µs turn-on, Q0...Q9 output <= 250 µs turn-off, Q0...Q9 output <= 2 µs turn-on, Q0...Q
- Local Signalling for PWR 1 LED (green) for RUN 1 LED (green) for module error (ERR) 1 LED (red) for I/O error (I/O) 1 LED (red) for SD card access (SD) 1 LED (green) for BAT 1 LED (red) for SL1 1 LED (green) for SL2 1 LED (green)<
