TM241C24T Schneider Electric Industrial Automation Components
Part#:TM241C24T
Manufacturer:Schneider Electric
Product Lifecycle:Active
Get a quick Quote!

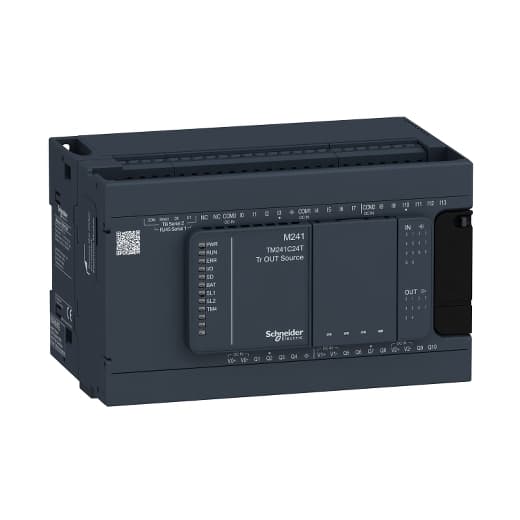

Schneider Electric TM241C24T is a Programmable Logic Controller (PLC) CPU unit featuring an integrated I/O design. It includes a dual-core processor, 14 digital inputs (24Vdc; Sink/Source; 8 inputs can be used as high-speed HSC counters), 6 digital outputs (transistor outputs), and 4 digital outputs (high-speed transistors; Source). The unit is equipped with a PID Run/Stop switch, an industrial SD memory card slot, a backup battery slot, and a Mini-USB connector for a programming terminal. It also features a clip for locking onto symmetrical rail, firmware update capabilities, and data exchange functions including NGVL and IEC VAR ACCESS. The TM241C24T supports web server functionality, SNMP-MIB2 network management, FTP (Client/Server), SNMP (Client/Server), SQL (Client), and an email library, along with DHCP Client for programming, downloading, and monitoring. Connection options include a removable screw terminal block, 1 x RJ45 connector (RS-232 / RS-485 with +5V supply), and 1 x USB mini-B port. It operates on a supply voltage of 19-30Vdc (24Vdc nom.) and can be mounted on a symmetrical rail or panel. The ambient air temperature for operation ranges from +14...+131°F / -10...+55 °C, with a storage temperature range of -40...+158°F / -40...+70 °C. The memory capacity is 64MB (RAM), 128MB (flash), and 8MB (program size; for application and symbols), with a degree of protection of IP20. It supports RS-232 and RS-485 communication protocols. The connection capacity includes 7 x local I.O., 14 x distributed I.O., 7 x Modicon TM3 expansion modules for local I.O., and 14 x Modicon TM3 expansion modules for remote I.O. using bus expansion modules. Modicon TM2 expansion modules are also possible with restrictions. The power consumption with the maximum number of I/O expansion modules ranges from 32.6-40.4 W, and the humidity tolerance is 5-95% (without condensation). The processing time is 300μs / 0.3 ms for 1k instructions (event and periodic task) and 700μs / 0.7 ms for other instructions, with a hold time of 0.01s for immunity to micro-breaks class PS-2.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the TM241C24T Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- [Us] Rated Supply Voltage 24 V DC
- Discrete Input Voltage Type DC
- Discrete Output Type Transistor
- Voltage State 0 Guaranteed <= 5 V input
- Output Voltage Limits 30 V DC
- Data Storage Equipment <= 16 GB SD card optional)
- Discrete Output Voltage 24 V DC transistor output
- Power Consumption In W 32.6…40.4 W with max number of I/O expansion module)
- Discrete I/O Number 24
- Discrete Input Logic Sink or source
- Supply Serial 1)serial link supply 5 V, <200 mA
- Discrete Input Number 14, discrete input 8 fast input IEC 61131-2 Type 1
- Discrete Output Number 10 transistor 4 fast output
- Inrush Current 50 A
- Depth 3.74 in (95 mm)
- Product Or Component Type Logic controller
- Discrete Input Voltage 24 V
- Voltage State 1 Guaranteed >= 15 V input
- Maximum Leakage Current 5 µA output
- Battery Type BR2032 lithium non-rechargeable 4 year(s)
- Net Weight 1.17 lb(US) (0.53 kg)
- Range Of Product Modicon M241
- Marking CE
- Maximum Tungsten Load <2.4 W
- Realtime Clock With
- Communication Port Protocol Non isolated serial link Modbus master/slave
- Backup Time 2 years 77 °F (25 °C)
- Height 3.54 in (90 mm)
- Data Backed Up 128 MB built-in flash memory backup of user programs
- Width 5.91 in (150 mm)
- Supply Voltage Limits 20.4…28.8 V
- Maximum Voltage Drop <1 V
- Clock Drift <= 60 s/month 77 °F (25 °C)
- Discrete Output Logic Positive logic (source)
- Execution Time For 1 Kinstruction 0.3 ms event and periodic task 0.7 ms other instruction
- Discrete Output Current 0.5 A transistor output Q0...Q9) 0.1 A fast output (PTO mode) Q0...Q3)
- Discrete Input Current 5 mA input 10.7 mA fast input
- Maximum Cable Distance Between Devices Unshielded cable <164.04 ft (50 m) input Shielded cable <32.81 ft (10 m) fast input Unshielded cable <164.04 ft (50 m) output Shielded cable <9.84 ft (3 m) fast output
- Input Impedance 4.7 kOhm input 2.81 kOhm fast input
- Reset Time 10 ms automatic reset output 12 s automatic reset fast output
- Counting Input Number 4 fast input (HSC mode) 200 kHz 14 standard input 1 kHz
- Maximum Number Of I/O Expansion Module 7 local 14 remote
- Memory Capacity 8 MB program 64 MB system memory RAM
- Electrical Connection removable screw terminal block for inputs and outputs pitch 5.08 mm) removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
- Accuracy +/- 0.1 % 0.02…0.1 kHz fast output +/- 1 % 0.1…1 kHz fast output
- Positioning Functions PTO 4 100 kHz) PTO 4 transistor output 1 kHz)
- Maximum Output Frequency 20 kHz fast output (PWM mode) 100 kHz fast output (PLS mode) 1 kHz output
- Maximum Current Per Output Common 2 A Q0...Q3 fast output 2 A Q4...Q7 output 1 A Q8...Q9 output
- Transmission Rate 1.2...115.2 kbit/s (115.2 kbit/s by default) 49.21 ft (15 m) RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) 9.84 ft (3 m) RS232 480 Mbit/s 9.84 ft (3 m) USB
- Control Signal Type A/B 100 kHz fast input (HSC mode) Pulse/direction 200 kHz fast input (HSC mode) Single phase 200 kHz fast input (HSC mode)
- Mounting Support Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
- Protection Type Short-circuit protection Short-circuit and overload protection with automatic reset Reverse polarity protection fast output
- Integrated Connection Type Non isolated serial link serial 1 RJ45 RS232/RS485 Non isolated serial link serial 2 removable screw terminal block RS485 USB port mini B USB 2.0
- Application Structure 4 cyclic master tasks 3 cyclic master tasks + 1 freewheeling task 8 external event tasks 8 event tasks
- Surge Withstand 1 kV power lines (DC) common mode EN/IEC 61000-4-5 1 kV shielded cable common mode EN/IEC 61000-4-5 0.5 kV power lines (DC) differential mode EN/IEC 61000-4-5 1 kV relay output differential mode EN/IEC 61000-4-5 1 kV input common mode
- Configurable Filtering Time 1 µs fast input 12 ms fast input 0 ms input 1 ms input 4 ms input 12 ms input
- Insulation Between supply and internal logic 500 V AC Non-insulated between supply and ground Between input and internal logic 500 V AC Non-insulated between inputs Between fast input and internal logic 500 V AC Between output and internal l
- Response Time 50 µs turn-on, I0...I13 input 50 µs turn-off, I0...I13 input <= 2 µs turn-on, I0...I7 fast input <= 2 µs turn-off, I0...I7 fast input <= 34 µs turn-on, Q0...Q9 output <= 250 µs turn-off, Q0...Q9 output <= 2 µs turn-on, Q0...Q
- Local Signalling for PWR 1 LED (green) for RUN 1 LED (green) for module error (ERR) 1 LED (red) for I/O error (I/O) 1 LED (red) for SD card access (SD) 1 LED (green) for BAT 1 LED (red) for SL1 1 LED (green) for SL2 1 LED (green)<
