TM241C24R Schneider Electric Industrial Automation Components
Part#:TM241C24R
Manufacturer:Schneider Electric
Product Lifecycle:Active
Get a quick Quote!

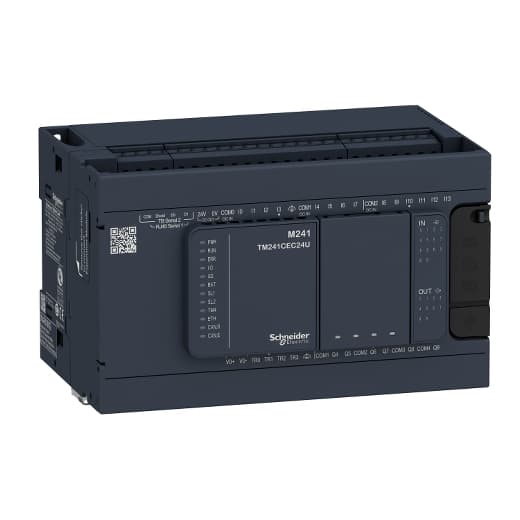

Schneider Electric TM241C24R is a CPU unit designed with integrated I/Os, serving as a Programmable Logic Controller (PLC) CPU processor module. It features a PID Run/Stop switch, an industrial SD memory card slot, a backup battery slot, and a Mini-USB connector for programming. The unit is equipped with a terminal clip for locking onto symmetrical rail, supports firmware updates, and facilitates data exchange through NGVL and IEC VAR ACCESS. It includes a web server, SNMP-MIB2 network management, FTP (Client/Server), SNMP (Client/Server), SQL (Client), and an Email library, alongside DHCP Client functionalities for programming, downloading, and monitoring. The connection is established via a removable screw terminal block, 1 x RJ45 connector (RS-232 / RS-485 with +5V supply), and 1 x USB mini-B port. It operates on a supply voltage of 85-264Vac (100-240Vac nom.) and can be mounted on a symmetrical rail or panel. The ambient air temperature for operation ranges from +14 to +131°F / -10 to +55 °C. Memory capacity includes 64MB (RAM), 128MB (flash), and 8MB for program size (application and symbols). It has an IP20 degree of protection and uses RS-232 and RS-485 communication protocols. The unit features 6 x digital outputs (2A; relay contact outputs), 4 x digital outputs (500mA; high-speed transistors; Source), and 14 x digital inputs (24Vdc; Sink/Source; 8 inputs can be used as high-speed HSC counters). It supports up to 7 x local I.O., 14 x distributed I.O., 7 x Modicon TM3 expansion modules for local I.O., and 14 x Modicon TM3 expansion modules for remote I.O. using bus expansion modules. Modicon TM2 expansion modules are also compatible with restrictions. It includes 1 x slot for 2 x cartridges for analog I.O. expansion or application cartridge. The ambient air temperature for storage is -40 to +158°F / -40 to +70 °C, with a humidity tolerance of 5-95% (without condensation). Processing time is 300μs / 0.3 ms for 1k instructions (event and periodic task) and 700μs / 0.7 ms for other instructions, with a hold time of 0.01s (immunity to micro-breaks class PS-2). The processor is a dual-core type.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the TM241C24R Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Product Or Component Type Logic controller
- Discrete Input Voltage 24 V
- Realtime Clock With
- Voltage State 0 Guaranteed <= 5 V input
- [Us] Rated Supply Voltage 100...240 V AC
- Discrete Input Logic Sink or source
- Data Backed Up 128 MB built-in flash memory backup of user programs
- Discrete Input Voltage Type DC
- Supply Voltage Limits 85…264 V
- Input Impedance 4.7 kOhm input
- Height 3.54 in (90 mm)
- Range Of Product Modicon M241
- Configurable Filtering Time 1 µs fast input
- Network Frequency 50/60 Hz
- Discrete Input Current 5 mA input
- Discrete I/O Number 24
- Discrete Input Number 14, discrete input 8 fast input IEC 61131-2 Type 1
- Discrete Output Logic Positive logic (source)
- Backup Time 2 years 77 °F (25 °C)
- Voltage State 1 Guaranteed >= 15 V input
- Clock Drift <= 60 s/month 77 °F (25 °C)
- Communication Port Protocol Non isolated serial link Modbus master/slave
- Width 5.91 in (150 mm)
- Net Weight 1.17 lb(US) (0.53 kg)
- Response Time 50 µs turn-on, I0...I13 input
- Data Storage Equipment <= 16 GB SD card optional)
- Sensor Power Supply 24 V DC 400 mA supplied by the controller
- Battery Type BR2032 lithium non-rechargeable 4 year(s)
- Supply Serial 1)serial link supply 5 V, <200 mA
- Positioning Functions PTO 4 100 kHz)
- Depth 3.74 in (95 mm)
- Marking CE
- Transmission Rate 1.2...115.2 kbit/s (115.2 kbit/s by default) 49.21 ft (15 m) RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) 9.84 ft (3 m) RS232 480 Mbit/s 9.84 ft (3 m) USB
- Accuracy +/- 0.1 % 0.02…0.1 kHz fast output +/- 1 % 0.1…1 kHz fast output
- Discrete Output Type Transistor Relay
- Discrete Output Number 6 relay 4 transistor 4 fast output
- Maximum Number Of I/O Expansion Module 7 local 14 remote
- Reset Time 10 ms automatic reset output 12 s automatic reset fast output
- Counting Input Number 4 fast input (HSC mode) 200 kHz 14 standard input 1 kHz
- Electrical Connection removable screw terminal block for inputs and outputs pitch 5.08 mm) removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
- Memory Capacity 8 MB program 64 MB system memory RAM
- Insulation Between supply and internal logic 500 V AC Non-insulated between supply and ground
- Execution Time For 1 Kinstruction 0.3 ms event and periodic task 0.7 ms other instruction
- Discrete Output Voltage 5...125 V DC relay output 5...250 V AC relay output 24 V DC transistor output
- Discrete Output Current 2 A relay output Q4...Q9) 0.1 A fast output (PTO mode) TR0...TR3) 0.5 A transistor output TR0...TR3)
- Maximum Output Frequency 1 kHz transistor output 20 kHz fast output (PWM mode) 100 kHz fast output (PLS mode)
- Mounting Support Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
- Control Signal Type A/B 100 kHz fast input (HSC mode) Pulse/direction 200 kHz fast input (HSC mode) Single phase 200 kHz fast input (HSC mode)
- Integrated Connection Type Non isolated serial link serial 1 RJ45 RS232/RS485 Non isolated serial link serial 2 removable screw terminal block RS485 USB port mini B USB 2.0
- Output Voltage Limits 125 V DC relay output 30 V DC transistor output 277 V AC relay output
- Protection Type Short-circuit protection transistor output Short-circuit and overload protection with automatic reset transistor output Reverse polarity protection transistor output Without protection relay output
- Maximum Cable Distance Between Devices Unshielded cable <164.04 ft (50 m) input Shielded cable <32.81 ft (10 m) fast input Unshielded cable <164.04 ft (50 m) output Shielded cable <9.84 ft (3 m) fast output
- Application Structure 4 cyclic master tasks 3 cyclic master tasks + 1 freewheeling task 8 external event tasks 8 event tasks
- Surge Withstand 2 kV power lines (AC) common mode EN/IEC 61000-4-5 2 kV relay output common mode EN/IEC 61000-4-5 1 kV shielded cable common mode EN/IEC 61000-4-5 1 kV power lines (AC) differential mode EN/IEC 61000-4-5 1 kV relay output differential
- Local Signalling for PWR 1 LED (green) for RUN 1 LED (green) for module error (ERR) 1 LED (red) for I/O error (I/O) 1 LED (red) for SD card access (SD) 1 LED (green) for BAT 1 LED (red) for SL1 1 LED (green) for SL2 1 LED (green)<
