TM241CE24T Schneider Electric Industrial Automation Components
Part#:TM241CE24T
Manufacturer:Schneider Electric
Product Lifecycle:Active
Get a quick Quote!

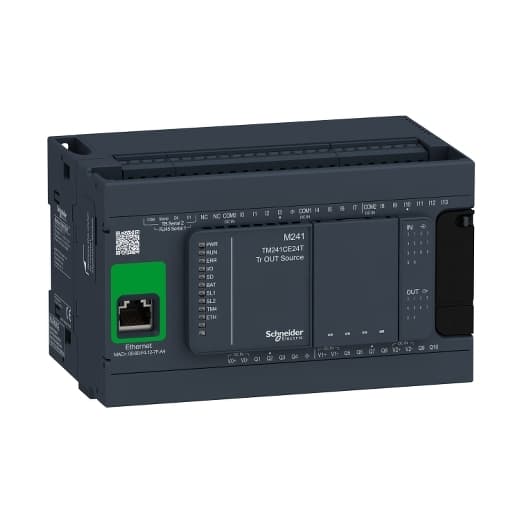

Schneider Electric TM241CE24T is a CPU unit designed with integrated I/Os, serving as a Programmable Logic Controller (PLC) CPU processor module. It features a PID Run/Stop switch, an industrial SD memory card slot, a backup battery slot, and a Mini-USB connector for programming. The unit is equipped with a terminal clip for locking onto symmetrical rail and supports firmware updates and data exchange through NGVL and IEC VAR ACCESS. It includes a web server, SNMP-MIB2 network management, FTP (Client/Server), SNMP (Client/Server), SQL (Client), and an Email library, alongside DHCP Client functionalities for programming, downloading, and monitoring. The connection is facilitated through a removable screw terminal block, 1 x RJ45 connector (RS-232 / RS-485 with +5V supply), and 1 x USB mini-B port. It operates on a supply voltage of 19-30Vdc (24Vdc nom.) and can be mounted on a symmetrical rail or panel. The operating ambient air temperature range is +14...+131°F / -10...+55 °C, with a memory capacity of 64MB (RAM), 128MB (flash), and 8MB (program size; for application and symbols). It has an IP20 degree of protection and uses Ethernet Modbus TCP for communication. The unit includes 6 x digital outputs (transistor outputs), 4 x digital outputs (high-speed transistors; Source), and 14 x digital inputs (24Vdc; Sink/Source; 8 inputs can be used as high-speed HSC counters). It supports up to 7 x local I.O., 14 x distributed I.O., 7 x Modicon TM3 expansion modules for local I.O., and 14 x Modicon TM3 expansion modules with bus expansion modules for remote I.O., with possible restrictions on Modicon TM2 expansion modules. It also features 1 x slot for 2 x cartridges for analog I.O. expansion or application cartridge. The storage ambient air temperature range is -40...+158°F / -40...+70 °C, with a power consumption of 32.6-40.4 W under maximum I/O expansion module load. The humidity tolerance is 5-95% (without condensation), and it has a processing time of 300μs / 0.3 ms for 1k instructions (event and periodic task) and 700μs / 0.7 ms for other instructions, with a hold time of 0.01s (immunity to micro-breaks class PS-2). The processor is a dual-core type.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the TM241CE24T Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Discrete Input Voltage 24 V
- Supply Voltage Limits 20.4…28.8 V
- Range Of Product Modicon M241
- Discrete Output Type Transistor
- Discrete Output Number 10 transistor 4 fast output
- Inrush Current 50 A
- Discrete Output Logic Positive logic (source)
- Maximum Voltage Drop <1 V
- Discrete I/O Number 24
- [Us] Rated Supply Voltage 24 V DC
- Realtime Clock With
- Product Or Component Type Logic controller
- Power Consumption In W 32.6…40.4 W with max number of I/O expansion module)
- Discrete Output Voltage 24 V DC transistor output
- Discrete Input Logic Sink or source
- Depth 3.74 in (95 mm)
- Discrete Input Number 14, discrete input 8 fast input IEC 61131-2 Type 1
- Voltage State 0 Guaranteed <= 5 V input
- Maximum Tungsten Load <2.4 W
- Voltage State 1 Guaranteed >= 15 V input
- Maximum Leakage Current 5 µA output
- Backup Time 2 years 77 °F (25 °C)
- Data Backed Up 128 MB built-in flash memory backup of user programs
- Communication Port Protocol Non isolated serial link Modbus master/slave
- Marking CE
- Port Ethernet 10BASE-T/100BASE-TX - 1 copper cable
- Height 3.54 in (90 mm)
- Clock Drift <= 60 s/month 77 °F (25 °C)
- Discrete Input Voltage Type DC
- Output Voltage Limits 30 V DC
- Battery Type BR2032 lithium non-rechargeable 4 year(s)
- Net Weight 1.17 lb(US) (0.53 kg)
- Width 5.91 in (150 mm)
- Data Storage Equipment <= 16 GB SD card optional)
- Supply Serial 1)serial link supply 5 V, <200 mA
- Web Services Web server
- Maximum Number Of I/O Expansion Module 7 local 14 remote
- Discrete Input Current 5 mA input 10.7 mA fast input
- Reset Time 10 ms automatic reset output 12 s automatic reset fast output
- Discrete Output Current 0.5 A transistor output Q0...Q9) 0.1 A fast output (PTO mode) Q0...Q3)
- Number Of Slave 64 Modbus TCP 16 EtherNet/IP
- Electrical Connection removable screw terminal block for inputs and outputs pitch 5.08 mm) removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
- Cycle Time 10 ms 16 EtherNet/IP 64 ms 64 Modbus TCP
- Positioning Functions PTO 4 100 kHz) PTO 4 transistor output 1 kHz)
- Execution Time For 1 Kinstruction 0.3 ms event and periodic task 0.7 ms other instruction
- Memory Capacity 8 MB program 64 MB system memory RAM
- Counting Input Number 4 fast input (HSC mode) 200 kHz 14 standard input 1 kHz
- Input Impedance 4.7 kOhm input 2.81 kOhm fast input
- Accuracy +/- 0.1 % 0.02…0.1 kHz fast output +/- 1 % 0.1…1 kHz fast output
- Mounting Support Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
- Control Signal Type A/B 100 kHz fast input (HSC mode) Pulse/direction 200 kHz fast input (HSC mode) Single phase 200 kHz fast input (HSC mode)
- Protection Type Short-circuit protection Short-circuit and overload protection with automatic reset Reverse polarity protection fast output
- Maximum Current Per Output Common 2 A Q0...Q3 fast output 2 A Q4...Q7 output 1 A Q8...Q9 output
- Maximum Output Frequency 20 kHz fast output (PWM mode) 100 kHz fast output (PLS mode) 1 kHz output
- Maximum Cable Distance Between Devices Unshielded cable <164.04 ft (50 m) input Shielded cable <32.81 ft (10 m) fast input Unshielded cable <164.04 ft (50 m) output Shielded cable <9.84 ft (3 m) fast output
- Transmission Rate 1.2...115.2 kbit/s (115.2 kbit/s by default) 49.21 ft (15 m) RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) 9.84 ft (3 m) RS232 480 Mbit/s 9.84 ft (3 m) USB 10/100 Mbit/s Ethernet
- Application Structure 8 external event tasks 8 event tasks 3 cyclic master tasks + 1 freewheeling task 4 cyclic master tasks
- Integrated Connection Type Non isolated serial link serial 1 RJ45 RS232/RS485 Non isolated serial link serial 2 removable screw terminal block RS485 USB port mini B USB 2.0 Ethernet RJ45
- Surge Withstand 1 kV power lines (DC) common mode EN/IEC 61000-4-5 1 kV shielded cable common mode EN/IEC 61000-4-5 0.5 kV power lines (DC) differential mode EN/IEC 61000-4-5 1 kV relay output differential mode EN/IEC 61000-4-5 1 kV input common mode
- Maximum Number Of Connections 8 Modbus server 8 SoMachine protocol 10 web server 4 FTP server 16 Ethernet/IP target 8 Modbus client
- Configurable Filtering Time 1 µs fast input 12 ms fast input 0 ms input 1 ms input 4 ms input 12 ms input
- Insulation Between supply and internal logic 500 V AC Non-insulated between supply and ground Between input and internal logic 500 V AC Non-insulated between inputs Between fast input and internal logic 500 V AC Between output and internal l
- Response Time 50 µs turn-on, I0...I13 input 50 µs turn-off, I0...I13 input <= 2 µs turn-on, I0...I7 fast input <= 2 µs turn-off, I0...I7 fast input <= 34 µs turn-on, Q0...Q9 output <= 250 µs turn-off, Q0...Q9 output <= 2 µs turn-on, Q0...Q
- Local Signalling for PWR 1 LED (green) for RUN 1 LED (green) for module error (ERR) 1 LED (red) for I/O error (I/O) 1 LED (red) for SD card access (SD) 1 LED (green) for BAT 1 LED (red) for SL1 1 LED (green) for SL2 1 LED (green)<
- Ethernet Services FDR DHCP server via TM4 Ethernet switch network module DHCP client embedded Ethernet port SMS notifications Updating firmware SNMP client/server Programming NGVL Monitoring IEC VAR ACCESS FTP client/server
