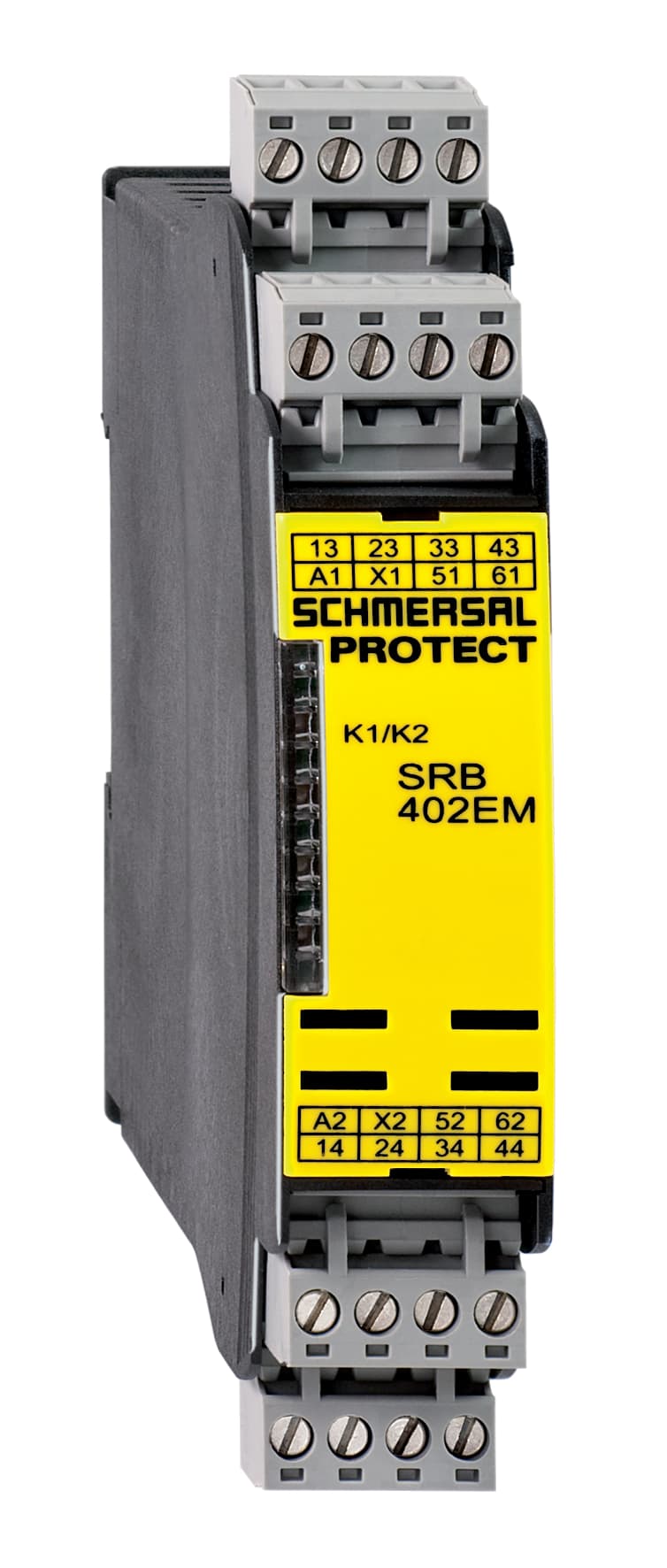

SRB402EM Schmersal Electronic Components
Part#:SRB402EM
Manufacturer:Schmersal
Alt. Part#:101170840
Product Lifecycle:Active
Get a quick Quote!
Output extensions; Expander module for contact expansion; 4 safety contacts, STOP 0; 2 Signalling outputs
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SRB402EM Schmersal price in the box on the right side or send a quick quote.
Product Details
- Feedback circuit Yes
- Number of LEDs 1
- Number of safety contacts 4
- Cable section, maximum 2.5 mm²
- Resistance to vibrations to EN 60068-2-6 10...55 Hz, Amplitude 0.35 mm, ± 15 %
- Wire breakage detection Yes
- Removable Terminals Yes
- Mounting Snaps onto standard DIN rail to EN 60715
- Depth 121 mm
- Storage and transport temperature, minimum -40 °C
- Overvoltage category III
- Contact resistance, maximum 0.1 Ω
- Rated AC voltage for controls at DC minimum 20.4 VDC
- Material of the contacts, electrical AgSn0. self-cleaning, positive drive
- Standards IEC 61508, EN 60947-5-1, EN 60204-1
- Terminal Connector rigid or flexible, Screw connection, plug-in
- Degree of protection of the enclosure IP40
- Frequency range 50 Hz, 60 Hz
- Rated impulse withstand voltage Uimp 4 kV
- Voltage, Utilisation category AC15 230 VAC
- Switching capacity, minimum 10 mA
- Electrical power consumption 1 VA
- Climatic stress EN 60068-2-78
- Stop-Category 0
- Width 22.5 mm
- Degree of protection of clips or terminals IP20
- Degree of pollution to IEC/EN 60664-1 2
- Automatic reset function Yes
- Mechanical life, minimum 10,000,000 Operations
- Height 120 mm
- Storage and transport temperature, maximum +85 °C
- Rated control voltage at AC 50 Hz, maximum 26.4 VAC
- Drop-out delay, maximum 35 ms
- Current, Utilisation category AC-15 6 A
- Conduction resistance, maximum 40 Ω
- Gross weight 250 g
- Enclosure material Glass-fibre reinforced thermoplastic, ventilated
- Terminal designations IEC/EN 60947-1
- Degree of protection of the mounting space IP54
- Rated operating voltage 24 VAC -15% / +10%, 24 VDC -15% / +20%, residual ripple max. 10 %
- Integral System Diagnostics, status Yes
- Earth connection detection Yes
- Tightening torque of Clips 0.6 Nm
- Ambient temperature, maximum +45 °C
- Rated AC voltage for controls, 50 Hz, minimum 20.4 VAC
- Pull-in delay at automatic start, maximum, typically 30 ms
- Voltage, Utilisation category DC13 24 VDC
- EMC rating EMC-Directive
- Number of auxiliary contacts 2
- Number of openers 1
- Cable section, minimum 0.25 mm²
- Ambient temperature, minimum -25 °C
- Restistance to shock 10 g / 11 ms
- Rated control voltage at AC 60 Hz, maximum 26.4 VAC
- Note (Contact resistance) in new state
- Current, Utilisation category DC13 6 A
- Switching capacity, maximum 2 A
- Rated AC voltage for controls, 60 Hz, minimum 20.4 VAC
- Rated control voltage at DC, maximum 28.8 VDC
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents SRB402EM Specs
