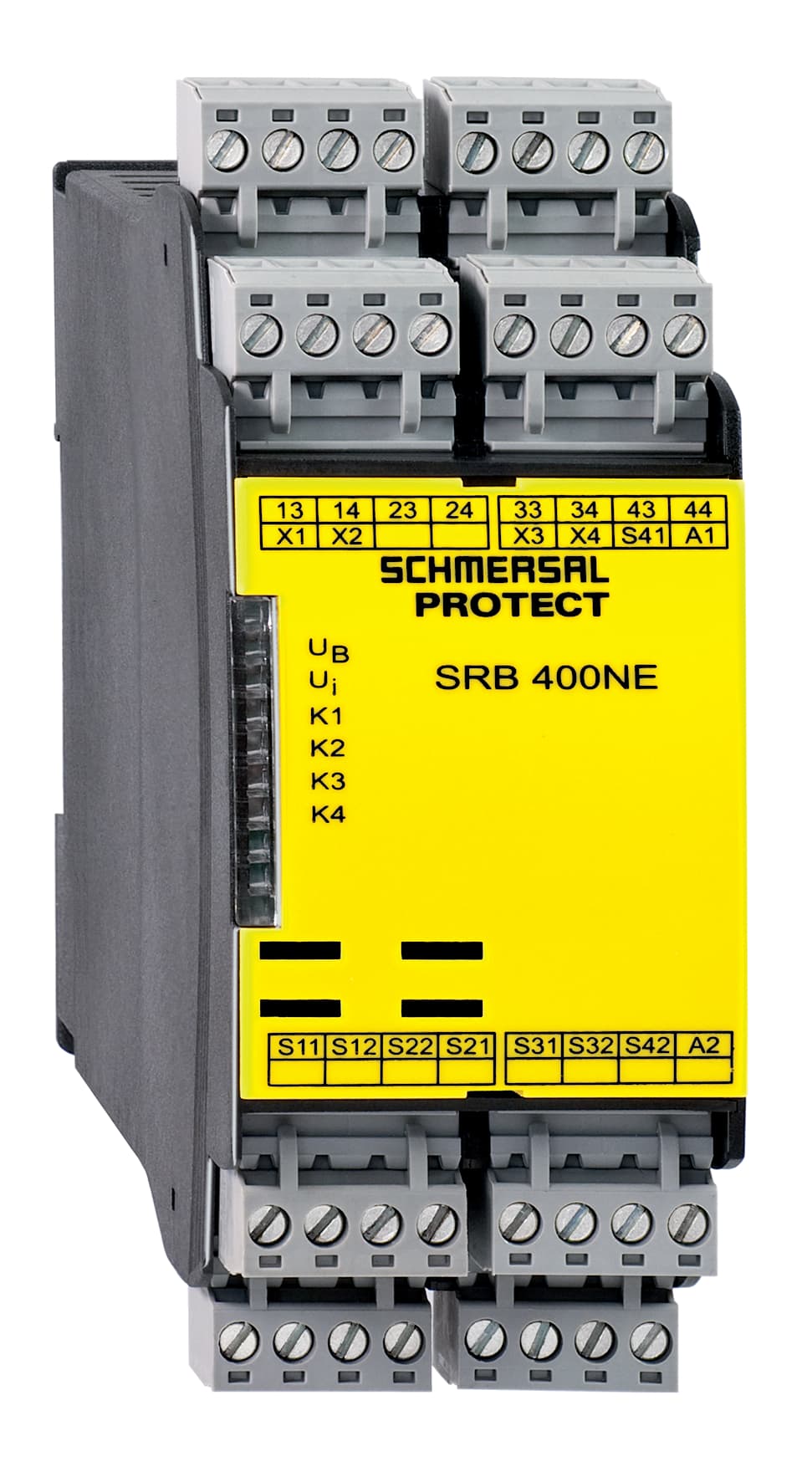

SRB400NE 24V Schmersal Electronic Components
Part#:SRB400NE 24V
Manufacturer:Schmersal
Alt. Part#:101178394
Product Lifecycle:Active
Get a quick Quote!
Safety-monitoring modules; Combination (double evaluation); Suitable for the signal processing of outputs with contact sensors; Possibility to connect a non-contact end switch or speed reduction switch; 2 safety contacts, switch-off level 1;2 safety conta
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SRB400NE 24V Schmersal price in the box on the right side or send a quick quote.
Product Details
- Material of the contacts, electrical Ag-Ni, self-cleaning, positive drive
- Integral System Diagnostics, status Yes
- Mounting Snaps onto standard DIN rail to EN 60715
- Ambient temperature, minimum -25 °C
- Storage and transport temperature, maximum +85 °C
- Rated AC voltage for controls, 50 Hz, minimum 20.4 VAC
- Drop-out delay in case of emergency, typically 20 ms
- Current, Utilisation category DC13 4 A
- EMC rating EMC-Directive
- Gross weight 350 g
- Stop-Category 0
- Terminal Connector Screw connection, rigid or flexible
- Degree of protection of clips or terminals IP20
- Storage and transport temperature, minimum -40 °C
- Frequency range 50 Hz, 60 Hz
- Note (Contact resistance) in new state
- Conduction resistance, maximum 40 Ω
- Short-circuit recognition Yes
- Feedback circuit Yes
- Mechanical life, minimum 10,000,000 Operations
- Cable section, maximum 2.5 mm²
- Restistance to shock 30 g / 11 ms
- Rated control voltage at DC, maximum 28.8 VDC
- Contact resistance, maximum 0.1 Ω
- Current, Utilisation category AC-15 4 A
- Wire breakage detection Yes
- Number of openers 4
- Height 100 mm
- Degree of protection of the enclosure IP40
- Rated control voltage at AC 50 Hz, maximum 26.4 VAC
- Electrical power consumption 6 W
- Voltage, Utilisation category AC15 230 VAC
- Enclosure material Glass-fibre reinforced thermoplastic, ventilated
- Earth connection detection Yes
- Terminal designations IEC/EN 60947-1
- Ambient temperature, maximum +45 °C
- Degree of pollution to IEC/EN 60664-1 2
- Rated impulse withstand voltage Uimp 4 kV
- Voltage, Utilisation category DC13 24 VDC
- Standards IEC 61508, IEC/EN 60204-1, EN 60947-5-1
- Number of safety contacts 4
- Tightening torque of Clips 0.6 Nm
- Resistance to vibrations to EN 60068-2-6 10...55 Hz, Amplitude 0.35 mm, ± 15 %
- Rated control voltage at AC 60 Hz, maximum 26.4 VAC
- Removable Terminals Yes
- Automatic reset function Yes
- Cable section, minimum 0.25 mm²
- Depth 121 mm
- Overvoltage category III
- Rated AC voltage for controls, 60 Hz, minimum 20.4 VAC
- Pull-in delay at automatic start, maximum, typically 100 ms
- Climatic stress EN 60068-2-78
- Number of LEDs 7
- Width 45 mm
- Degree of protection of the mounting space IP54
- Rated operating voltage 24 VAC -15% / +10%, 24 VDC -15% / +20%, residual ripple max. 10 %
- Rated AC voltage for controls at DC minimum 20.4 VDC
- Pull-in delay at RESET, typically 20 ms
- Switching capacity, minimum 10 mA
- Drop-out delay in case of power failure, typically 80 ms
- Switching capacity, maximum 2 A
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents SRB400NE 24V Specs
1-year warranty
