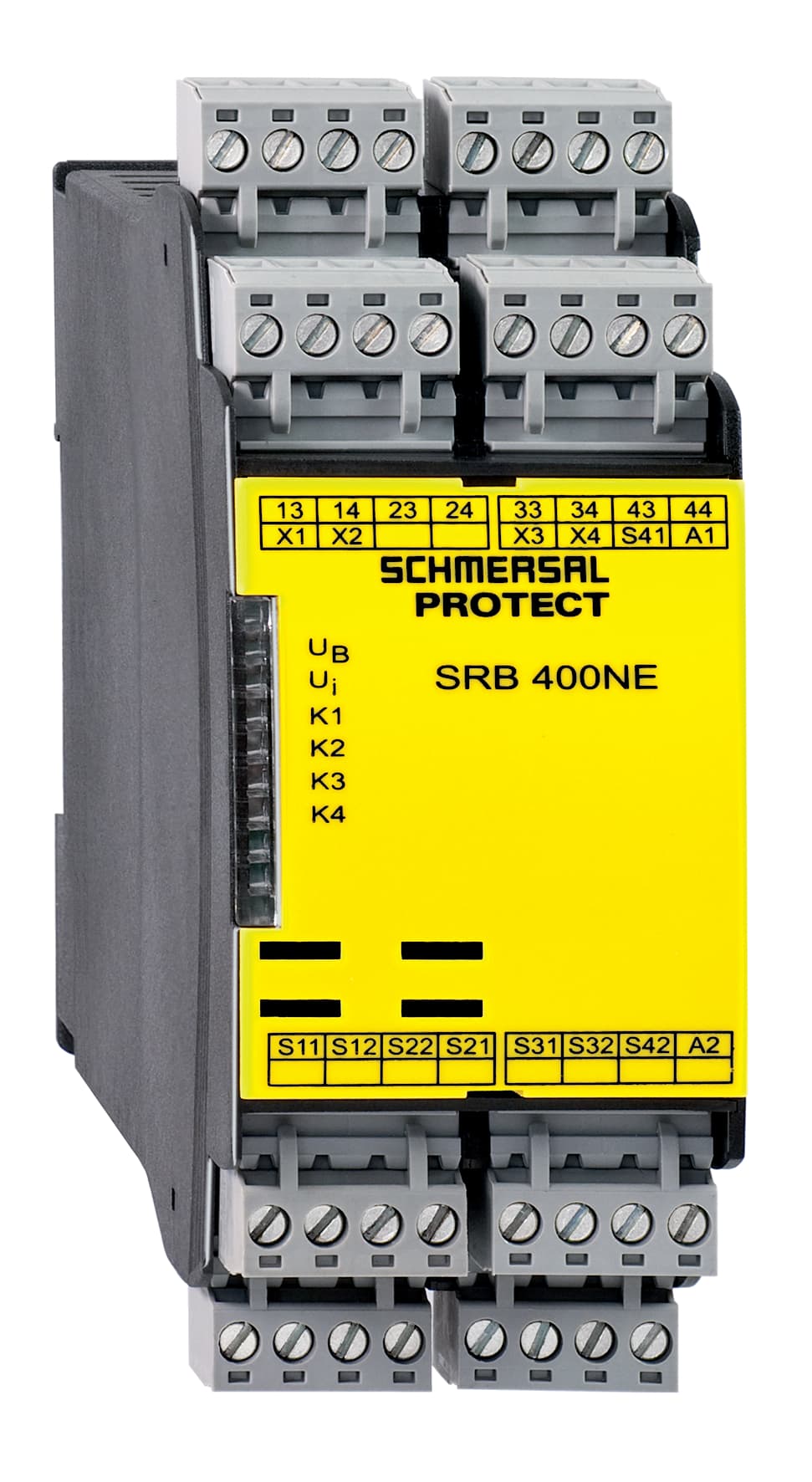

SRB400NE 230V Schmersal Electronic Components
Part#:SRB400NE 230V
Manufacturer:Schmersal
Alt. Part#:101178396
Product Lifecycle:Active
Get a quick Quote!
Safety-monitoring modules; Combination (double evaluation); Suitable for the signal processing of outputs with contact sensors; Possibility to connect a non-contact end switch or speed reduction switch; 2 safety contacts, switch-off level 1;2 safety conta
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SRB400NE 230V Schmersal price in the box on the right side or send a quick quote.
Product Details
- Removable Terminals Yes
- Material of the contacts, electrical Ag-Ni, self-cleaning, positive drive
- Number of openers 4
- Cable section, maximum 2.5 mm²
- Stop-Category 0
- Resistance to vibrations to EN 60068-2-6 10...55 Hz, Amplitude 0.35 mm, ± 15 %
- Rated control voltage at AC 50 Hz, maximum 253 VAC
- Drop-out delay in case of emergency, typically 20 ms
- Switching capacity, minimum 10 VDC
- Number of LEDs 7
- Enclosure material Glass-fibre reinforced thermoplastic, ventilated
- Short-circuit recognition Yes
- Terminal designations IEC/EN 60947-1
- Degree of protection of the enclosure IP40
- Rated impulse withstand voltage Uimp 4 kV
- Rated AC voltage for controls, 60 Hz, minimum 195.5 VAC
- Pull-in delay at RESET, typically 20 ms
- Wire breakage detection Yes
- Integral System Diagnostics, status Yes
- Tightening torque of Clips 0.6 Nm
- Frequency range 50 Hz, 60 Hz
- Feedback circuit Yes
- Terminal Connector Screw connection, rigid or flexible
- Degree of protection of the mounting space IP54
- Storage and transport temperature, maximum +85 °C
- Rated AC voltage for controls, 50 Hz, minimum 195.5 VAC
- Standards IEC 61508, IEC/EN 60204-1, EN 60947-5-1
- Earth connection detection Yes
- Mounting Snaps onto standard DIN rail to EN 60715
- Depth 121 mm
- Restistance to shock 30 g / 11 ms
- Rated control voltage at AC 60 Hz, maximum 253 VAC
- Automatic reset function Yes
- Number of safety contacts 4
- Storage and transport temperature, minimum -40 °C
- Rated operating voltage 230 VAC -15% / + 10%
- Note (Contact resistance) in new state
- Voltage, Utilisation category AC15 230 VAC
- Climatic stress EN 60068-2-78
- Gross weight 530 g
- Overvoltage category III
- Contact resistance, maximum 0.1 Ω
- Mechanical life, minimum 10,000,000 Operations
- Width 45 mm
- Pull-in delay at automatic start, maximum, typically 100 ms
- Switching capacity, maximum 24 VDC
- Cable section, minimum 0.25 mm²
- Degree of pollution to IEC/EN 60664-1 2
- Current, Utilisation category AC-15 4 A
- EMC rating EMC-Directive
- Height 100 mm
- Drop-out delay in case of power failure, typically 80 ms
- Current, Utilisation category DC13 4 A
- Degree of protection of clips or terminals IP20
- Electrical power consumption 6 W
- Voltage, Utilisation category DC13 24 VDC
- Conduction resistance, maximum 40 Ω
- Ambient temperature, minimum -25 °C
- Ambient temperature, maximum +45 °C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents SRB400NE 230V Specs
