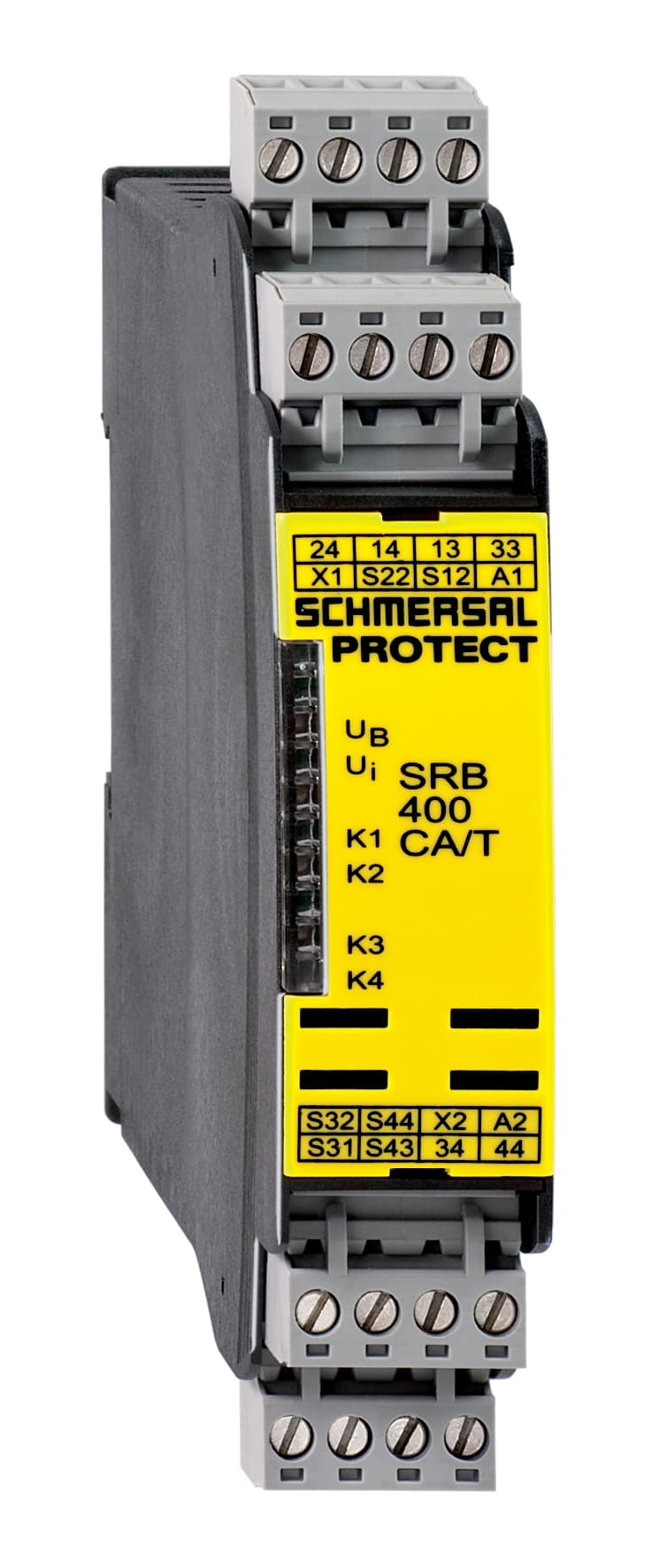

SRB400CA 24VDC Schmersal Electronic Components
Part#:SRB400CA 24VDC
Manufacturer:Schmersal
Alt. Part#:101176198
Product Lifecycle:Active
Get a quick Quote!
Safety-monitoring modules; Combination (double evaluation); Level 1: Reset without edge detection, Optional Automatic reset function, Level 2: / Opener (NC) Normally open contact (NO); Two-functions safety monitoring module (double evaluation); 2 x 2 enab
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SRB400CA 24VDC Schmersal price in the box on the right side or send a quick quote.
Product Details
- Climatic stress EN 60068-2-78
- Start input Yes
- Stop-Category 0
- Integral System Diagnostics, status Yes
- Cable section, minimum 0.25 mm²
- Cable section, maximum 2.5 mm²
- Rated control voltage at DC, maximum 28.8 VDC
- Electronic Fuse Yes
- Automatic reset function Yes
- Number of safety contacts 4
- Degree of protection of clips or terminals IP20
- Storage and transport temperature, maximum +85 °C
- Contact resistance, maximum 0.1 Ω
- Terminal designations IEC/EN 60947-1
- Ambient temperature, minimum -25 °C
- Degree of pollution to IEC/EN 60664-1 2
- Pull-in delay at RESET, typically 20 ms
- ON delay at automatic start Adjustable
- Conduction resistance, maximum 40 Ω
- Rated AC voltage for controls at DC minimum 20.4 VDC
- Standards IEC 61508, IEC/EN 60204-1, EN 60947-5-1
- Enclosure material Glass-fibre reinforced thermoplastic, ventilated
- Number of inputs for NO 1
- Terminal Connector Screw connection, rigid or flexible
- Ambient temperature, maximum +45 °C
- Rated operating voltage 24 VDC -15%/+20%, residual ripple max. 10%
- Drop-out delay in case of power failure, typically 80 ms
- Wire breakage detection Yes
- Earth connection detection Yes
- Mounting Snaps onto standard DIN rail to EN 60715
- Depth 121 mm
- Rated impulse withstand voltage Uimp 4 kV
- Note (Contact resistance) in new state
- Current, Utilisation category DC13 6 A
- Material of the contacts, electrical Ag-Ni, self-cleaning, positive drive
- Number of LEDs 6
- Mechanical life, minimum 10,000,000 Operations
- Degree of protection of the enclosure IP40
- Overvoltage category III
- Pull-in delay at automatic start, maximum, typically 100 ms
- Voltage, Utilisation category DC13 24 VDC
- Gross weight 235 g
- Number of inputs for NC 3
- Width 22.5 mm
- Degree of protection of the mounting space IP54
- Restistance to shock 10 g / 11 ms
- Electrical power consumption 4.4 W
- Voltage, Utilisation category AC15 250 VAC
- Removable Terminals Yes
- Feedback circuit Yes
- Height 100 mm
- Tightening torque of Clips 0.6 Nm
- Storage and transport temperature, minimum -40 °C
- Resistance to vibrations to EN 60068-2-6 10 ... 55 Hz, Amplitude 0.35 mm
- Drop-out delay in case of emergency, typically 20 ms
- Current, Utilisation category AC-15 6 A
- EMC rating EMC-Directive
- Switching capacity, minimum 10 mA
- Switching capacity, maximum 2 A
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents SRB400CA 24VDC Specs
