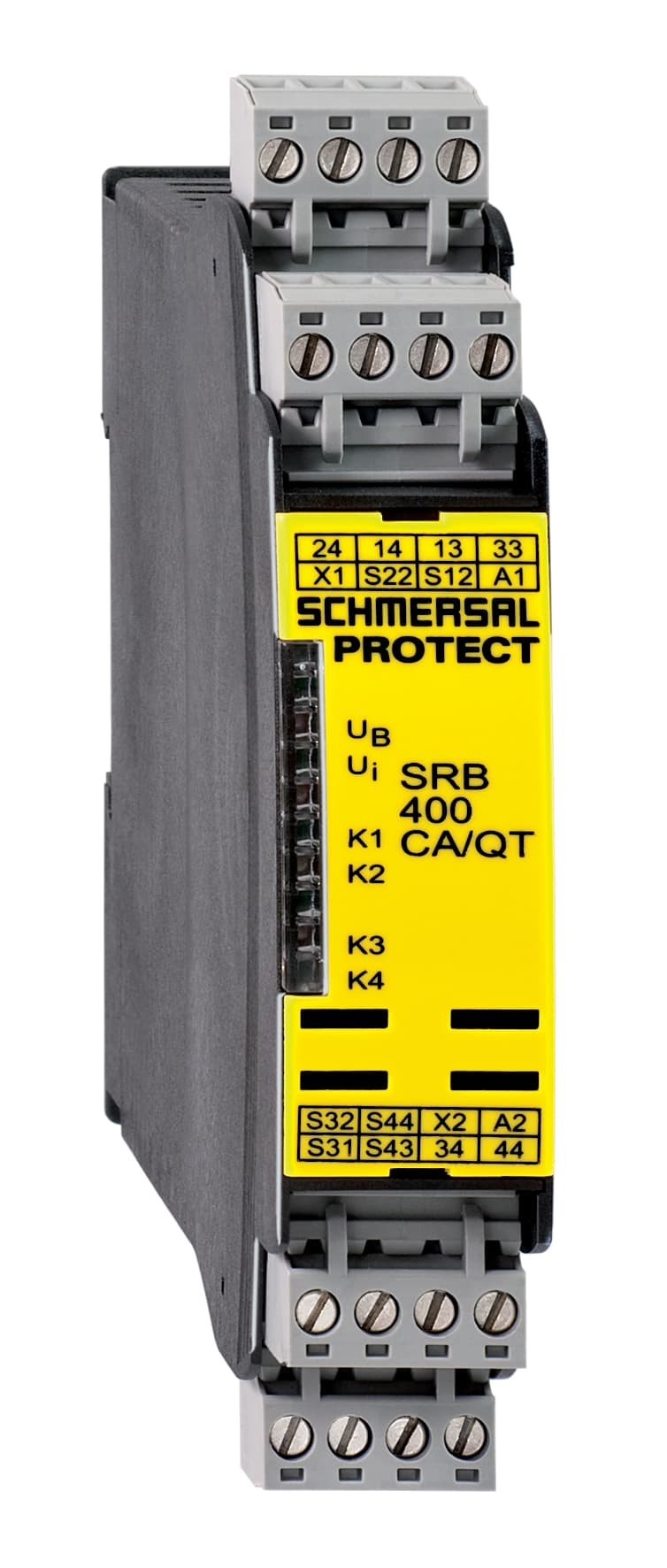

SRB400CA/Q 24VDC Schmersal Electronic Components
Part#:SRB400CA/Q 24VDC
Manufacturer:Schmersal
Alt. Part#:101176213
Product Lifecycle:Active
Get a quick Quote!
Safety-monitoring modules; Combination (double evaluation); Level 1: Reset without edge detection, Optional Automatic reset function, Short-circuit recognition, Level 2: / Opener (NC) Normally open contact (NO); Two-functions safety monitoring module (dou
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SRB400CA/Q 24VDC Schmersal price in the box on the right side or send a quick quote.
Product Details
- Enclosure material Glass-fibre reinforced thermoplastic, ventilated
- Number of inputs for NO 1
- Width 22.5 mm
- Restistance to shock 10 g / 11 ms
- Contact resistance, maximum 0.1 Ω
- Voltage, Utilisation category DC13 24 VDC
- EMC rating EMC-Directive
- Electronic Fuse Yes
- Feedback circuit Yes
- Terminal Connector Screw connection, rigid or flexible
- Degree of protection of the mounting space IP54
- Ambient temperature, minimum -25 °C
- Electrical power consumption 4.4 W
- Short-circuit recognition Yes
- Automatic reset function Yes
- Mounting Snaps onto standard DIN rail to EN 60715
- Height 100 mm
- Ambient temperature, maximum +45 °C
- Rated AC voltage for controls at DC minimum 20.4 VDC
- Voltage, Utilisation category AC15 250 VAC
- Climatic stress EN 60068-2-78
- Standards IEC 61508, IEC/EN 60204-1, EN 60947-5-1
- Number of safety contacts 4
- Cable section, minimum 0.25 mm²
- Storage and transport temperature, minimum -40 °C
- Drop-out delay in case of power failure, typically 80 ms
- Switching capacity, minimum 10 mA
- Gross weight 235 g
- Start input Yes
- Mechanical life, minimum 10,000,000 Operations
- Cable section, maximum 2.5 mm²
- Degree of protection of clips or terminals IP20
- Overvoltage category III
- Rated control voltage at DC, maximum 28.8 VDC
- Current, Utilisation category AC-15 6 A
- Stop-Category 0
- Number of inputs for NC 3
- Tightening torque of Clips 0.6 Nm
- Resistance to vibrations to EN 60068-2-6 10 ... 55 Hz, Amplitude 0.35 mm
- Rated operating voltage 24 VDC -15%/+20%, residual ripple max. 10%
- ON delay at automatic start Adjustable
- Wire breakage detection Yes
- Integral System Diagnostics, status Yes
- Terminal designations IEC/EN 60947-1
- Storage and transport temperature, maximum +85 °C
- Note (Contact resistance) in new state
- Current, Utilisation category DC13 6 A
- Removable Terminals Yes
- Number of LEDs 6
- Depth 121 mm
- Rated impulse withstand voltage Uimp 4 kV
- Drop-out delay in case of emergency, typically 20 ms
- Material of the contacts, electrical Ag-Ni, self-cleaning, positive drive
- Earth connection detection Yes
- Degree of pollution to IEC/EN 60664-1 2
- Degree of protection of the enclosure IP40
- Pull-in delay at RESET, typically 20 ms
- Conduction resistance, maximum 40 Ω
- Pull-in delay at automatic start, maximum, typically 100 ms
- Switching capacity, maximum 24 VDC
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents SRB400CA/Q 24VDC Specs
1-year warranty
