BNS 260-02Z-L Schmersal Electronic Components
Part#:BNS 260-02Z-L
Manufacturer:Schmersal
Alt. Part#:101184385
Product Lifecycle:Active
Get a quick Quote!

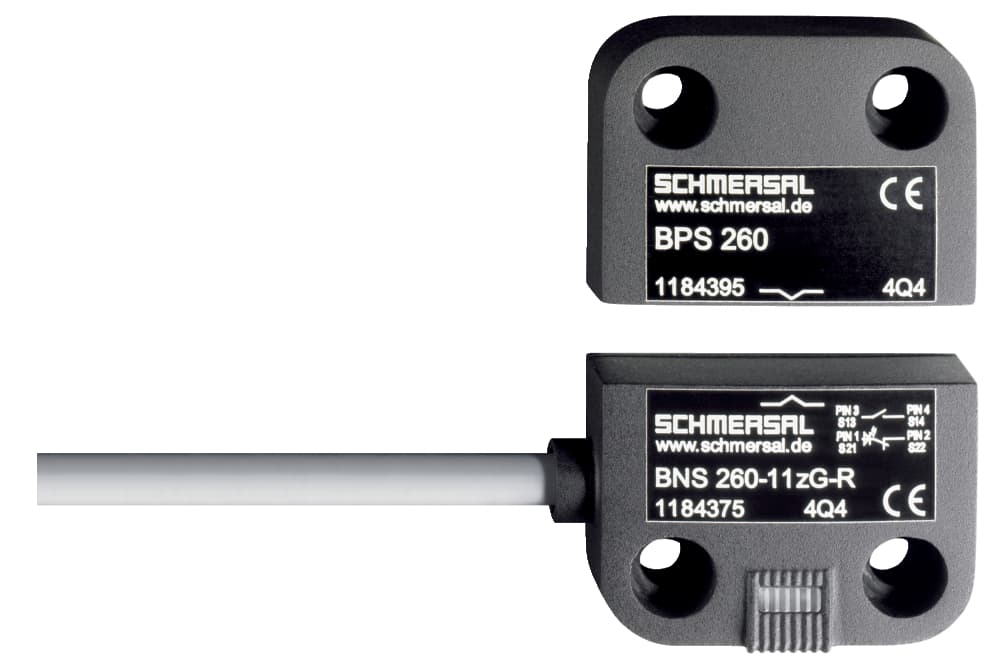

Safety sensors; Magnetic safety sensors; Pre-wired cable; Thermoplastic enclosure; Small body; Concealed mounting possible; 26 mm x 36 mm x 13 mm; Long life; no mechanical wear; Insensitive to transverse misalignment; Insensitive to soiling
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the BNS 260-02Z-L Schmersal price in the box on the right side or send a quick quote.
Product Details
- Gross weight 55 g
- Actuating element Magnet
- Storage and transport temperature, minimum -25 °C
- Standards IEC 60947-5-3, BG-GS-ET-14
- Direction of motion Head-on to the active surface
- Ambient temperature, minimum -25 °C
- Switching current, maximum 0.4 A
- Active principle Magnetic drive
- Ensured switch distance OFF Sar 15 mm
- Material of the Cable mantle PVC
- Resistance to vibrations to EN 60068-2-6 10 … 55 Hz, amplitude 1 mm
- Number of cable wires 4
- Coding level according to ISO 14119 Low
- Terminal Connector Cable
- Degree of protection IP67
- Restistance to shock 30 g / 11 ms
- Installation conditions (mechanical) quasi-flush
- Notice (Switch distance Sn) Axial misalignment, a horizontal and vertical misalignment of the safety sensor and the actuator are tolerated. The possible misalignment depends on the distance of the active surfaces of the sensor and the actuator. The sensor remains active within the t
- Width of sensor 26 mm
- Storage and transport temperature, maximum +70 °C
- Switching frequency, maximum 5 Hz
- Number of openers 2
- Wire cross-section 0.25 mm2
- Length of cable 1 m
- Ambient temperature, maximum +70 °C
- Switching capacity, maximum 10 VA
- Enclosure material Glass-fibre, reinforced thermoplastic
- Ensured switch distance ON Sao 5 mm
- Height of sensor 36 mm
- Voltage type DC (direct current)
- Number of safety contacts 2
- Door hinge Left
- Length of sensor 13 mm
- Switching voltage, maximum 75 VDC
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
