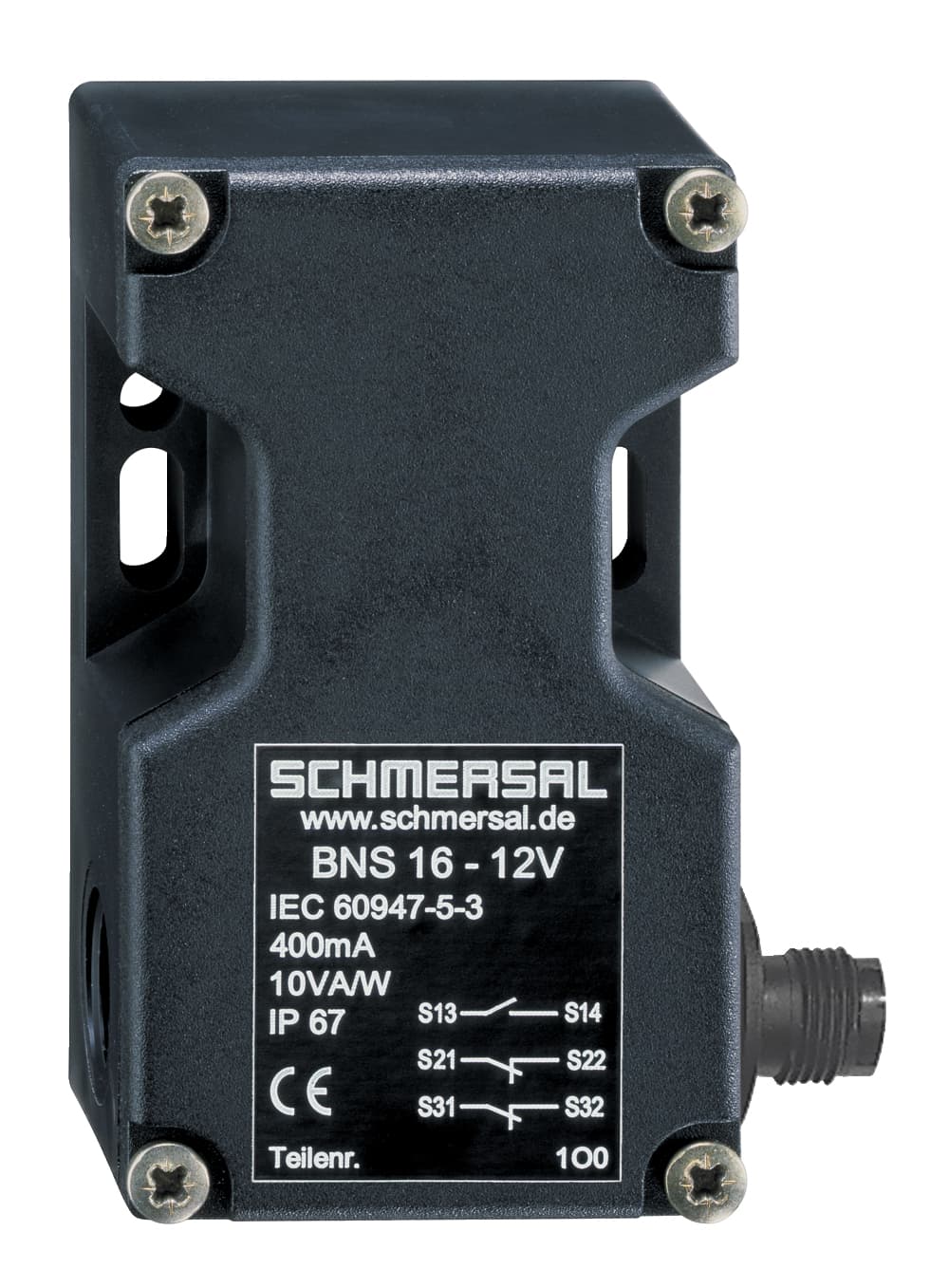

BNS 16-12ZD-ST2 Schmersal Electronic Components
Part#:BNS 16-12ZD-ST2
Manufacturer:Schmersal
Alt. Part#:101218956
Product Lifecycle:Active
Get a quick Quote!
Safety sensors; Magnetic safety sensors; Connector M12, 8-pole; Thermoplastic enclosure; Suitable for food processing industry; Concealed mounting possible; 52 mm x 90 mm x 32 mm; Long life; no mechanical wear; Insensitive to transverse misalignment; Inse
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the BNS 16-12ZD-ST2 Schmersal price in the box on the right side or send a quick quote.
Product Details
- Prerequisite evaluation unit Yes
- Ensured switch distance ON Sao 8 mm
- Ambient temperature, minimum -25 °C
- Versions Miscellaneous, Reed contacts
- Enclosure material Glass-fibre, reinforced thermoplastic
- Gross weight 150 g
- Actuating element Magnet
- Restistance to shock 30 g / 11 ms
- Number of shutters 1
- Number of openers 2
- Ensured switch distance OFF Sar 18 mm
- Connector position Right
- Active area cover-side
- Width of sensor 52 mm
- Ambient temperature, maximum +70 °C
- Coding level according to ISO 14119 Low
- Terminal Connector Connector M12
- Degree of protection IP67
- Switching capacity, maximum 10 W
- Standards IEC 60947-5-3, BG-GS-ET-14
- Length of sensor 39 mm
- Resistance to vibrations to EN 60068-2-6 10 … 55 Hz, amplitude 1 mm
- Switching frequency, maximum 5 Hz
- Switching current, maximum 0.4 A
- Active principle Magnetic drive
- Direction of motion Head-on to the active surface
- Storage and transport temperature, minimum -25 °C
- Switching voltage, maximum 100 VDC
- Installation conditions (mechanical) not flush
- Height of sensor 90 mm
- Storage and transport temperature, maximum +70 °C
- Voltage type AC (alternating current), DC (direct current)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents BNS 16-12ZD-ST2 Specs
1-year warranty
