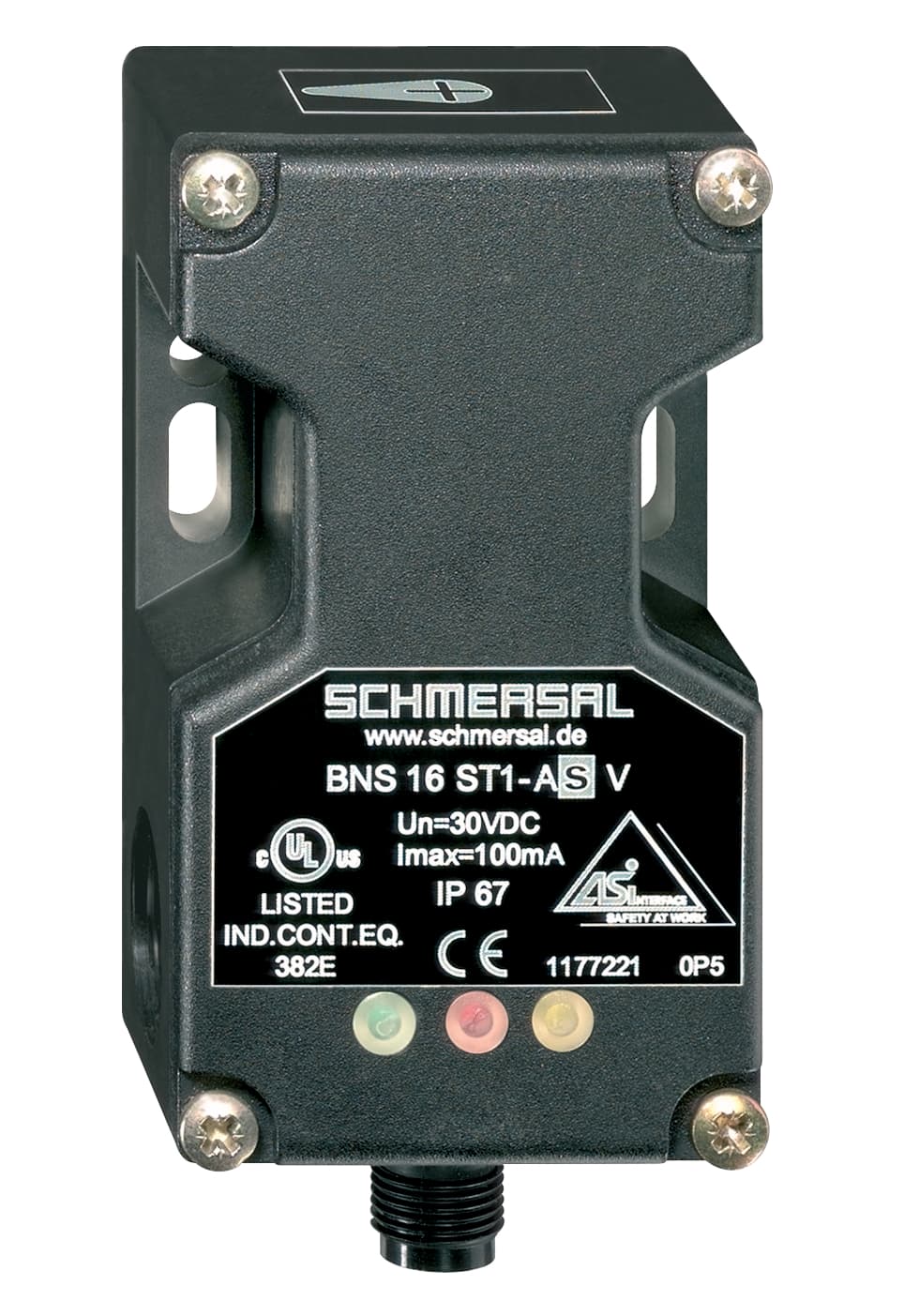

BNS 16 ST1-AS V Schmersal Electronic Components
Part#:BNS 16 ST1-AS V
Manufacturer:Schmersal
Alt. Part#:101177221
Product Lifecycle:Active
Get a quick Quote!
AS interface safety at work; Safety switchgear; connector plug M12, bottom, 4-pole; Safety sensor; Thermoplastic enclosure; no mechanical wear; 40 mm x 90 mm x 39 mm; Integrated AS-Interface; Concealed mounting possible; Long life; Insensitive to transver
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the BNS 16 ST1-AS V Schmersal price in the box on the right side or send a quick quote.
Product Details
- Installation conditions (mechanical) quasi-flush
- Terminal Connector Connector plug M12, 4-pole, (A-coding)
- Storage and transport temperature, maximum +70 °C
- Overvoltage category III
- AS-i, ID-Code1 0xF
- AS-i Parameter bits, P0 ... P3 No function
- Coding Yes
- Direction of motion Head-on to the active surface
- Width of sensor 40 mm
- Restistance to shock 30 g / 11 ms
- Actuating element Magnet
- Active principle Magnetic drive
- Height of sensor 90 mm
- Protection rating II
- Note (AS-i Operating voltage) Protection against polarity reversal
- AS-i Version V 2.1
- AS-i Outputs, DO 0 … DO 3 No Function
- Reaction time, maximum 100 ms
- Ensured switch distance OFF Sar 18 mm
- Degree of protection IP67 to EN 60529
- Degree of pollution to VDE 0100 3
- AS-i Specification Safety-Slave
- AS-i Input, Channel 1 Data bits DI 0 / DI 1 = dynamic code transmission
- Gross weight 138.6 g
- Ensured switch distance ON Sao 8 mm
- Ambient temperature, minimum -25 °C
- Resistance to vibrations to EN 60068-2-6 10 … 55 Hz, amplitude 1 mm
- AS-i Profile S-0.B.F.E
- AS-i Input module address 0
- Enclosure material Glass-fibre, reinforced thermoplastic
- Standards IEC 61508, IEC 60947-5-3, EN 62026-2
- Connector position Bottom
- Ambient temperature, maximum +60 °C
- Rated insulation voltage Ui 32 VDC
- AS-i Operating voltage AS-i maximum 31.6 VDC
- AS-i Input, Channel 2 Data bits DI 2 / DI 3 = dynamic code transmission
- Integral System Diagnostics, status Yes
- Repeat accuracy R ≤ 0.1 x Sao
- Storage and transport temperature, minimum -25 °C
- Rated impulse withstand voltage Uimp 0.8 kV
- AS-i, IO-Code 0x0
- Note (AS-i Input module address) Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
- Active area front side
- Length of sensor 38.5 mm
- AS-i Operating voltage, minimum 18 VDC
- AS-i, ID-Code 0xB
- Note (AS-i Parameter bits) Set the parameter outputs to "1111" (0xF), FID: periphery error
- AS-i Current consumption, maximum 50 mA
- AS-i, ID-Code2 0xE
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents BNS 16 ST1-AS V Specs
