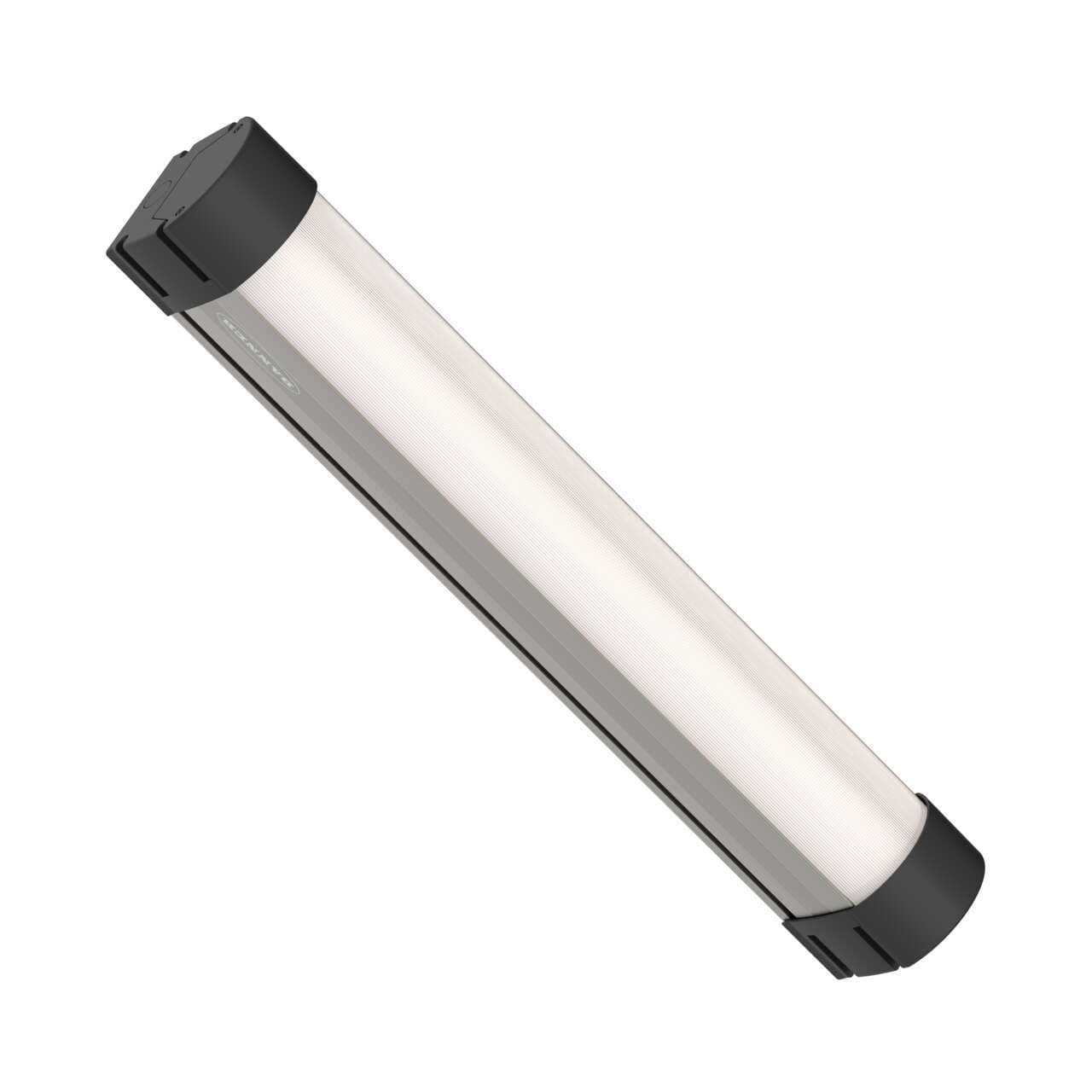

WLB92ZCWW550ACT Banner Light Bars
Part#:WLB92ZCWW550ACT
Manufacturer:Banner
Alt. Part#:800372
Product Lifecycle:Active
Get a quick Quote!
WLB92 Work Light Bar; 0-10 V dc Analog Dimming; Length: 550 mm; Voltage: 100-277 V ac; Environmental Rating: IP40; Color: Warm White; Cascadable; Conduit Openings - No Power cord; Diffuse window
About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLB92ZCWW550ACT Banner price in the box on the right side or send a quick quote.
Product Details
- Weight3311.2216 g
- Country Of OriginMX
- Color Technology Standard LED
- Illuminated Length (LxWxH mm) 542.0
- Feature: Cascade Yes
- Primary Housing Material Aluminum
- Color Option 1 White
- Physical Dimensions (LxWxH or DxH mm) 651.0 x 97.0 x 104.0
- Feature: Quick Disconnect No
- Number of Colors / Segments 1
- Dimming Option 0-10 V dc
- Max Op. Temperature (°C) 50
- IO Link No
- Product Size (mm) 92
- Lumens Color 1 3510
- Storage Temp (°C) -40 to 70
- Modbus RTU No
- Mounting Thread No Thread
- Power Source AC
- Supply Voltage 100-277 V ac
- Feature: Audible No
- Power AC
- Connection Conduit
- Feature: Hazardous Area No
- Wireless No
- Illumination Yes
- Number of Input Pins/Conductors 5
- Primary Window Material Polycarbonate Diffused
- Pro-Editor Compatible (Discrete) No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 1 - Wavelength/Color Temp/Coordinates 3000K (Warm)
- Min Op. Temperature (°C) -35
- Housing Style Linear Strip
- Animation Option 1 Solid On
- Environmental Rating IP40
- Feature: Chemical Resistant No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLB92ZCWW550ACT Description
Banner Engineering WLB92ZCWW550ACT is a task light designed for industrial applications, featuring a large, ultra-bright LED light strip/bar that is cascadable. It offers 0-10Vdc analog dimming control input and provides 1-color warm white (WW) LED illumination. This product operates on a supply voltage of 100Vac-277Vac, accommodating 120Vac, 220Vac, 230Vac, and 240Vac. The dimensions are L550mm x W92mm, with a polycarbonate (PC) diffused window and aluminium housing. It includes a 1/2" cond. knock-out entry for connection, designed in a linear lighting shape. The WLB92ZCWW550ACT has an IP40 degree of protection and supports surface or wall mounting modes. It is suitable for operation in ambient air temperatures ranging from -35°C to +50°C and features 1 x digital input (100-240Vac) for color control.
Related documents WLB92ZCWW550ACT Specs
