WLB92ZC550PBQMD Banner Electronic Components
Part#:WLB92ZC550PBQMD
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

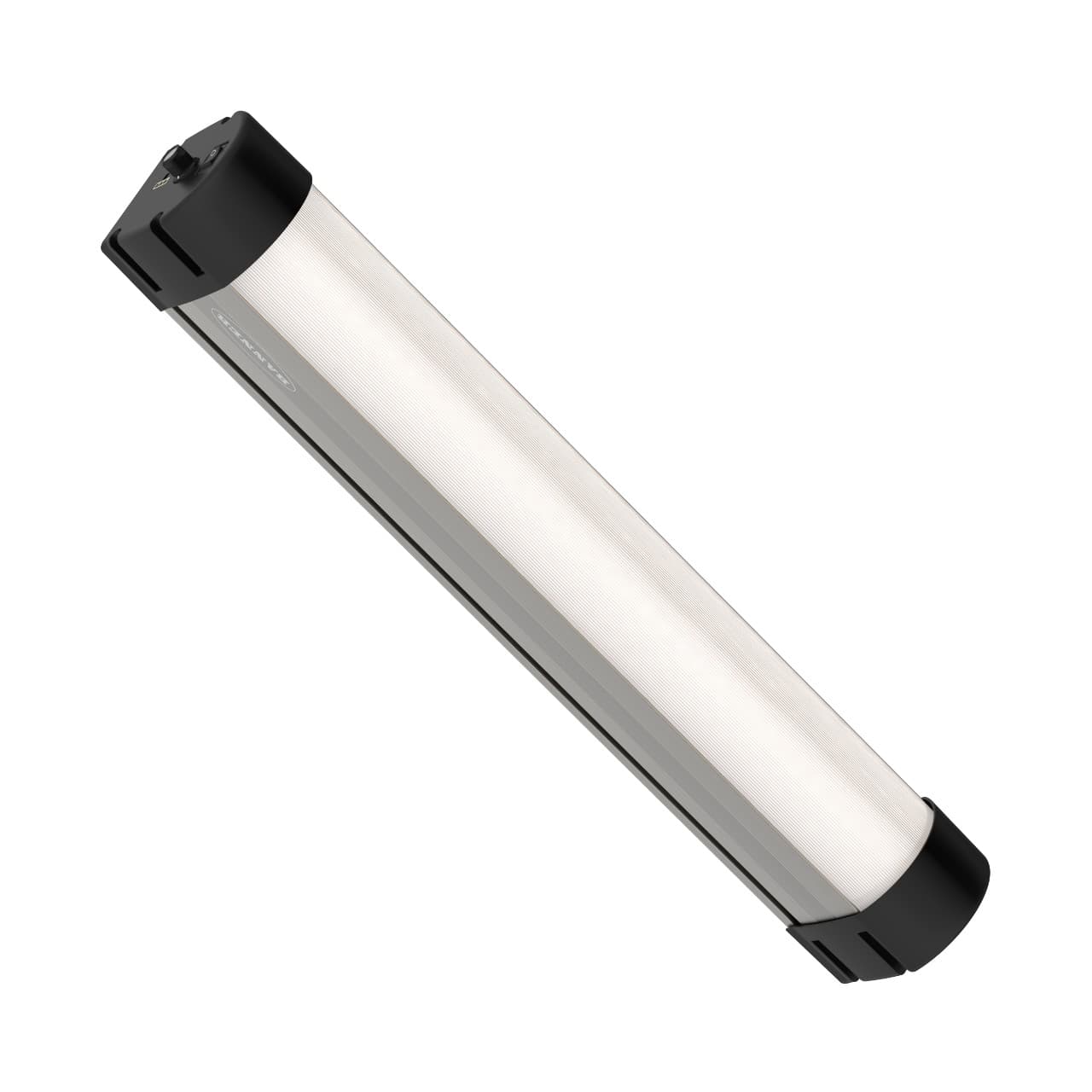

WLB92 Work Light Bar; Switched On/Off; Dimming Potentiometer, Length: 550 mm; Voltage: 100-277 V ac; Environmental Rating: IP40, Color: White; Cascadable, Quick Disconnect - Includes Type D Power cord; Diffuse window
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLB92ZC550PBQMD Banner price in the box on the right side or send a quick quote.
Product Details
- IO Link No
- Power Source AC
- Color Option 1 White
- Environmental Rating IP40
- Feature: Cascade Yes
- Product Size (mm) 92
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Illuminated Length (LxWxH mm) 542.0
- Number of Colors / Segments 1
- Supply Voltage 100-277 V ac
- Feature: Hazardous Area No
- Power AC
- Color Technology Standard LED
- Max Op. Temperature (°C) 50
- Feature: Audible No
- Illumination Yes
- Animation Option 1 Solid On
- Min Op. Temperature (°C) -35
- Feature: Chemical Resistant No
- Mounting Thread No Thread
- Lumens Color 1 3510
- Primary Window Material Polycarbonate Diffused
- Wireless No
- Housing Style Linear Strip
- Number of Input Pins/Conductors 3
- Illumination Switch Function O=OFF; I=ON
- Primary Housing Material Aluminum
- Connection Integral QD
- Storage Temp (°C) -40 to 70
- Modbus RTU No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Dimming Option Dimmer Knob
- Physical Dimensions (LxWxH or DxH mm) 665.0 x 97.0 x 104.0
- Pro-Editor Compatible (Discrete) No
