WLB92X550PBQ Banner Light Bars
Part#:WLB92X550PBQ
Manufacturer:Banner
Alt. Part#:93279
Product Lifecycle:Active
Get a quick Quote!
WLB92 Work Light Bar; Switched On/Off; Dimming Potentiometer; Length: 550 mm; Voltage: 24 V dc; Environmental Rating: IP40; Color: White; 4-pin M12 Integral QD; Diffuse Window
About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLB92X550PBQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight2585.4744 g
- Country Of OriginMX
- Power Source DC
- Product Size (mm) 92
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Primary Window Material Polycarbonate Diffused
- Wireless No
- Primary Housing Material Aluminum
- Color Technology Standard LED
- Max Op. Temperature (°C) 70
- Feature: Audible No
- Mounting Thread No Thread
- Lumens Color 1 3510
- Min Op. Temperature (°C) -40
- Modbus RTU No
- Housing Style Linear Strip
- Color Option 1 White
- Supply Voltage 24 V dc
- Feature: Hazardous Area No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Animation Option 1 Solid On
- Storage Temp (°C) -40 to 70
- Pro-Editor Compatible (Discrete) No
- Illumination Yes
- Connection Integral QD
- Illumination Switch Function O=OFF; I=ON
- Number of Colors / Segments 1
- Quick Disconnect Type M12 (Euro)
- Environmental Rating IP40
- Feature: Chemical Resistant No
- Cable Length (m) 2
- Dimming Option Dimmer Knob
- Number of Input Pins/Conductors 4
- Feature: Quick Disconnect Yes
- Power DC
- Physical Dimensions (LxWxH or DxH mm) 671.0 x 97.0 x 104.0
- IO Link No
- Illuminated Length (LxWxH mm) 542.0
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLB92X550PBQ Description

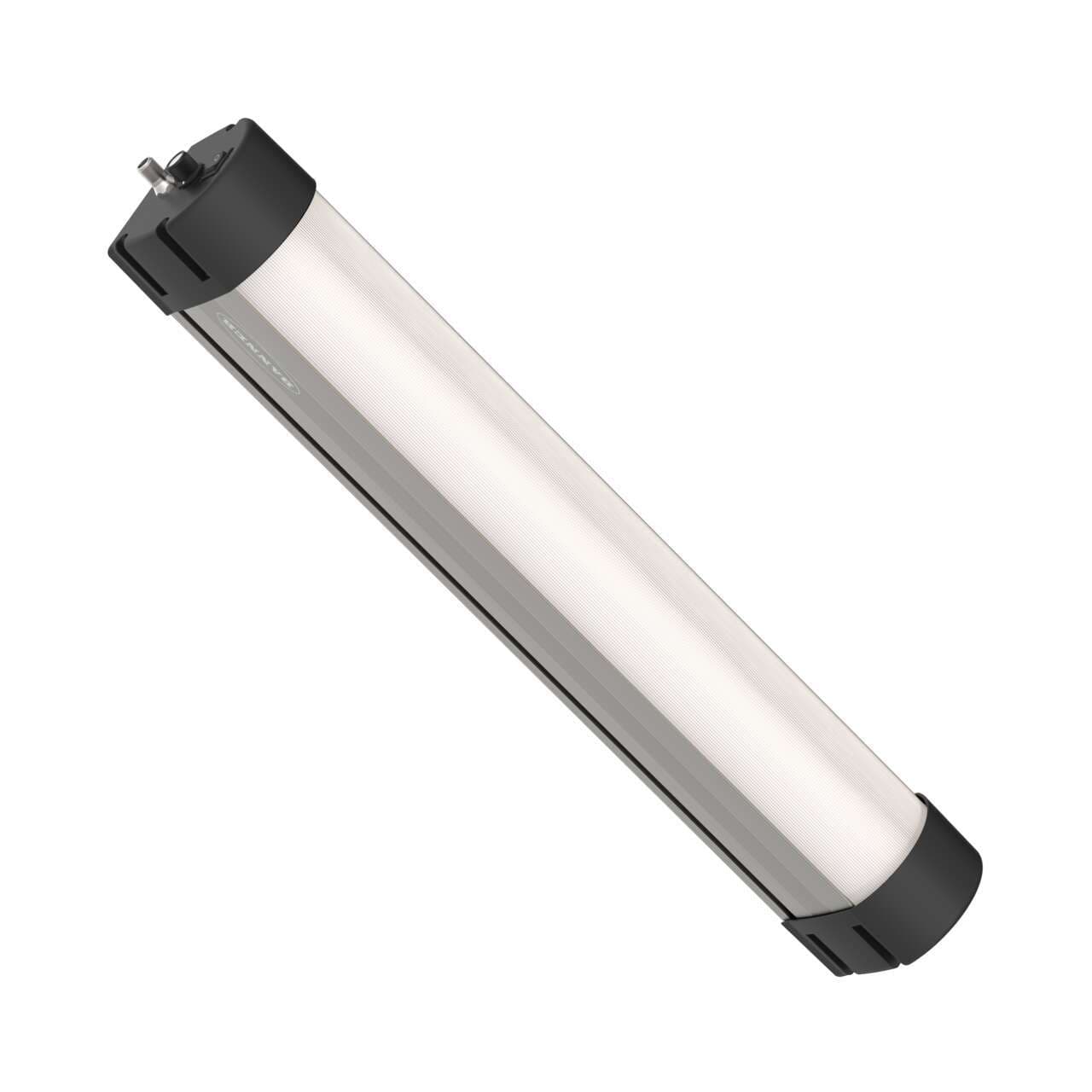

Banner Engineering WLB92X550PBQ is an industrial large ultra-bright LED task light strip/bar designed for a variety of lighting needs. It features 1-color Daylight White (DW) LED illumination and operates on a 24Vdc supply voltage. The dimensions of this product are L550mm x W92mm, and it is constructed with a polycarbonate (PC) diffused window and an aluminium housing for durability. This task light is pre-equipped with a 4-pin M12 Euro-style QD connector for easy connection and is designed in a linear lighting shape. It offers a degree of protection of IP40 and can be mounted on surfaces or walls. The ambient air temperature for operation ranges from -40°C to +70°C. Additionally, it includes 1 x digital input (24Vdc) for color control.
