WLB92ZCB550PBQM Banner Electronic Components
Part#:WLB92ZCB550PBQM
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

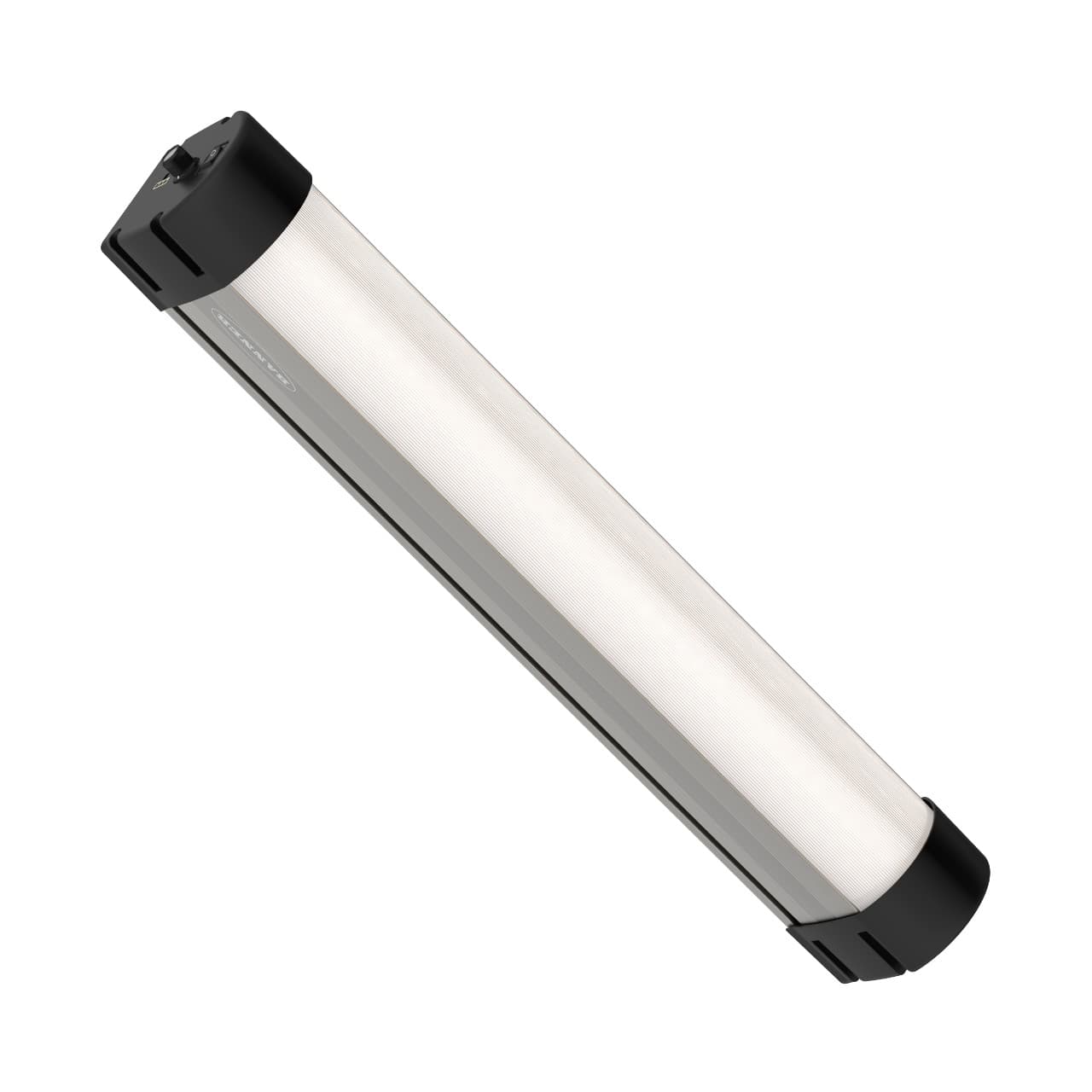

Banner Engineering WLB92ZCB550PBQM is a cascadable industrial large ultra-bright LED task light strip/bar designed for a variety of lighting tasks. It features 1-color blue LED illumination and operates on a supply voltage range of 100Vac-277Vac, accommodating 120Vac, 220Vac, 230Vac, and 240Vac. The dimensions of this product are L550mm x W92mm, and it is constructed with a polycarbonate (PC) diffused window and an aluminium housing for durability. It comes pre-equipped with a plug-in connector for easy installation and is designed in a linear lighting shape. The WLB92ZCB550PBQM offers a degree of protection of IP40 and can be mounted on surfaces or walls. It is designed to operate in ambient air temperatures ranging from -40°C to +70°C and includes 1 x digital input (100-240Vac) for color control.
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLB92ZCB550PBQM Banner price in the box on the right side or send a quick quote.
Product Details
- Housing Style Linear Strip
- Illuminated Length (LxWxH mm) 542.0
- Feature: Audible No
- Power AC
- Number of Input Pins/Conductors 3
- Primary Window Material Polycarbonate Diffused
- Wireless No
- Power Source AC
- Color Option 1 Blue
- Min Op. Temperature (°C) -35
- Modbus RTU No
- Mounting Thread No Thread
- Supply Voltage 100-277 V ac
- Feature: Hazardous Area No
- Pro-Editor Compatible (Discrete) No
- Number of Colors / Segments 1
- Lumens Color 1 405
- Animation Option 1 Solid On
- Storage Temp (°C) -40 to 70
- IO Link No
- Primary Housing Material Aluminum
- Color 1 - Wavelength/Color Temp/Coordinates 470 nm
- Illumination Switch Function O=OFF; I=ON
- Product Size (mm) 92
- Dimming Option Dimmer Knob
- Max Op. Temperature (°C) 50
- Feature: Quick Disconnect Yes
- Illumination Yes
- Color Technology Standard LED
- Physical Dimensions (LxWxH or DxH mm) 665.0 x 97.0 x 104.0
- Feature: Cascade Yes
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Connection Integral QD
- Environmental Rating IP40
- Feature: Chemical Resistant No
